Eaton 038805 Q18S1R key switch 2 positions

Your rating:
Average rating
product review for Eaton 038805 Q18S1R key switch 2 positions
( 4.6 / 5 ) 8 ratings

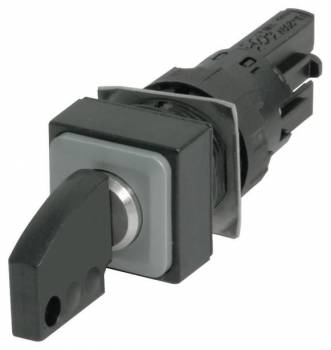

Eaton 038805
This image may differ from the desired article.
Eaton 038805Eaton 038805
-90% 34,96 EUR 364,32 EUR
( 41,60 EUR incl. VAT )
≈ £29.26  |  ≈ $38.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 5 pieces
1x Eaton 038805 Q18S1R key switch 2 positions
Datasheet:file_download Download
Lieske Part No.:566944
Mfg Part No: 038805
UPC/EAN: 4015080388050
Weight:0.123 kg
Type:Q18S1R
Graduated prices net
From piecesPrice per pieces
1033,91 EUR
2532,86 EUR
5031,81 EUR
7530,76 EUR

Product information for Eaton 038805:

The Eaton Q18S1R is a single key switch from the RMQ16 range, designed for use in industrial control systems. The device features a latching key actuation with two positions (I) and is designed for mounting in control panels with a front dimension of 18 x 18 mm. The key switch is black and offers an IP65 protection rating, which is dust-tight and protected against water jets from any direction – suitable for use in harsh environments, including outdoor applications. The device is supplied with a key, with a corresponding key available for each colour, enabling colour-coded access control.

Key switch

The Q18S1R serves as a mechanical control element for operating machines or systems. The key actuation enables secure and controlled activation, as operation is only possible with the correct key. The latching design ensures stable positioning in the two positions, preventing unintentional state changes. The front dimension of 18 x 18 mm fits standard mounting fields, enabling easy integration into existing control panels.

Applications

The device is intended for use in industrial plants, machine controls, and safety systems where controlled access authorization is required. The IP65 protection rating makes it particularly suitable for environments with increased contamination risk, humidity, or splashing water, such as those found in manufacturing, packaging industry, or outdoor use. The black colour variant is neutral and fits into most control panel designs.

Functions and equipment in detail

The Q18S1R is designed as a single unit and features a key actuation with two positions. The device is supplied with a key specific to the respective colour. The key actuation is latching, ensuring a secure position in each setting. The front dimension is 18 x 18 mm, standardizing the installation size. The device is supplied without a front ring, allowing direct mounting into the designated cutout. Connection to SmartWire-DT is not provided, meaning the device is not part of a digital fieldbus system but functions as a mechanical control element.

Technology explained simply

The IP65 protection rating means the device is fully protected against dust and resistant to water jets from any direction. This makes it suitable for use in humid or dusty environments. The 24 V voltage refers to the operating voltage of the device, required for the electrical actuation of internal contact elements. Certification according to IEC/EN 60947-5, UL 508, CSA-C22.2 No. 14-05 and CE confirms compliance with international safety and quality standards, particularly for use in industrial control systems.

Compatibility and accessories

To extend functionality, additional contact elements can be used. Suitable accessories include the E01 contact element (1 NO) and the E10 contact element (1 NC). These elements can be integrated into the device to transmit electrical signals upon actuation of the key switch. Combining these contact elements enables control of relays, switches, or other control components during plant operation.

Mounting and installation

Mounting is performed in a pre-fabricated mounting field with dimensions 18 x 18 mm. The device is supplied without a front ring, enabling direct installation into the cutout. Installation requires no additional tools or components, as the device is designed as a single unit.

Advantages in operation

The Q18S1R offers secure and reliable operation through key actuation, allowing access only to authorized users. The IP65 protection rating ensures high robustness against environmental influences, increasing service life and reliability in industrial use. The standardized front dimension of 18 x 18 mm simplifies integration into existing control panels. Certification to international standards ensures compliance with safety and quality requirements.

Features
International Protection (IP) codeIP65
Product colourBlack
CertificationIEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CE
Power
Voltage24 V


Product data sheet
Datasheet for Eaton 038805, EAN: 4015080388050

Questions & answers

What is the delivery time of Eaton 038805 Q18S1R key switch 2 positions ?

The article Eaton 038805 Q18S1R key switch 2 positions is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 038805 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 038805 Q18S1R key switch 2 positions always at the best possible price. We can give you a discount of 2% on Eaton 038805 Q18S1R key switch 2 positions if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 038805 Q18S1R key switch 2 positions we can offer you a price of 33,91 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
