DRAGINO · Sensor · LoRa · LoRaWAN Temperature & Humidity Sensor · LHT65S-EU868-E3

DRAGINO LHT65S-EU868-E3 Temperature Overview

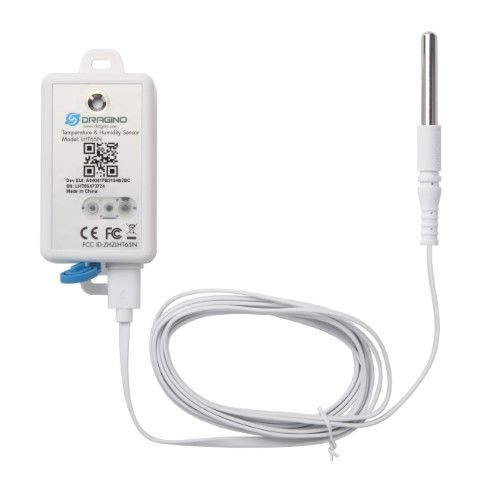

The Dragino LHT65S temperature and humidity sensor is a long range LoRaWAN sensor. It contains a built-in SHT20 temperature and humidity sensor and has an external sensor port for connecting external sensors such as temperature sensor, soil moisture sensor, tilt sensor, etc.
The LHT65S allows users to send data and achieve ultra-long ranges. It provides ultra-long range spread spectrum communication and high interference immunity with minimal power consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, etc. The LHT65S has a built-in 2400mAh non-rechargeable battery that can be used for more than 10 years*. The LHT65S is fully compatible with the LoRaWAN v1.0.2 protocol, it can work with the standard LoRaWAN gateway. The LHT65S has 3200 records with date and time, which can be retrieved with date and time for further analysis.

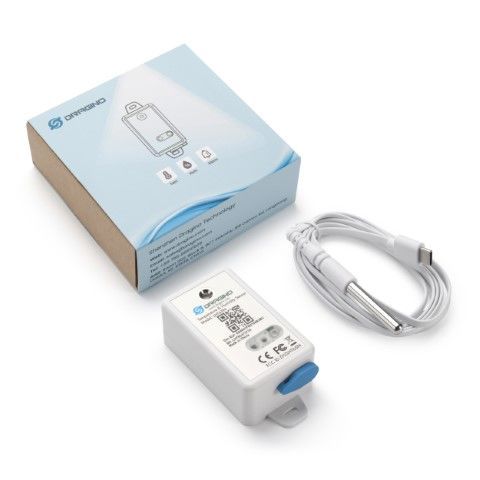

The external antenna allows the sensor to achieve better coverage than the LHT65N. FeaturesLoRaWAN Class A protocol Frequency bands: EU868 AT commands to change parameters Remote configuration parameters via LoRaWAN downlink Firmware upgrade possible via program port Built-in 2400mAh battery for more than 10 years of use. Built-in temperature and humidity sensor Optional external sensors Tri-color LED for status indication Data logging when network connectivity is interrupted ApplicationsWireless alarm and security systems Home and building automation Automatic meter reading Industrial monitoring and control Long-distance irrigation systems, etc. Scope of delivery1 x Dragino LHT65N-EU868-E1 humidity and temperature sensor 1 x temperature probe
