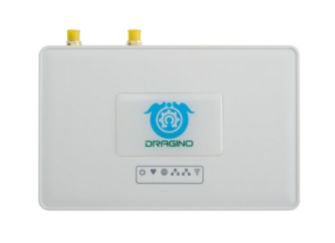

DRAGINO Gateway LoRa Indoor Gateway LG308-868 (Without 4G/LTE)

DRAGINO LG308-868 Indoor Gateway
LG308-868 (without 4G/LTE)
Overview
The LG308 is an open source LoRaWAN Pico Gateway. It allows LoRa wireless networks to be connected to an IP network via WiFi, Ethernet or 3G/4G cellular via an optional LTE module. LoRa Wireless allows users to send data and achieve extremely long ranges at low data rates.
The LG308 uses Semtech Packet Forwarder and is fully compatible with the LoRaWAN protocol. It includes an SX1301 LoRa concentrator and 2 x SX1257 providing 10 programmable parallel demodulation paths.
The LG308 comes with pre-configured standard LoRaWAN frequency bands that can be used for different countries. The user can also customize the frequency bands for use in their own LoRa network.
LG308 optionally has a built-in LoRaWAN server. System integrators can use it to integrate with their existing IoT service without setting up their own LoRaWAN server or using a third-party LoRaWAN service.
FeaturesOpen source system OpenWrt Managed via web GUI, SSH over LAN or WiFi Internet connection via LAN, WiFi, or 3G/4G via optional LTE module Emulates 49x LoRa demodulators LoRaWAN gateway 10 programmable parallel demodulation paths Area of applicationSmart buildings and home automation Logistics and Supply Chain Management Smart Metering Smart Agriculture Smart Cities Smart Factory Specifications
LoRa Specification1 x SX1301 + 2 x 1257 LoRa Tranceiver
General Specification10M/100M RJ45 Ports x 2 1 x 2.4G WiFi (802.11 bgn) 1 x USB Host Port 1 x Mini PCIe interface Power input: 12v, 1A

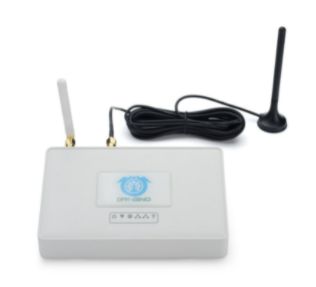

Cellular 4G LTE (optional) Quectel EC25 LTE module (Click the link to find the right model for your region) Micro SIM slot Internal 4G antenna + external 4G sticker Antenna. Up to 100Mbps downlink and 50Mbps uplink data rates Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage MIMO technology meets the data rate and connection security requirements in wireless modem communication systems
