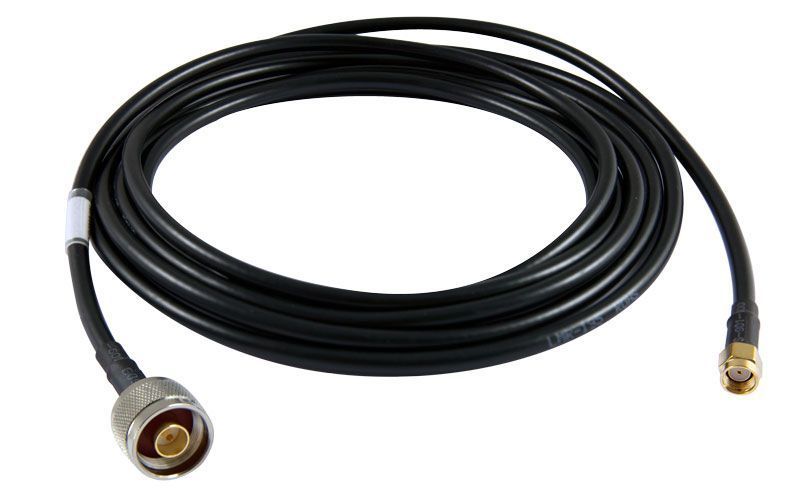

ALLNET antenna cable LMR-195 R-SMA(m) N-Type(m) 1000 cm
|
32,93 EUR |
|||||||||||
|
( 39,19 EUR incl. VAT ) ≈ £28.22 | ≈ $37.41 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 1788267 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ANT-CAB-RSMA-N-1000 | ||||||||||
| UPC/EAN: | 4038816154644 | ||||||||||
| Weight: | 1 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Allnet ANT-CAB-RSMA-N-1000:
ANT-CAB-RSMA-N-1000, R-SMA connector N-type connector
Length: 1000 cm
Attenuation at 2.4GHz: approx. 5.3 dB
Attenuation at 5.xGHz: approx. 8.5 dB
Inner conductor: Cu- Stranded wire, bare, diameter: 0.97 mm
Insulation: SPE, diameter: 2.67 mm
Outer conductor: aluminum foil
Cu braid: tinned, 85% optical coverage
Sheath: PUR, diameter 4.95 mm (+/- 0.2mm ), halogen-free
Color: black
Bending radius (without tensile load):
Installation, one-time - 15mm
multiple - 75mm
Temperature range: -40 to +85 degrees C
Length: 1000 cm
Attenuation at 2.4GHz: approx. 5.3 dB
Attenuation at 5.xGHz: approx. 8.5 dB
Inner conductor: Cu- Stranded wire, bare, diameter: 0.97 mm
Insulation: SPE, diameter: 2.67 mm
Outer conductor: aluminum foil
Cu braid: tinned, 85% optical coverage
Sheath: PUR, diameter 4.95 mm (+/- 0.2mm ), halogen-free
Color: black
Bending radius (without tensile load):
Installation, one-time - 15mm
multiple - 75mm
Temperature range: -40 to +85 degrees C
Questions & answers
What is the delivery time of ALLNET antenna cable LMR-195 R-SMA(m) N-Type(m) 1000 cm?
The article ALLNET antenna cable LMR-195 R-SMA(m) N-Type(m) 1000 cm is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ANT-CAB-RSMA-N-1000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET antenna cable LMR-195 R-SMA(m) N-Type(m) 1000 cm always at the best possible price. We can give you a discount of 2% on ALLNET antenna cable LMR-195 R-SMA(m) N-Type(m) 1000 cm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of ALLNET antenna cable LMR-195 R-SMA(m) N-Type(m) 1000 cm we can offer you a price of 31,70 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
