Dold 0066424 MK9054N.12/012 AC5-50V Tv=0-20S voltage relay AC/DC 80-230V Ta=0.1-20S

Your rating:
Average rating
product review for Dold 0066424 MK9054N.12/012 AC5-50V Tv=0-20S voltage relay AC/DC 80-230V Ta=0.1-20S
( 4.5 / 5 ) 6 ratings
Dold 0066424

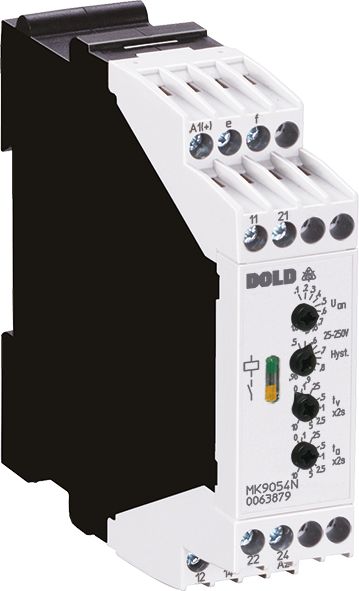

This image may differ from the desired article.
291,36 EUR
( 346,72 EUR incl. VAT )
≈ £243.58  |  ≈ $321.95
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0066424 MK9054N.12/012 AC5-50V Tv=0-20S voltage relay AC/DC 80-230V Ta=0.1-20S
Datasheet:file_download Download
Lieske Part No.:100218
Mfg Part No: 0066424
UPC/EAN: 4030641664244
Weight:0.195 kg
Type:MK9054N.12/012 AC5-50V Tv=0-20S
Graduated prices net
From piecesPrice per pieces
4278,25 EUR
8265,14 EUR
12252,03 EUR
16238,92 EUR

Product information for Dold 0066424:

The voltage relay MK9054N.12/012 AC5-50V Tv=0-20S from Dold is an undervoltage relay operating on the standby current principle, specifically designed for monitoring single-phase DC and AC power networks. It is used for continuous monitoring of the supply voltage to initiate timely measures in case of deviations from the preset value, for example by switching output contacts. Device settings are adjusted via rotary switches on the front panel, enabling simple and user-friendly configuration. The application is in industrial plants, where operational safety and the prevention of failures through preventive maintenance and early fault detection are crucial.

Applications
This relay is intended for use in industrial plants where voltage quality is critical for the operation of machines and systems. It monitors DC and AC voltages in the range of AC 5 to 50 V, with the devices calibrated for sinusoidal AC voltages in RMS value. Monitoring is performed by measuring the arithmetic mean of the rectified voltage. Applications include, for example, monitoring auxiliary power supplies, control systems, or drives, where a voltage interruption could cause damage or downtime.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts for switching operations. The switching delay is 0 to 20 seconds, allowing short-term voltage fluctuations to be ignored to avoid false tripping. The response delay ranges from 0.1 to 20 seconds and serves to delay activation after exceeding the threshold value. The auxiliary voltage is supplied in the range of AC/DC 80 to 230 V, with the auxiliary circuit being galvanically separated from the measurement circuit, providing higher safety. The start-up bypass activates only once upon applying the auxiliary voltage to avoid interfering with start-up processes.

Technology Explained Simply
The relay measures the voltage via terminals e and f and compares it with the set response threshold. If this value is undershot, the output contact is switched accordingly. The LED indicators signal operational readiness (green LED) and activation of the output relay (yellow LED). The response threshold setting is done via rotary switches on the front, and the hysteresis (reset value) can also be adjusted. The dependence of hysteresis on the set value must be considered to ensure reliable switching function. The maximum rated voltage for the output contacts is AC 500 V and DC 450 V, with the contacts designed for use in enclosures.

Compatibility and Accessories
The device is designed for use in enclosures and has a width of 22.5 mm, making it suitable for standard control panels. It is equipped with a fixed terminal block with screw terminals, ensuring a secure and durable connection. Optional plug-in terminal blocks are available, enabling quick device replacement. The devices comply with standards IEC/EN 60255-1 and IEC/EN 60947-1, confirming compliance with safety and functional requirements for electrical equipment. The CCC certification is available for this variant.

Mounting and Installation
Mounting is done in an enclosure, with the width of 22.5 mm determining the mounting height. The connection terminals are clearly labeled: A1, A2 for auxiliary voltage, e, f for voltage measurement input, 11, 12, 14 and 21, 22, 24 for the two changeover contacts. When using a remote potentiometer on terminals Z1, Z2, Z3, note that the measurement circuit and remote potentiometer are not galvanically separated. Therefore, terminal e should be connected to N, – or GND to avoid unwanted voltage on the remote potentiometer.

Operational Advantages
Continuous voltage monitoring enables preventive maintenance, helping to avoid failures and damage to electrical systems. Faster fault localization via LED indicators and precise switching function increase operational safety. The high overload capacity and measurement frequency up to 5 kHz ensure robust and reliable operation even under difficult conditions. The galvanic separation between auxiliary and measurement circuits enhances safety and prevents disturbances in the measurement circuit caused by disturbances in the auxiliary circuit.

Technical data
1- / 3-phase1
Enclosure designSwitch cabinet
Nominal voltage max.AC 500 V, DC 450 V
Output contacts2 C/O contacts
Width22,5 mm
TypeMK 9054N
Variant
Auxiliary voltageAC/DC 80 - 230 V
Contact equipping2 changeover contacts
Measuring rangeAC 5 - 50 V
Operate delay0,1 - 20 s
Switching delay0 - 20 s
Terminal typefixed terminal block with screw terminal
Approvals and MarkingsCCC
VariantUndervoltage relay. Closed circuit operation


Product data sheet
Datasheet for Dold 0066424, EAN: 4030641664244

Questions & answers

What is the delivery time of Dold 0066424 MK9054N.12/012 AC5-50V Tv=0-20S voltage relay AC/DC 80-230V Ta=0.1-20S?

The article Dold 0066424 MK9054N.12/012 AC5-50V Tv=0-20S voltage relay AC/DC 80-230V Ta=0.1-20S is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0066424 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0066424 MK9054N.12/012 AC5-50V Tv=0-20S voltage relay AC/DC 80-230V Ta=0.1-20S always at the best possible price. We can give you a discount of 2% on Dold 0066424 MK9054N.12/012 AC5-50V Tv=0-20S voltage relay AC/DC 80-230V Ta=0.1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0066424 MK9054N.12/012 AC5-50V Tv=0-20S voltage relay AC/DC 80-230V Ta=0.1-20S we can offer you a price of 278,25 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
