Dold 0063630
This image may differ from the desired article.
313,93 EUR
( 373,58 EUR incl. VAT )
≈ £262.76  |  ≈ $345.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline

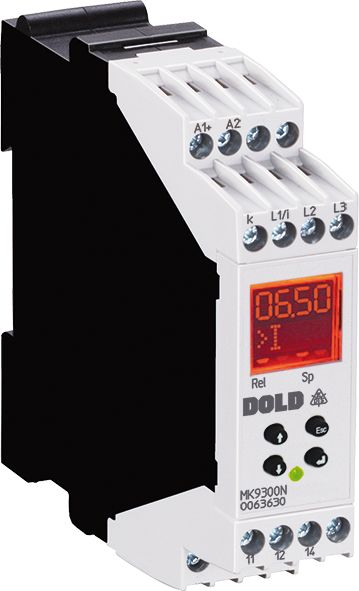

1x Dold 0063630 MK9300N.11/022 3AC24-400V AC12A multifunction measuring relay DC24V
Datasheet:file_download Download
Lieske Part No.:1329145
Mfg Part No: 0063630
UPC/EAN: 4030641636302
Weight:0.13 kg
Type:MK9300N.11/022 3AC20-440V AC12A
Graduated prices net
From piecesPrice per pieces
4302,16 EUR
8290,39 EUR
12278,61 EUR
16266,84 EUR

Product information for Dold 0063630:

The Dold MK9300N.11/022 is a multifunctional measuring relay of the VARIMETER PRO series, designed for monitoring electrical parameters in industrial installations. It is used for continuous monitoring of voltage, current, frequency, phase sequence, phase failure, asymmetry, active, reactive and apparent power, as well as the phase angle cos ϕ. The device is designed for use in enclosures and enables simultaneous monitoring of up to nine different parameters, with individual functions being independently configurable. The auxiliary voltage is DC 24 V, and the relay features a changeover contact as output contact. Measurement is performed in the range 3 AC 24 to 400 V, with a measuring current up to AC 12 A. The width of 22.5 mm allows space-saving installation in standard enclosures.

Applications
This measuring relay is suitable for monitoring single- and three-phase electrical consumers, particularly in installations with motor loads, where symmetrical phase loading is common. It is frequently used in emergency power supplies, voltage-dependent switching operations, and for motor protection in case of phase faults. Monitoring of mobile consumers and transformer protection under unbalanced loading are also typical applications. The devices are designed for use in industrial environments where high operational reliability and availability are required.

Functions and Equipment in Detail
The device offers minimum, maximum, or window monitoring for voltage and current, with integrated response delay and an adjustable hysteresis of 0.2 to 50 % of the response value. The start-up bypass time prevents unwanted tripping during commissioning. Fault diagnosis is performed via an LCD display showing current measurement values, and an LED display indicating operating status: green LED for present auxiliary voltage, red LED (flashing) for overload in the current path, and orange LED in input mode. A fault memory enables tracking of tripping events. The relay function can be switched between operating and resting current, allowing the output logic to be adapted to the requirements of the installation.

Technology Explained Simply
Measurement is performed via fixed screw terminals, ensuring a secure and durable connection. The measuring voltage is connected to terminals L1/L2, with a minimum voltage of 20 V required to ensure proper function. For single-phase operation, terminals L2 and L3 must be bridged. The output relays are designed as changeover contacts, enabling flexible wiring. The monitoring functions are independently adjustable, allowing, for example, overvoltage monitoring with resting current principle or undervoltage monitoring with operating current principle to be configured. The devices comply with the standard EN 60255-1 and are certified with DNV approval.

Compatibility and Accessories
The MK9300N is part of the VARIMETER PRO series and can be combined with other devices in this series, particularly with the MH 9300, which offers two relay outputs. Optional plug-in terminal blocks are available, enabling easy replacement of the devices. The terminal type is fixed screw terminals, ensuring a robust connection. The devices are designed for use in enclosures and can be mounted in standard enclosures with a width of 22.5 mm.

Mounting and Installation
Mounting is performed in enclosures using the designated mounting elements. The connection terminals are designed for secure connections, with fixed screw terminals ensuring a durable connection. The terminal assignment is clearly defined: auxiliary voltage is connected to A1/A2, measuring voltage to L1/L2 (for three-phase operation) or L1 (for single-phase operation, with L2/L3 to be bridged). The output relays are connected to terminals 11, 12, and 14. Parameterization is performed via the device's menu structure, ensuring intuitive operation.

Operational Advantages
Simultaneous monitoring of multiple parameters increases operational safety. Early detection of irregularities enables preventive maintenance and prevents costly damage. Reduced wiring and compact design lower installation costs. Integrated fault diagnosis and fault memory simplify troubleshooting and maintenance. The devices are designed for industrial environments and offer high reliability during continuous operation.

Technical data
1- / 3-phase1, 3
Enclosure designSwitch cabinet
Measuring range max.400 V
Output contacts1 C/O contact
Standard measuring range3 AC 24 - 400 V
Width22,5 mm
TypeMK 9300N
Operate delayYes
Variant
Auxiliary voltageDC 24 V
Contact equipping1 changeover contact
Measuring currentAC 12 A
Measuring voltage3AC 24 - 400 V
Terminal typescrew terminal fixed
Approvals and MarkingsDNV


Product data sheet
Datasheet for Dold 0063630, EAN: 4030641636302

Questions & answers

What is the delivery time of Dold 0063630 MK9300N.11/022 3AC24-400V AC12A multifunction measuring relay DC24V ?

The article Dold 0063630 MK9300N.11/022 3AC24-400V AC12A multifunction measuring relay DC24V is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0063630 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0063630 MK9300N.11/022 3AC24-400V AC12A multifunction measuring relay DC24V always at the best possible price. We can give you a discount of 2% on Dold 0063630 MK9300N.11/022 3AC24-400V AC12A multifunction measuring relay DC24V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0063630 MK9300N.11/022 3AC24-400V AC12A multifunction measuring relay DC24V we can offer you a price of 302,16 EUR per piece. The more you buy, the cheaper the article will be.
