Dold 0063176 MK9053N.12/010 AC,5-5A AC/DC80-230V current relay Tv=0-20s

Your rating:
Average rating
product review for Dold 0063176 MK9053N.12/010 AC,5-5A AC/DC80-230V current relay Tv=0-20s
( 4.3 / 5 ) 6 ratings
Dold 0063176
This image may differ from the desired article.
291,36 EUR
( 346,72 EUR incl. VAT )
≈ £243.87  |  ≈ $320.20
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0063176 MK9053N.12/010 AC,5-5A AC/DC80-230V current relay Tv=0-20s
Datasheet:file_download Download
Lieske Part No.:1320395
Mfg Part No: 0063176
UPC/EAN: 4030641631765
Weight:0.195 kg
Type:MK9053N.12/010 AC,5-5A AC/DC80-230V
Graduated prices net
From piecesPrice per pieces
4289,17 EUR
8286,99 EUR
12284,80 EUR
16282,62 EUR

Product information for Dold 0063176:

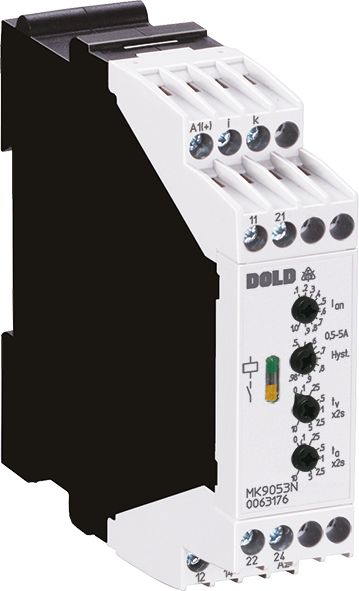

The Dold current relay MK9053N.12/010 AC,5-5A AC/DC80-230V is an overcurrent relay of the VARIMETER series, designed for monitoring single-phase DC and AC power networks. It operates on the principle of operating current and is used for early detection of current overloads, to prevent failures in electrical systems and enhance operational safety. The device setting is adjusted via rotary switches on the front panel, ensuring simple and user-friendly configuration. The device is designed for use in enclosures and has a width of 22.5 mm, making it suitable for standard control panels.

Applications
This relay is intended for monitoring the current consumption of electrical loads in industrial and railway applications. It is particularly suitable for systems where preventive maintenance and rapid fault localization are important to ensure productivity and operational safety. The galvanic isolation between auxiliary circuit and measurement circuit increases safety during installation and use.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, which can be used to control auxiliary circuits. The measurement ranges cover AC 0.5 to 5 A, where the measured current is arithmetically averaged and rectified. The devices are calibrated for sinusoidal AC currents in RMS value. The setting of the pickup value and hysteresis is adjusted via rotary switches on the front of the device. The start-up bypass allows short-term current peaks, such as those occurring during motor start-up, to be ignored, preventing unwanted trips. The switching delay ranges from 0 to 20 seconds and delays switching after exceeding the set threshold.

Technology Explained Simply
The relay's measurement frequency reaches up to 5 kHz, enabling precise monitoring even with high-frequency loads. The auxiliary voltage is supplied in the range of AC/DC 80 to 230 V, allowing flexible use in various network voltages. The connection terminals are designed as fixed screw terminals, ensuring a secure and durable connection. The LED indicators signal operational readiness (green LED) and activation of the output relay (yellow LED), enabling visual monitoring of the operating status.

Compatibility and Accessories
The relay is manufactured in accordance with standards IEC/EN 60255-1 and IEC/EN 60947-1, ensuring compliance with international standards for measuring and switching devices. It is designed for use in single-phase systems and can be used as either an overcurrent or undercurrent relay, with hysteresis dependent on the set pickup value. The CCC certification is specified for this variant. Optional variants with remote potentiometer for setting the pickup value or with plug-in connection blocks are available, but are not part of this specific configuration.

Mounting and Installation
Mounting is performed in enclosures, with the width of 22.5 mm ensuring compatibility with standard control panels. Terminal markings are assigned as A1/A2 for auxiliary voltage, i/k for current input, and 11/12/14 as well as 21/22/24 for the two changeover contacts. The connection terminals are designed for secure mechanical connections. When using a remote potentiometer, note that the measurement circuit and remote potentiometer are not galvanically isolated, so the remote potentiometer must be connected earth-free and potential-free.

Operational Advantages
The combination of precise measurement, adjustable delays, and visual indication enables reliable and low-maintenance operational monitoring. The ability to adjust start-up bypass and switching delay reduces unnecessary trips and increases the availability of the monitored system. The galvanic isolation between measurement and auxiliary circuit enhances safety during installation and use.

Technical data
1- / 3-phase1
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Width22,5 mm
TypeMK 9053N
Operate delayYes
Variant
Auxiliary voltageAC/DC 80 - 230 V
Contact equipping2 changeover contacts
Measuring rangeAC 0,5 - 5 A
Start up delay0,1 - 20 s
Switching delay0 - 20 s
Terminal typescrew terminal fixed
Approvals and MarkingsCCC
VariantOvercurrent relay, energized on trip


Product data sheet
Datasheet for Dold 0063176, EAN: 4030641631765
