Dold 0063103 RP9800.12 3/N AC315/182V tw=90S voltage/frequency monitor

Your rating:
Average rating
product review for Dold 0063103 RP9800.12 3/N AC315/182V tw=90S voltage/frequency monitor
( 4.4 / 5 ) 28 ratings
Dold 0063103
This image may differ from the desired article.
Dold 0063103Dold 0063103
319,22 EUR
( 379,87 EUR incl. VAT )
≈ £267.19  |  ≈ $350.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0063103 RP9800.12 3/N AC315/182V tw=90S voltage/frequency monitor
Datasheet:file_download Download
Lieske Part No.:407445
Mfg Part No: 0063103
UPC/EAN: 4030641631031
Weight:0.2 kg
Type:RP 9800.12
Graduated prices net
From piecesPrice per pieces
4316,83 EUR
8314,43 EUR
12312,04 EUR
16309,64 EUR

Product information for Dold 0063103:

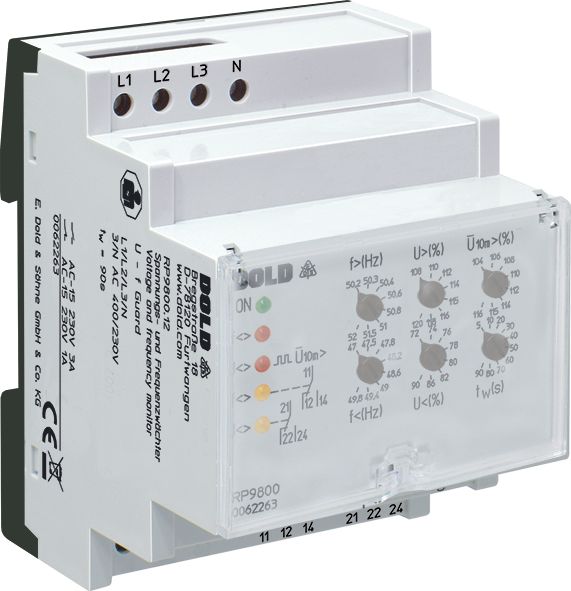

The voltage and frequency monitor RP 9800.12 from Dold is an industrial monitoring regulator for self-generation plants operated on the low-voltage grid. The device ensures safe disconnection of the plant from the public grid in case of unauthorized voltage or frequency values, particularly for plants with a power output exceeding 30 kVA according to VDEW guidelines. It is designed for use in installation distributors and features a width of 70 mm. Monitoring is performed 3-phase against the neutral conductor (N), where voltage values are measured individually on each phase and the maximum value (in case of overvoltage) and minimum value (in case of undervoltage) are evaluated. Frequency measurement is performed 1-phase in phase L1, also referenced to the neutral conductor. The measurement is calibrated to the RMS value, ensuring precise and reliable evaluation.

Applications
This device is primarily designed for monitoring self-generation plants such as combined heat and power plants, photovoltaic systems, or diesel generators connected to the public low-voltage grid. It enables automatic disconnection in case of voltage or frequency deviations to prevent grid damage or hazards. For plants under 30 kVA, it can be used as an alternative to a disconnection point, provided a manual disconnection point is available. The application is in industrial and commercial environments where reliable grid monitoring is required.

Functions and Equipment in Detail
When the set limit values are exceeded or undershot, the relays switch to the rest position, causing the plant to be disconnected from the grid. Reconnection occurs after an adjustable delay of 90 seconds, once the values are again within the permissible range. The limit values are adjusted via detent rotary switches, allowing simple and precise adaptation to specific operating conditions. All set values are simultaneously visible, facilitating control and maintenance. Tamper protection is ensured by a sealable transparent cover.

Technology Explained Simply
Voltage monitoring measures the voltage values of the three phases against the neutral conductor. In case of overvoltage (e.g., above 120% of nominal voltage) or undervoltage (e.g., below 72%), the corresponding relay is triggered. Additionally, an average voltage value over a period of 10 minutes is calculated to detect slow voltage increases that would not be captured by short-term fluctuations. The response delay ensures that short-term fluctuations do not lead to unwanted disconnection.

Compatibility and Accessories
The device is designed for a grid voltage of 3/N AC 315/182 V and requires connection of the neutral conductor for the RP 9800.12 variant. It operates without auxiliary voltage, simplifying installation. Indication is provided via LEDs: a green LED indicates the presence of auxiliary voltage, red LEDs signal voltage or frequency deviations, and yellow LEDs indicate the status of the output relays. Indication of 10-minute average voltage exceedance is shown by flashing of the red LED for voltage. The set values for voltage and frequency deviation are adjustable via rotary switches, with voltage deviation specified as a percentage of nominal voltage (e.g., 108% to 120%) and frequency in Hz (e.g., 50.2 Hz to 52 Hz).

Mounting and Installation
The voltage and frequency monitor is installed in an installation distributor. The width is 70 mm, enabling standard mounting in enclosures. The connection terminals are designed for connecting the three phase conductors and the neutral conductor. For the RP 9800.12 variant, the neutral conductor must be connected. The limit values are adjusted on-site via rotary switches, with the values directly visible. The sealable cover protects against unauthorized changes to the settings.

Advantages in Operation
The high measurement accuracy and separate output relays for voltage and frequency ensure reliable and precise response to grid disturbances. The adjustable reconnection delay of 90 seconds prevents unwanted rapid reconnections. Clear LED indication enables quick error diagnosis. Simple operation via rotary switches and visible set values reduces maintenance effort. The device complies with standards DIN EN 60255-1 and DIN EN 60947-1, ensuring compliance with safety and functional requirements.

Technical data
1- / 3-phase3
Auxiliary voltageWithout
Enclosure designDistribution board
Output contacts2 C/O contacts
Width70 mm
TypeRP 9800
Operate delayYes
Variant
Contact equipping2 changeover contacts
Supply voltage3/N AC 315/182 V
Time delay90 s


Product data sheet
Datasheet for Dold 0063103, EAN: 4030641631031

Questions & answers

What is the delivery time of Dold 0063103 RP9800.12 3/N AC315/182V tw=90S voltage/frequency monitor ?

The article Dold 0063103 RP9800.12 3/N AC315/182V tw=90S voltage/frequency monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0063103 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0063103 RP9800.12 3/N AC315/182V tw=90S voltage/frequency monitor always at the best possible price. We can give you a discount of 2% on Dold 0063103 RP9800.12 3/N AC315/182V tw=90S voltage/frequency monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0063103 RP9800.12 3/N AC315/182V tw=90S voltage/frequency monitor we can offer you a price of 316,83 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
