Dold 0062576 IK9144.11/200 DC24V 0.1-20S standstill monitor
|
160,65 EUR |
|||||||||||
|
( 191,17 EUR incl. VAT ) ≈ £134.46 | ≈ $176.55 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1321048 | ||||||||||
| Mfg Part No: | 0062576 | ||||||||||
| UPC/EAN: | 4030641625764 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | IK9144.11/200 DC24V 0,1-20S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0062576:

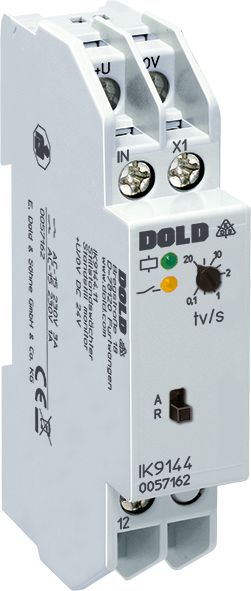

Stillstand monitoring
The device is used for continuous monitoring of pulse sequences generated by mechanical or electronic sensors. It detects blockages, standstills, or pulse failure, for example, in conveyor belts, drive shafts, or flow meters. The function is based on evaluating the time between two consecutive pulses at input IN. If this time exceeds the set monitoring time range, the output contact is switched accordingly.
Functions and equipment in detail
The stillstand monitor features a universal input configurable for various sensor types, including PNP, NPN, 2-wire sensors, contacts, and voltage signals. A special variant allows connection to NAMUR sensors. The monitoring time is adjustable in the range of 0.1 to 20 seconds. The device supports two operating modes: operating current principle (slide switch in position A") and resting current principle (position "R), whereby the state of the output relay changes depending on the operating mode when pulses are missing. The LED indicators signal the presence of auxiliary voltage, detection of sensor pulses, and the position of the output relay.
Technology explained clearly
The pulse sequence is detected at input IN. In the operating current principle logic, the relay is de-energized at operating voltage (contacts open). If no pulse is detected within the set time tᵥ, the relay energizes (contacts close). With a new pulse, the relay de-energizes immediately, and time measurement restarts. In the resting current principle logic, the relay is normally energized (contacts closed). If pulses are missing within time tᵥ, the relay de-energizes (contacts open). A new pulse reactivates it. The maximum input frequency is 5 kHz, equivalent to 300,000 pulses per minute.
Compatibility and accessories
The device is suitable for connection to sensors specified according to IEC/EN 60947-5-2, including SKF sensor bearings. It is configured for use with NAMUR sensors. The auxiliary voltage is DC 24 V. The device module is designed in I-form, with a depth of 59 mm and bottom-mounted connection terminals, suitable for installation and industrial distributors according to DIN 43880. The width is 17.5 mm.
Mounting and installation
Mounting is done in installation distributors or industrial distributors according to DIN 43880. The connection terminals are located at the bottom. The devices are intended for use in enclosures, with the I-form designed for shallow distributors. Connection designations include supply voltage (U+, 0V), sensor connection (X1, IN), and changeover contact (11, 12, 14). The LED indicators support diagnosis and status monitoring during operation.
Advantages in operation
The simple operation and clear adjustment of the monitoring time enable quick commissioning. The universal input control increases flexibility when integrating various sensors. The LED indicators provide visual feedback on operating status, facilitating maintenance and troubleshooting. The device complies with the standard IEC/EN 60255-1 and is designed for use in industrial environments where reliability and fast response to faults are required.
| Technical data | |
| Classification | Stillstandsüberwachung |
| Enclosure design | Distribution board |
| Measuring range max. | 300000 IPM |
| Output contacts | 1 C/O contact |
| Width | 17,5 mm |
| Type | IK 9144 |
| Variant | |
| Auxiliary voltage | DC 24 V |
| Contact equipping | 1 changeover contact |
| Time range | 0,1 - 20 s |
| Variant | Input for NAMUR sensors |
Questions & answers
What is the delivery time of Dold 0062576 IK9144.11/200 DC24V 0.1-20S standstill monitor ?
The article Dold 0062576 IK9144.11/200 DC24V 0.1-20S standstill monitor is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0062576 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0062576 IK9144.11/200 DC24V 0.1-20S standstill monitor always at the best possible price. We can give you a discount of 2% on Dold 0062576 IK9144.11/200 DC24V 0.1-20S standstill monitor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0062576 IK9144.11/200 DC24V 0.1-20S standstill monitor we can offer you a price of 154,63 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
