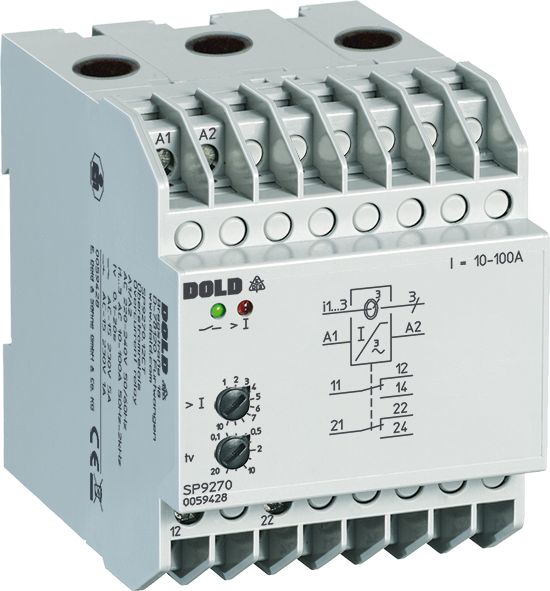

Dold 0062412 SP9270.12CT AC220-240V 7.5-75A overcurrent relay Tv=0.1-20 s

Your rating:
Average rating
product review for Dold 0062412 SP9270.12CT AC220-240V 7.5-75A overcurrent relay Tv=0.1-20 s
( 4.5 / 5 ) 27 ratings
Dold 0062412
This image may differ from the desired article.
516,01 EUR
( 614,05 EUR incl. VAT )
≈ £431.90  |  ≈ $567.09
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0062412 SP9270.12CT AC220-240V 7.5-75A overcurrent relay Tv=0.1-20 s
Datasheet:file_download Download
Lieske Part No.:1320775
Mfg Part No: 0062412
UPC/EAN: 4030641624125
Weight:0.224 kg
Type:SP9270.12CT AC220-240V 7,5-75A
Graduated prices net
From piecesPrice per pieces
3512,14 EUR
6508,27 EUR
9504,40 EUR
12500,53 EUR

Product information for Dold 0062412:

The Dold SP9270.12CT is a 3-phase current relay for monitoring currents in alternating and rotating current networks. It is used for overcurrent monitoring and is employed in industrial enclosures where precise and reliable current monitoring is required. The device operates on the zero-current principle, in which the output relay is not activated in the event of a fault, enabling clear signalling of operating states. The auxiliary voltage is AC 220–240 V, and the measurement ranges are between 7.5 and 75 A. The time delay is adjustable and ranges from 0.1 to 20 seconds, allowing short-term current peaks to be taken into account or ignored.

Applications
This relay is suitable for use in industrial plants, such as in manufacturing automation, power supply systems, or machine control systems. It monitors current consumption in 3-phase networks and responds when the set switching point is exceeded. The galvanic isolation between the auxiliary circuit and the measurement circuit ensures high safety and prevents interference in the control circuit. The width of 70 mm and the enclosure-compatible design make it ideal for installation in standard control panels.

Functions and Features in Detail
The device features 2 changeover contacts as output contacts, which can be used to control auxiliary relays, signal indicators, or switching operations. The pickup value is adjustable, allowing the relay to be flexibly adapted to different loads. The hysteresis is fixed at approximately 4 %, ensuring stable switching behaviour even with minor current fluctuations. LED indicators signal the operating state: a green LED indicates that the current is within the specified limits, while a red LED indicates an overcurrent condition. The adjustable time delay allows for differentiated response to short-term load peaks.

Technology Explained Simply
The SP9270.12CT operates with an integrated current transformer, which draws the measurement current from the main circuit. Measurement is performed in the range of 7.5 to 75 A, with the pickup value adjusted via a bridge at terminals 11, 12, and 14. The auxiliary voltage is supplied via terminals A1 and A2. The output contacts (Rel. 1 and Rel. 2) are designed as changeover contacts and enable control of external switching devices. The zero-current principle means that the output relay is energized in the normal state and de-energized in the event of a fault (overcurrent), enabling clear state indication.

Compatibility and Accessories
The device is designed for use in enclosures and complies with the standard IEC/EN 60255-1. It is compatible with other devices from the SP- and IP-series, which are also used in 3-phase applications. The terminal markings and wiring diagrams in the datasheet allow for unambiguous wiring. The galvanic isolation between the measurement and auxiliary circuits is a key safety feature, especially when integrating into existing control systems.

Mounting and Installation
Mounting is carried out in enclosures using a mounting plate and cable duct. The connection terminals are located at the top, enabling easy wiring. Wiring is performed according to the diagrams in the datasheet, with terminals i1, i2, i3 used for current measurement and A1, A2 for auxiliary voltage.

Operational Advantages
The SP9270.12CT offers high reliability due to galvanic isolation and adjustable time delay. The LED indicators allow for quick visual state monitoring. The adjustable parameters (pickup value, time delay) make the device universally applicable. The enclosure-compatible design and width of 70 mm fit standard control panels. The zero-current principle ensures clear fault indication, as the relay is de-energized in the event of a fault.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Width70 mm
TypeSP 9270CT
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping2 changeover contacts
Measuring range7,5 - 75 A
Time delay0,1 - 20 s
Variant3-phase current relay with built in CT. De-energized on trip


Product data sheet
Datasheet for Dold 0062412, EAN: 4030641624125

Questions & answers

What is the delivery time of Dold 0062412 SP9270.12CT AC220-240V 7.5-75A overcurrent relay Tv=0.1-20 s ?

The article Dold 0062412 SP9270.12CT AC220-240V 7.5-75A overcurrent relay Tv=0.1-20 s is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0062412 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0062412 SP9270.12CT AC220-240V 7.5-75A overcurrent relay Tv=0.1-20 s always at the best possible price. We can give you a discount of 2% on Dold 0062412 SP9270.12CT AC220-240V 7.5-75A overcurrent relay Tv=0.1-20 s if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0062412 SP9270.12CT AC220-240V 7.5-75A overcurrent relay Tv=0.1-20 s we can offer you a price of 512,14 EUR per piece. The more you buy, the cheaper the article will be.
