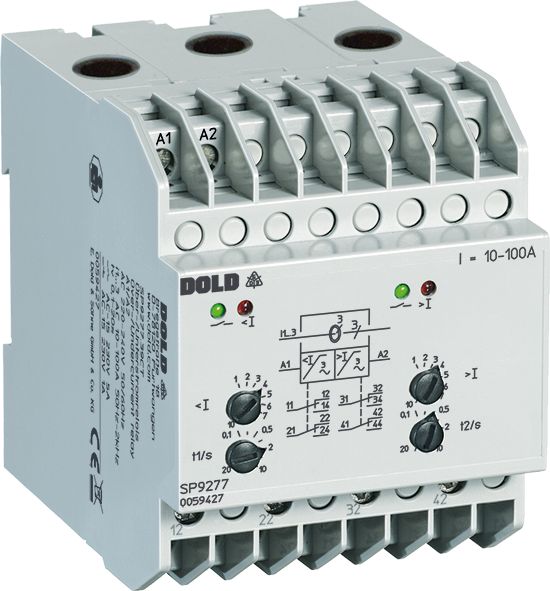

Dold 0062074 SP9277.39CT AC220-240V 5-50A under-overcurrent relay

Your rating:
Average rating
product review for Dold 0062074 SP9277.39CT AC220-240V 5-50A under-overcurrent relay
( 4.6 / 5 ) 10 ratings
Dold 0062074
This image may differ from the desired article.
548,56 EUR
( 652,79 EUR incl. VAT )
≈ £459.14  |  ≈ $602.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0062074 SP9277.39CT AC220-240V 5-50A under-overcurrent relay
Datasheet:file_download Download
Lieske Part No.:1319814
Mfg Part No: 0062074
UPC/EAN: 4030641620745
Weight:0.302 kg
Type:SP9277.39CT AC220-240V 5-50A
Graduated prices net
From piecesPrice per pieces
3544,45 EUR
6540,33 EUR
9536,22 EUR
12532,10 EUR

Product information for Dold 0062074:

The Dold SP9277.39CT is a 3-phase current relay for monitoring over- and under-current in alternating and rotating current networks. It is used for continuous monitoring of electrical currents in industrial installations, particularly in enclosures, and responds to deviations from the set switching point with a defined time delay. The device operates on the residual current principle, in which the output relays are not activated in the event of a fault, ensuring safe disconnection during malfunctions. The auxiliary voltage is AC 220–240 V, and the relay is equipped with an integrated current transformer, covering measurement ranges from 5 to 50 A.

Applications
This relay is designed for use in industrial and railway applications where reliable current monitoring is required. It is suitable for monitoring motors, transformer installations, lighting systems, and other electrical loads where sudden current increases or drops can be critical. The 3-phase design enables simultaneous monitoring of all phases in a three-phase system, which is important for the safety and stability of installations.

Functions and Equipment in Detail
The device features two independent output relays, each with 2 changeover contacts, intended for signaling over- and under-current conditions. The hysteresis is fixed at approximately 4% to prevent unwanted switching operations due to minor fluctuations. The time delay can be adjusted between 0.1 and 20 seconds to compensate for short-term current peaks or to ignore them if necessary.

Technology Explained Simply
The integrated current transformer allows measurement of the load current without direct connection to the main current circuit. The measurement circuit is galvanically separated from the auxiliary circuit, ensuring high safety and isolation. The LED indicators signal the operating status: a green LED indicates normal operation, a red LED for I max indicates over-current, and a red LED for I min indicates under-current. The indication is independent of the operating mode, allowing the status to be visually checked at any time.

Compatibility and Accessories
The relay is designed for mounting in enclosures and can be installed either on a DIN rail or via screw mounting. The width is 70 mm, making it suitable for standard enclosure designs. It is part of the VARIMETER series from Dold and can be combined with other devices in this series, particularly models from the IP and SP series, which are also 3-phase and equipped with an integrated current transformer. The measurement ranges are adjustable via bridges on terminals Z1/Z2, Z3/Z4, enabling flexible adaptation to different loads.

Mounting and Installation
Mounting is carried out in an enclosure, with the connection terminals located at the top. The auxiliary voltage is connected to terminals A1/A2, and the measurement circuit is connected via terminals i1/k1, i2/k2, i3/k3. The output relays are accessible via contact terminals 11–14, 21–24, 31–34, 41–44. The settings for the measurement range and time delay are adjusted via the corresponding bridges and rotary controls on the device. Installation requires no additional tools, as the connections are standardized.

Advantages in Operation
The SP9277.39CT offers high reliability through galvanic separation between the measurement and auxiliary circuits, as well as through the residual current principle. The separate output relays for over- and under-current enable precise response to different fault conditions. The LED indicators allow for quick visual fault detection. The adjustable time delay prevents false alarms due to short-term load fluctuations. The device complies with the standard IEC/EN 60255-1 and is therefore suitable for use in industrial environments.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Output contacts2 x 2 C/O contacts
Width70 mm
TypeSP 9277CT
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping2 x 2 changeover contacts
Measuring range5 - 50 A
Time delay0,1 - 20 s
Variant3-phase current relay with built in CT. De-energized on trip


Product data sheet
Datasheet for Dold 0062074, EAN: 4030641620745

Questions & answers

What is the delivery time of Dold 0062074 SP9277.39CT AC220-240V 5-50A under-overcurrent relay ?

The article Dold 0062074 SP9277.39CT AC220-240V 5-50A under-overcurrent relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0062074 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0062074 SP9277.39CT AC220-240V 5-50A under-overcurrent relay always at the best possible price. We can give you a discount of 2% on Dold 0062074 SP9277.39CT AC220-240V 5-50A under-overcurrent relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0062074 SP9277.39CT AC220-240V 5-50A under-overcurrent relay we can offer you a price of 544,45 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
