Dold 0062073 MK7830N.82 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h

Your rating:
Average rating
product review for Dold 0062073 MK7830N.82 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h
( 4.5 / 5 ) 35 ratings

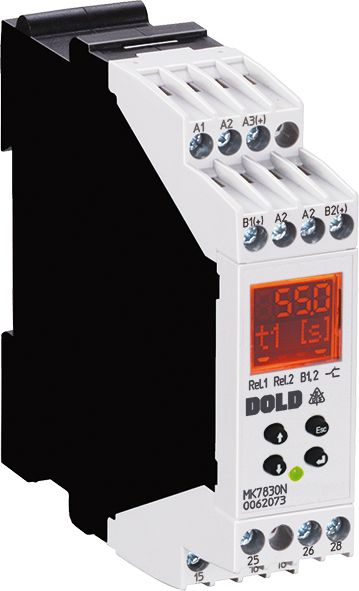

Dold 0062073
This image may differ from the desired article.
214,95 EUR
( 255,79 EUR incl. VAT )
≈ £179.91  |  ≈ $236.23
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0062073 MK7830N.82 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h
Datasheet:file_download Download
Lieske Part No.:1320396
Mfg Part No: 0062073
UPC/EAN: 4030641620738
Weight:0.15 kg
Type:MK7830N.82 AC/DC24V+AC230V
Graduated prices net
From piecesPrice per pieces
5206,89 EUR
10198,83 EUR
15190,77 EUR
20182,71 EUR

Product information for Dold 0062073:

The Dold MK7830N.82 AC/DC24V+AC230V is a digital multifunction timer relay for industrial control applications. It combines two independently configurable timer relays in one housing with a width of 22.5 mm, reducing the space requirement in the enclosure. The device is designed for use in enclosures and is suitable for time-controlled processes in automation technology. The rated voltage includes two operating voltages: AC/DC 24 V and AC 230 V, enabling flexible use in various installations.

Applications
This timer relay is designed for applications in industrial automation where time-controlled switching operations are required. It can be used, for example, to control pumps, motors, lighting systems, or in maintenance and service processes, where it can replace multiple different time functions in a single device. The digital setting allows precise timing sequences that can be adapted to specific requirements.

Functions and Equipment in Detail
Each of the two output relays can be configured independently. The available time functions include on-delay, off-delay, on-pulse, off-pulse, impulse generator, clock generator, pulse converter, and combinations thereof. The time ranges are separately adjustable and range from 0.02 seconds to 9999 hours. The functions can be set via an LCD display and buttons. The display alternates between the two relays and shows either the set values or the remaining time, with the latter mode only being activatable if at least one time setting is ≥ 1 second.

Technology Explained Simply
The device operates according to the standard IEC/EN 61812-1, which applies to timer relays in industry. The digital control enables precise and reproducible time control. Each of the two output relays is equipped with a changeover contact, resulting in a total of 2 changeover contacts. The contacts are fitted with fixed screw terminals, ensuring a secure connection. The LED indicator displays the device status: off (no operating voltage), green (operation), orange flashing (configuration), and red (error). In case of an error, the error code (e.g., “Err.1” for checksum error on relay 1) is displayed on the screen.

Compatibility and Accessories
The device is designed for use in enclosures and can be operated with various control signals via the control inputs B1(+) and B2(+). The control inputs are assigned to output relays 1 and 2 respectively. An optional version with plug-in terminal blocks is available, enabling quick replacement of the device. The terminal type is fixed as screw terminal.

Mounting and Installation
The timer relay is mounted in an enclosure. The connection terminals are designed for connection with wires. The supply voltage is supplied via terminals A1 (AC 230 V) and A3 (+) (AC/DC 24 V) as well as A2 (N / -). The control inputs B1(+) and B2(+) are used for signal transmission. Mounting is carried out in the usual manner for enclosure components.

Advantages in Operation
By combining two independently adjustable timer relays in one housing, the space requirement in the enclosure is reduced. The digital setting enables high precision and flexibility in adapting to different requirements. The LED indicator and display facilitate diagnosis and configuration. The device is designed for use in industrial environments and complies with the UKCA approval.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact, 2 x 1 C/O contacts
Time function(s)Cyclic timer, Fleeting on break, Fleeting on make, Fleeting on make and brake, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay, Pulse extender
Width22,5 mm
TypeMK 7830N
Variant
Contact equipping2 changeover contacts
Nominal voltageAC/DC 24 V + AC 230 V
Terminal typescrew terminal fixed
Time range0,02 s - 9999 h
Approvals and MarkingsUKCA


Product data sheet
Datasheet for Dold 0062073, EAN: 4030641620738

Questions & answers

What is the delivery time of Dold 0062073 MK7830N.82 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h ?

The article Dold 0062073 MK7830N.82 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0062073 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0062073 MK7830N.82 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h always at the best possible price. We can give you a discount of 2% on Dold 0062073 MK7830N.82 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0062073 MK7830N.82 AC/DC24V+AC230V multifunction relay 0.02 s–9999 h we can offer you a price of 206,89 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
