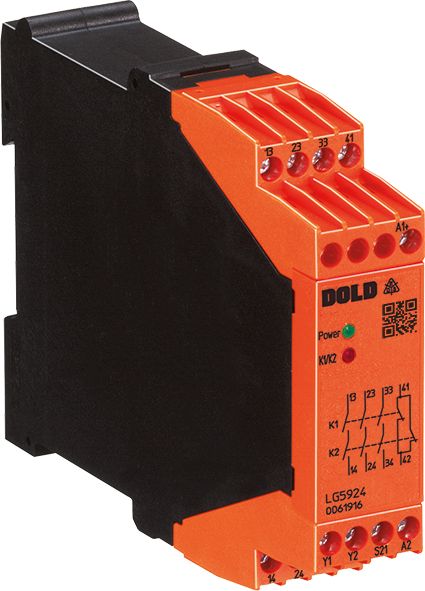

Dold 0061916 LG5924.48/61 DC24V emergency stop module
|
187,08 EUR |
|||||||||||
|
( 222,63 EUR incl. VAT ) ≈ £156.59 | ≈ $205.60 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1321026 | ||||||||||
| Mfg Part No: | 0061916 | ||||||||||
| UPC/EAN: | 4030641619169 | ||||||||||
| Weight: | 0.22 kg | ||||||||||
| Type: | LG5924.48/61 DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0061916:
Safety functions and approvals
This module meets the requirements of standards EN ISO 13849-1 and IEC/EN 62061. It is approved for use in safety applications up to Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as Safety Integrity Level (SIL) 3 according to IEC/EN 62061. The SIL claim limit (SIL CL) is also 3. These approvals guarantee that the device functions safely in critical installations, for example in combustion systems specified according to EN 50156-1. Additionally, the device is UL-listed C/US, TÜV, UKCA, and CCC certified, ensuring international usability in various markets.
Functions and equipment in detail
The emergency stop module enables both manual and automatic start. It features LED indicators that visually signal the operating status and the status of channels 1 and 2. A short-circuit detection between terminal Y1 and ground protects against false alarms and unwanted shutdowns. The connection terminals are designed as fixed screw terminals, with removable spring terminals and removable screw terminals also available as an option. Wire connections can be made with 2 x 1.5 mm² stranded wire with ferrule and plastic sleeve or 2 x 2.5 mm² solid wire according to DIN 46 228-1/-2/-3/-4. The maximum thermal current rating (Ith) is 5 A.
Technology explained clearly
The function of the module is based on the safe monitoring of safety circuits. When an emergency stop signal is triggered, the circuit is interrupted to safely shut down machinery. The integrated short-circuit detection prevents false alarms by recognizing a short circuit between Y1 and ground and responding accordingly. The LED indicators provide visual feedback on the operating status, simplifying fault diagnosis. The connection options with screw and spring terminals offer flexibility during installation and maintenance.
Compatibility and accessories
The module is suitable for single-channel or dual-channel wiring, allowing flexible integration into various safety concepts. It is available with optional plug-in connection blocks, enabling quick device replacement. The use of removable terminals supports maintenance and repair. The connection options are compatible with common wire cross-sections and standards, such as DIN 46 228.
Mounting and installation
The device is mounted in standard control panels with a width of 22.5 mm. The connection terminals are designed for use with stranded and solid wires. Mounting is done via screw terminals, with spring terminals also available as an alternative. Installation does not require special tools, as the terminals are standardly designed for manual installation.
Advantages in operation
The combination of high safety approvals, flexible wiring, and visual status indication makes the module a reliable component in safety-critical installations. The integrated short-circuit detection increases reliability, while the LED indicators simplify maintenance and fault diagnosis. The use of removable terminals and plug-in connection blocks (optional) enables quick repair and replaceability. The approvals according to UL, TÜV, UKCA, and CCC ensure usability in various markets.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable cage clamp terminals, Pluggable screw terminals, Screw terminals |
| Output contacts max. | 4 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 5 A |
| Width | 22,5 mm |
| Type | LG 5924 |
| Variant | |
| Contact equipping | 3 NO contacts, 1 NC contact |
| Nominal voltage | DC 24 V |
| Terminal type | screw terminals fixed |
| Approvals and Markings | UL-listed C/US, TÜV, UKCA, CCC |
Questions & answers
What is the delivery time of Dold 0061916 LG5924.48/61 DC24V emergency stop module ?
The article Dold 0061916 LG5924.48/61 DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0061916 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0061916 LG5924.48/61 DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0061916 LG5924.48/61 DC24V emergency stop module if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0061916 LG5924.48/61 DC24V emergency stop module we can offer you a price of 180,06 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
