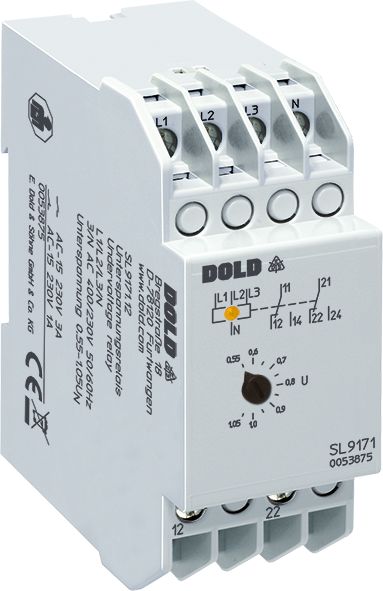

Dold 0059903 SL9171.12/001 3AC400V 0.55-1.05UN under-voltage relay
|
161,76 EUR |
|||||||||||
|
( 192,49 EUR incl. VAT ) ≈ £135.39 | ≈ $177.77 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1583717 | ||||||||||
| Mfg Part No: | 0059903 | ||||||||||
| UPC/EAN: | 4030641599034 | ||||||||||
| Weight: | 0.122 kg | ||||||||||
| Type: | SL9171.12/001 3AC400V 0,55-1,05UN | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0059903:
Applications
This relay is used in industrial and commercial installations where reliable network monitoring is required. It monitors three-phase networks for undervoltage and can also be connected single-phase. Applications include ensuring power supply for critical loads such as safety lighting or emergency power units, as well as preventing damage caused by unexpected voltage dips. The variant without time delay is suitable for installations requiring immediate response to voltage dips.
Functions and Equipment in Detail
The device features two changeover contacts as output contacts, which activate the relevant load or safety function when undervoltage is detected. The pickup value is adjustable and ranges from 0.55 to 1.05 times nominal voltage (Un). The nominal voltage is 3AC 400 V, although the device is also suitable for other voltages up to 3/N AC 500/290 V. Monitoring is performed without auxiliary voltage, simplifying installation and increasing independence from the network. An LED indicator signals the contact position of the output relay.
Technology Explained Simply
Measurement is carried out via the arithmetic mean of the individual phases against the neutral conductor. For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). In single-phase operation, terminals L1, L2, and L3 must be connected. The device is independent of phase sequence and detects undervoltage regardless of phase order. Pickup delay is active, but in this variant, no time delay is provided for resetting to the normal state.
Compatibility and Accessories
The device is designed for use in enclosures with mounting plate and cable duct. It is available in S-form, which has a depth of 98 mm and top-mounted terminals. The devices are certified in accordance with IEC/EN 60255-1.
Mounting and Installation
Mounting is carried out in enclosures with a mounting plate. The terminals are located at the top, which facilitates wiring within the enclosure. The width of 35 mm allows standard mounting on DIN rails. The devices are designed for frequencies between 45 and 65 Hz and can be continuously loaded at 1.15 times nominal voltage.
Advantages in Operation
The relay provides reliable network monitoring without auxiliary voltage, simplifying installation and maintenance. The adjustable pickup voltage allows flexible adaptation to different requirements. The LED indicator facilitates diagnosis of the operating status. The rest current principle ensures that the output relay is not activated in the event of a fault, increasing safety. The devices are designed for use in industrial environments and comply with applicable standards.
| Technical data | |
| 1- / 3-phase | 1, 3 |
| Auxiliary voltage | Without |
| Enclosure design | Switch cabinet |
| Nominal voltage max. | 3/N AC 500 / 290 V |
| Output contacts | 2 C/O contacts |
| Width | 35 mm |
| Type | SL 9171 |
| Operate delay | |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | 3AC 400 V |
| Response value | 0,55 - 1,05 Un |
| Time delay | without |
| Variant | Without N. NC circuit operation. Without time delay. Settable response value |
Questions & answers
What is the delivery time of Dold 0059903 SL9171.12/001 3AC400V 0.55-1.05UN under-voltage relay ?
The article Dold 0059903 SL9171.12/001 3AC400V 0.55-1.05UN under-voltage relay is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059903 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0059903 SL9171.12/001 3AC400V 0.55-1.05UN under-voltage relay always at the best possible price. We can give you a discount of 2% on Dold 0059903 SL9171.12/001 3AC400V 0.55-1.05UN under-voltage relay if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0059903 SL9171.12/001 3AC400V 0.55-1.05UN under-voltage relay we can offer you a price of 159,33 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
