Dold 0059878 SL5880.12/200 DC24V insulation monitor 5-100k 10k-5M

Your rating:
Average rating
product review for Dold 0059878 SL5880.12/200 DC24V insulation monitor 5-100k 10k-5M
( 4.3 / 5 ) 17 ratings
Dold 0059878

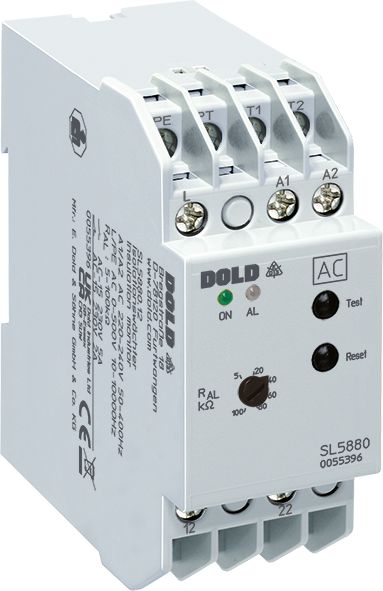

This image may differ from the desired article.
278,29 EUR
( 331,17 EUR incl. VAT )
≈ £232.93  |  ≈ $305.84
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059878 SL5880.12/200 DC24V insulation monitor 5-100k 10k-5M
Datasheet:file_download Download
Lieske Part No.:887676
Mfg Part No: 0059878
UPC/EAN: 4030641598785
Weight:0.211 kg
Type:SL5880.12/200 DC24V
Graduated prices net
From piecesPrice per pieces
4274,12 EUR
8269,94 EUR
12265,77 EUR
16261,59 EUR

Product information for Dold 0059878:

The insulation monitor SL5880.12/200 DC24V from Dold is a device for monitoring the insulation resistance in ungrounded pure alternating current and rotating current networks (IT systems) with a nominal voltage of AC 0 to 500 V. The device is specifically designed for use in industrial and railway applications and enables monitoring of de-energized systems, as it is supplied with a separate auxiliary voltage of DC 24 V. The device format is designed for enclosures, with a width of 35 mm and a depth of 98 mm, with connection terminals located at the top. Mounting is either via DIN rail or screws.

Applications

The insulation monitor is intended for pure alternating and rotating current networks in the frequency range of 10 to 10000 Hz. It serves a preventive fire and system protection function by detecting earth faults early. The variant SL5880.12/200 is specifically designed for applications requiring an additional warning threshold, for example in mobile power generation units or for monitoring de-energized consumers such as motor windings that must be activated in an emergency.

Functions and equipment in detail

The device features two 1-changeover contacts used for signal output in the event of an earth fault or warning. The function of the output relays is programmable, allowing selection between memory and hysteresis behavior. The setting of the trigger values is done via a potentiometer on the front of the device, with the alarm threshold adjustable between 5 and 100 kΩ and the warning threshold between 10 kΩ and 5 MΩ. Indication is provided by LEDs: a green LED indicates operational readiness, a red LED signals an earth fault (threshold undershoot), and a yellow LED lights up when the warning threshold is undershot.

Technology explained simply

The insulation monitor operates on the principle of rest current, where the output relays remain inactive in the event of a fault and stay in a resting state. This prevents unwanted switching operations during faults. The galvanic isolation between the measurement circuit, auxiliary voltage, and output contacts ensures safe and interference-free measurement. The auxiliary voltage of DC 24 V enables monitoring of systems that are de-energized at the moment, which is advantageous during maintenance work or emergency preparedness measures.

Compatibility and accessories

The device is specified according to IEC/EN 61557-8 and carries the UKCA mark. It is designed for use in IT systems and can be connected to external test and reset buttons to control the functions from outside. The connection terminals are designed for mounting in enclosures with mounting plate and cable duct.

Mounting and installation

Mounting is done in enclosures using DIN rail or screw mounting. The width is 35 mm, the depth is 98 mm. The connection terminals are arranged at the top, which facilitates wiring in enclosures.

Advantages in operation

The adjustable alarm and warning thresholds allow the device to be adapted to different requirements. The LED indicators enable quick visual inspection of the operating status. The programmability of relay functions (memory or hysteresis behavior) offers flexibility in fault handling. The galvanic isolation and rest current principle increase the safety and reliability of the device. The ability to monitor de-energized systems extends the range of applications in critical installations.

Technical data
Enclosure designSwitch cabinet
IMD typeAC
Nominal voltage IT systemAC 0 - 500 V
Response value5 - 500 kΩ
Response value typeAdjustable
Width35 mm
TypeSL 5880
Earth fault indicatorYes
Variant
Alarm value5 - 100 kOhm
Auxiliary voltageDC 24 V
Contact equipping2 x 1 changeover contact
Prewarning value10 kOhm - 5 MOhm
Approvals and MarkingsUKCA
VariantAdjustable alarm and pre-warning value. Programmable outputs. De-energized on trip


Product data sheet
Datasheet for Dold 0059878, EAN: 4030641598785

Questions & answers

What is the delivery time of Dold 0059878 SL5880.12/200 DC24V insulation monitor 5-100k 10k-5M ?

The article Dold 0059878 SL5880.12/200 DC24V insulation monitor 5-100k 10k-5M is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059878 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059878 SL5880.12/200 DC24V insulation monitor 5-100k 10k-5M always at the best possible price. We can give you a discount of 2% on Dold 0059878 SL5880.12/200 DC24V insulation monitor 5-100k 10k-5M if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0059878 SL5880.12/200 DC24V insulation monitor 5-100k 10k-5M we can offer you a price of 274,12 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
