Dold 0059460 BH9097.38/011 3AC60-440V AC8A load monitor DC24V

Your rating:
Average rating
product review for Dold 0059460 BH9097.38/011 3AC60-440V AC8A load monitor DC24V
( 4.2 / 5 ) 11 ratings

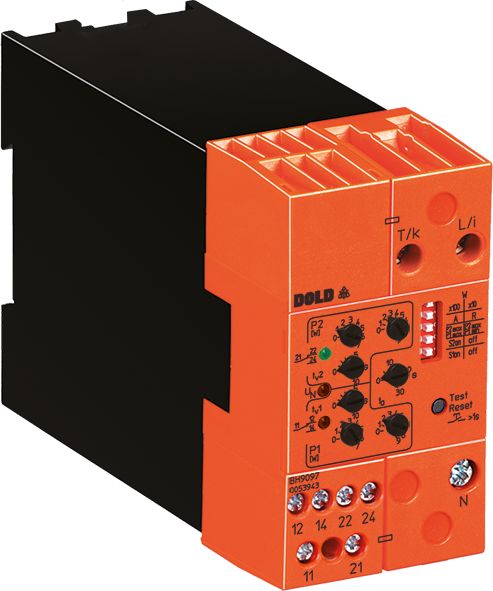

Dold 0059460
This image may differ from the desired article.
512,29 EUR
( 609,63 EUR incl. VAT )
≈ £428.79  |  ≈ $563.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059460 BH9097.38/011 3AC60-440V AC8A load monitor DC24V
Datasheet:file_download Download
Lieske Part No.:457600
Mfg Part No: 0059460
UPC/EAN: 4030641594602
Weight:0.458 kg
Type:BH9097.38/0113AC60-440VAC8A
Graduated prices net
From piecesPrice per pieces
3504,61 EUR
6496,92 EUR
9489,24 EUR
12481,55 EUR

Product information for Dold 0059460:

The load monitor BH 9097.38/0113AC60-440VAC8A from Dold is an industrial monitoring device of the VARIMETER series, designed for continuous monitoring of load on electrical drives, particularly motors. The device detects deviations from pre-set load limits and responds by activating output relays to signal operational faults at an early stage. It is designed for use in enclosures and operates on the principle of active power measurement, based on a single-phase principle that assumes symmetrical loading across all three phases — a condition common with motor loads. The auxiliary voltage is DC 24 V, and the device is rated for a nominal voltage of 3AC 60 to 440 V. The maximum rated current is AC 8 A, with a measurement range up to 40 A, equivalent to a power of up to 37 kW at 690 V. The width is 45 mm, enabling compact mounting in standard enclosures.

Applications

The load monitor is designed for monitoring industrial motors with variable loads. It is particularly suitable for applications where early detection of under- or overload conditions is critical to prevent damage to drives or connected machinery. Application areas include production plants, conveyor systems, pumps, and fans, where continuous operational reliability is required. The device can be used for both single-phase and three-phase loads, with the three-phase variant being the standard configuration.

Functions and Equipment in Detail

The device features two independent output relays, each with a single changeover contact, intended for signaling two different load conditions. The load monitoring thresholds (P1 and P2) are adjustable via rotary switches and are calibrated as absolute values in watts. Configuration is done via DIP switches, allowing the device to operate either as an under- and overload monitor (P1min/P2max) or as an overload monitor with a pre-warning stage (P1max/P2max). A common start-up bypass time ta (0 to 30 seconds) prevents false alarms during motor start-up. Operating states are indicated by two LEDs: a green LED for mains voltage and two yellow LEDs for the relay states P1 and P2. The LEDs flash during response delay or start-up bypass time and remain continuously lit when the respective relay is active.

Technology Explained Simply

Active power measurement is performed using a single-phase measurement principle, measuring the load in one phase and projecting it onto the total three-phase load. This requires symmetrical load distribution, which is typical for electric motors. Measurement is performed without external current transformers up to 40 A. The output relays can be switched between operating current principle (activated in fault condition) or rest current principle (not activated in fault condition), enabling flexible control of external switching devices. Configuration via DIP switches also controls memory behavior (automatic or manual). A test/reset button facilitates commissioning and serves as an adjustment aid.

Compatibility and Accessories

The device is designed for use in enclosures and complies with the standard IEC/EN 60255-1. It is designed for an auxiliary voltage of DC 24 V and can be used in industrial installations with corresponding supply voltage. The output relays are rated for a maximum switching voltage of 3AC 60 to 440 V and a nominal current of AC 8 A. The connection terminals are suitable for connecting with cables commonly used in industrial environments.

Mounting and Installation

Mounting is performed in an enclosure, with the width of 45 mm enabling standard mounting on DIN rails. The connection terminals are designed for connecting with electrical cables commonly used in industrial applications. Adjustment of load limits is done via rotary switches directly accessible on the device. Configuration of operating mode (operating or rest current principle, memory behavior) is done via DIP switches. Commissioning is facilitated by the test/reset button, which also serves as an adjustment aid.

Advantages in Operation

The load monitor enables early detection of load anomalies, allowing preventive maintenance and avoiding costly downtime. Adjustable thresholds and delay times offer flexibility in adapting to different systems. LED indicators provide clear signaling of operating status. Automatic range switching extends the measurement range without additional hardware. Configuration via DIP switches and rotary switches requires no special tools, simplifying commissioning and maintenance. The use of two independent relays allows differentiated responses to different load conditions, enhancing operational safety.

Technical data
1- / 3-phase1, 3
Enclosure designSwitch cabinet
Measuring range max.40 A (37 kW)
Output contacts2 x 1 C/O contacts
Width45 mm
TypeBH 9097
Operate delayYes
Variant
Auxiliary voltageDC 24 V
Contact equipping2 x 1 changeover contact
Nominal current maxAC 8 A
Nominal voltage3AC 60 - 440 V
Approvals and MarkingsCCC
Variant3-phase with auxiliary supply. Start up delay time 0 - 30 s


Product data sheet
Datasheet for Dold 0059460, EAN: 4030641594602

Questions & answers

What is the delivery time of Dold 0059460 BH9097.38/011 3AC60-440V AC8A load monitor DC24V ?

The article Dold 0059460 BH9097.38/011 3AC60-440V AC8A load monitor DC24V is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059460 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059460 BH9097.38/011 3AC60-440V AC8A load monitor DC24V always at the best possible price. We can give you a discount of 2% on Dold 0059460 BH9097.38/011 3AC60-440V AC8A load monitor DC24V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0059460 BH9097.38/011 3AC60-440V AC8A load monitor DC24V we can offer you a price of 504,61 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
