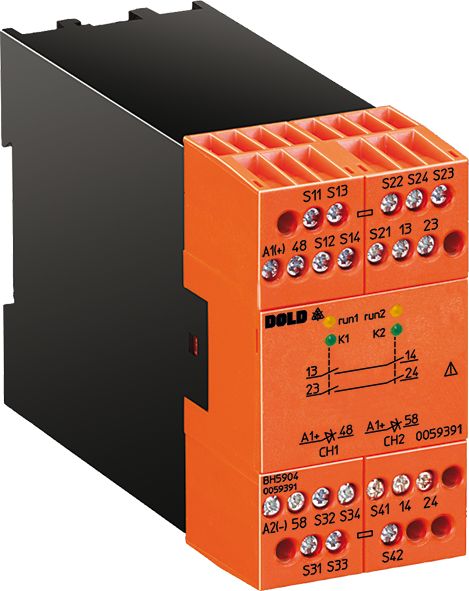

Dold 0059391 BH5904.02/00MF2/61 DC24V valve monitoring module

Your rating:
Average rating
product review for Dold 0059391 BH5904.02/00MF2/61 DC24V valve monitoring module
( 4.5 / 5 ) 39 ratings
Dold 0059391
This image may differ from the desired article.
958,70 EUR
( 1.140,85 EUR incl. VAT )
≈ £802.43  |  ≈ $1,053.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059391 BH5904.02/00MF2/61 DC24V valve monitoring module
Datasheet:file_download Download
Lieske Part No.:900047
Mfg Part No: 0059391
UPC/EAN: 4030641593919
Weight:0.348 kg
Type:BH5904.02/00MF2/61 DC24V
Graduated prices net
From piecesPrice per pieces
3937,13 EUR
6915,56 EUR
9893,99 EUR
12872,42 EUR

Product information for Dold 0059391:

The Dold valve monitoring module type BH5904.02/00MF2/61 DC24V is a safety-relevant monitoring switch for use in hydraulic systems, particularly in press installations. It is designed for continuous or cycle-dependent monitoring of valve plunger positions in standard hydraulic blocks to ensure the safety of personnel and machinery. The device is designed as a safety monitoring module and meets the requirements for safety functions in industrial plants. It features a width of 45 mm, making it suitable for use in standard control panels.

Applications

The module is primarily intended for monitoring valve positions in hydraulic control systems, especially in press installations. It enables detection of valve status (open, closed) and responds to deviations from the specified position. The application is in safety-critical environments where a valve malfunction could lead to hazards. Integration into existing control systems is achieved via the integrated outputs and status messages.

Functions and Equipment in Detail

The device features 2 NO contacts as output contacts, which can be used to control downstream components such as warning lights, stop valves, or emergency stop switches. The outputs are designed as short-circuit, overload, and temperature-safe semiconductor outputs, ensuring high reliability and protection against faults in the connected circuit. The operating mode can be set: either monitoring of the valve per machine cycle or continuous monitoring. The type of valve signal to be monitored (2 NO, 2 NC, or 1 changeover) is also configurable. An integrated reset button allows error acknowledgment after fault detection.

Technology Explained Simply

The module monitors the position of the valve plunger by evaluating signals from valve status sensors. It detects wire breaks, short circuits, and crossed connections in the wiring circuit to avoid false alarms and ensure the integrity of the monitoring. Additionally, undervoltage and overvoltage detection is performed to enhance operational safety. The response time is a maximum of 28 ms, enabling rapid reaction to disturbances. Operating states are visually indicated via LED displays (Run 1, Run 2). Power supply is via DC 24 V, which is a standard voltage in industrial electrical engineering.

Compatibility and Accessories

The device is designed for use with standard hydraulic blocks in press installations. The contact configuration allows control of external relays for contact amplification if required. The certifications UL-listed C/US, TÜV, UKCA and compliance with EN ISO 13849-1 (Category 4, Performance Level e) and IEC/EN 62061 (SIL CL 3) guarantee suitability for safety-critical applications. The safety integrity also corresponds to SIL 3 according to IEC/EN 61508.

Mounting and Installation

The module is mounted in standard control panels with a width of 45 mm. The connection terminals are intended for connecting to valve status sensors and downstream safety components. Installation is carried out according to the manufacturer’s technical instructions, with correct wiring and compliance with safety regulations being essential. The operating mode and valve signal type are configured via device settings.

Advantages in Operation

The integrated fault detection (wire break, short circuit, voltage failure) increases the reliability of monitoring. The fast response time of 28 ms enables timely reaction to disturbances. Visual indication of operating states facilitates diagnosis and maintenance. Configurability of operating mode and valve signal type offers flexibility when integrating into various plant concepts. The certifications and safety qualifications ensure compliance with applicable standards in safety-critical applications.

Technical data
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
Width45 mm
TypeBH 5904
Variant
Contact equipping2 NO contacts
Nominal voltageDC 24 V
Approvals and MarkingsUL-listed C/US, TÜV, UKCA


Product data sheet
Datasheet for Dold 0059391, EAN: 4030641593919
