Dold 0059339 BG5924.04/61 AC/DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0059339 BG5924.04/61 AC/DC24V emergency stop module
( 4.5 / 5 ) 8 ratings
Dold 0059339

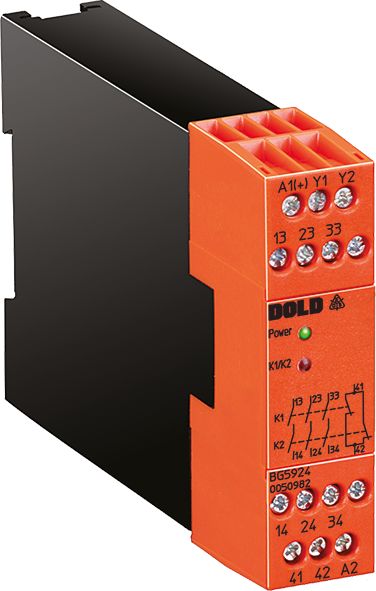

This image may differ from the desired article.
274,95 EUR
( 327,19 EUR incl. VAT )
≈ £230.13  |  ≈ $302.17
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059339 BG5924.04/61 AC/DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:546004
Mfg Part No: 0059339
UPC/EAN: 4030641593391
Weight:0.237 kg
Type:BG5924.04/61AC/DC24V
Graduated prices net
From piecesPrice per pieces
4264,64 EUR
8254,33 EUR
12244,02 EUR
16233,71 EUR

Product information for Dold 0059339:

The Dold BG5924.04/61AC/DC24V is a not-out module for use in safety-oriented systems. It is designed for the safe release and interruption of safety circuits to protect personnel and machinery from hazards. The device is designed for use in industrial environments where high reliability and safety integrity are required. It features a width of 22.5 mm and is therefore suitable for installation in standard control panels. The nominal voltage is AC/DC 24 V, allowing flexible use in various operating voltage environments.

Applications
This module is intended for applications in industrial automation, particularly in areas where safe shutdown is necessary in hazardous situations. It complies with the requirements of standard EN 50156-1 for heating systems, confirming its suitability for safety-critical systems in heating and energy technology. It is typically used in conjunction with emergency stop switches, safety light curtains, or other safety sensors that use the module to safely interrupt the control of drives, motors, or other machine components.

Functions and Equipment in Detail
The device provides a contact configuration with 4 NO contacts, which can be used to control multiple loads or safety functions. The outputs are rated for a thermal current Ith max. of 5 A, covering the load capacity for typical industrial applications. The connection technology uses removable screw terminals, enabling flexible and secure wiring connections. The terminals are designed for stranded wires with a cross-section up to 2.5 mm², and the use of ferrules and plastic collars according to DIN 46228-1/-2/-3/-4 is also possible. This ensures a robust and reliable connection, even under industrial conditions.

Technology Explained Simply
The module operates on the principle of safety-oriented circuitry, where functions such as start, operation, and shutdown are secured via redundant channels. It supports both single-channel and dual-channel wiring, allowing a higher safety level to be achieved depending on requirements. The integrated LED indicators show the operating status and the status of individual channels, facilitating error diagnosis during operation. A short-circuit detection between terminal Y1 and ground provides additional safety by detecting potential faults early. Safety integrity is confirmed by certifications PL e / Cat. 4 according to EN ISO 13849-1 and SIL 3 according to IEC/EN 62061, highlighting its suitability for high-safety applications.

Compatibility and Accessories
The module is designed for use in systems with AC/DC 24 V and can be combined with other safety components operating at the same voltage. Certifications UL-rec. C/US, TÜV, UKCA, CCC confirm compliance with international safety standards, enabling use in various markets. It is part of the BG 5924 product family, which also includes other variants with different voltages and contact configurations. The use of removable terminal blocks simplifies installation and maintenance, as the terminals can be removed and replaced as needed.

Mounting and Installation
Mounting is done in standard control panels with a width of 22.5 mm. The terminal blocks are removable, simplifying installation and maintenance. The connection terminals are designed for stranded wires up to 2.5 mm², and the use of ferrules and plastic collars according to DIN 46228-1/-2/-3/-4 is recommended. Correct wiring according to the circuit diagrams in the datasheet is essential for proper function. Installation should be carried out by qualified personnel to ensure safety functions are maintained.

Advantages in Operation
The module offers high safety integrity through certifications PL e / Cat. 4 and SIL 3, making it suitable for critical applications. The integrated LED indicators allow for quick visual inspection of the operating status. Removable terminal blocks simplify maintenance and repair. Support for single- and dual-channel wiring provides flexibility in system design. Compliance with international standards such as EN 50156-1, EN ISO 13849-1, and IEC/EN 62061 ensures reliability and acceptance across various industries.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width22,5 mm
TypeBG 5924
Variant
Contact equipping4 NO contacts
Nominal voltageAC/DC 24 V
Approvals and MarkingsUL-rec. C/US, TÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0059339, EAN: 4030641593391

Questions & answers

What is the delivery time of Dold 0059339 BG5924.04/61 AC/DC24V emergency stop module ?

The article Dold 0059339 BG5924.04/61 AC/DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059339 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059339 BG5924.04/61 AC/DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0059339 BG5924.04/61 AC/DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0059339 BG5924.04/61 AC/DC24V emergency stop module we can offer you a price of 264,64 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
