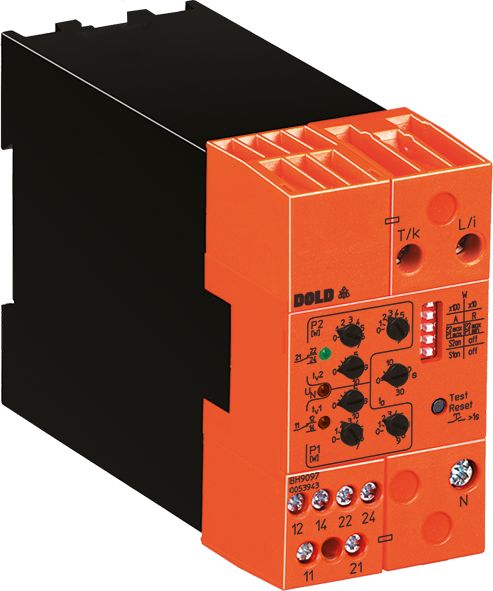

Dold 0059191 BH9097.38/011 3AC60-440V AC8A load monitor AC230/110V

Your rating:
Average rating
product review for Dold 0059191 BH9097.38/011 3AC60-440V AC8A load monitor AC230/110V
( 4.6 / 5 ) 7 ratings
Dold 0059191
This image may differ from the desired article.
512,29 EUR
( 609,63 EUR incl. VAT )
≈ £428.79  |  ≈ $563.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059191 BH9097.38/011 3AC60-440V AC8A load monitor AC230/110V
Datasheet:file_download Download
Lieske Part No.:690842
Mfg Part No: 0059191
UPC/EAN: 4030641591915
Weight:0.458 kg
Type:BH9097.38/0113AC60-440VAC8A
Graduated prices net
From piecesPrice per pieces
3504,61 EUR
6496,92 EUR
9489,24 EUR
12481,55 EUR

Product information for Dold 0059191:

The load monitor BH9097.38/0113AC60-440VAC8A from Dold is an industrial monitoring device of the VARIMETER series, designed for continuous monitoring of the load on electrical drives, particularly motors. The device detects deviations from pre-set load limits and responds by activating output relays to signal operational faults at an early stage. It is designed for use in enclosures and is suitable for applications in industrial automation, where the reliability and availability of drives are critical.

Applications

The load monitor is designed for monitoring electrical industrial motors with variable loads. It can be used in both single-phase and three-phase systems, with three-phase systems requiring symmetrical phase loading, as is typical for motor loads. The maximum monitorable load is 40 A, corresponding to a power of 37 kW at 690 V. The device is also suitable for motors up to 22 kW at 400 V. Applications are in industrial environments, where preventive maintenance and early fault detection contribute to avoiding failures and damage.

Functions and Equipment in Detail

The device features two independent output relays, each with a 1-changeover contact, for signaling underload (P1) and overload (P2). The threshold values for P1 and P2 can be set via rotary switches as absolute values in watts. Configuration is done via DIP switches, allowing the device to operate either as an under- and overload monitor (P1min/P2max) or as an overload monitor with a warning stage (P1max/P2max). The relays can be switched between operating current principle (activated in fault condition) and rest current principle (not activated in fault condition). Two LEDs indicate the relay status: a green LED indicates mains voltage, while two yellow LEDs show the status of relays P1 and P2. The LEDs flash during response delay or during setting assistance, and remain lit continuously when the respective relay is active.

Technology Explained Simply

Measurement is performed based on the principle of active power measurement. The device measures the actual electrical power consumed by the motor and compares it with the set threshold values. If these values are exceeded or undershot, the corresponding relay is activated. A common start-up bypass time ta (0–30 seconds) prevents false triggering during motor start-up. Automatic range switching enables a wide current measurement range up to 40 A without external current transformers. Device configuration is done via DIP switches, which also control the reset behavior (automatic or manual reset).

Compatibility and Accessories

The device is designed for an auxiliary voltage of AC 230/110 V and can be mounted in enclosures with a width of 45 mm. It is designed for nominal voltages of 3AC 60–440 V and a maximum nominal current of AC 8 A. The CCC certification is specified. The device is used in industrial plants, where operational safety and drive availability are prioritized.

Mounting and Installation

Mounting is done in an enclosure, where the width of 45 mm determines the mounting height. Connections are made via the designated terminals, with care taken to correctly connect the current terminals to avoid negative load measurement (reverse power). The threshold values and delay times are set via rotary switches and DIP switches. A test/reset button facilitates commissioning and serves as a setting aid. The LED indicators support diagnosis and status monitoring during operation.

Advantages in Operation

By detecting load anomalies such as under- or overload at an early stage, the load monitor enables preventive maintenance and reduces the risk of machine failures. The clear signaling via LEDs and the flexible configuration of relay functions (operating or rest current principle) offer flexibility when integrating into existing control systems. Reduced wiring and easy commissioning via the test/reset button reduce installation effort. Compliance with the standard IEC/EN 60255-1 ensures reliability and safety of the device in industrial applications. Operational safety is enhanced through continuous monitoring and precise response to load deviations.

Technical data
1- / 3-phase1, 3
Enclosure designSwitch cabinet
Measuring range max.40 A (37 kW)
Output contacts2 x 1 C/O contacts
Width45 mm
TypeBH 9097
Operate delayYes
Variant
Auxiliary voltageAC 230/110 V
Contact equipping2 x 1 changeover contact
Nominal current maxAC 8 A
Nominal voltage3AC 60 - 440 V
Approvals and MarkingsCCC
Variant3-phase with auxiliary supply. Start up delay time 0 - 30 s


Product data sheet
Datasheet for Dold 0059191, EAN: 4030641591915
