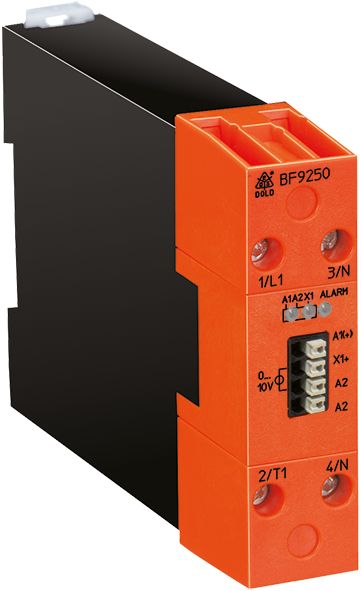

Dold 0059168 BF9250.91/042 UH=AC/DC24V DC0-10V semiconductor contactor AC230-480V 10A

Your rating:
Average rating
product review for Dold 0059168 BF9250.91/042 UH=AC/DC24V DC0-10V semiconductor contactor AC230-480V 10A
( 4.6 / 5 ) 20 ratings
Dold 0059168
This image may differ from the desired article.
218,71 EUR
( 260,26 EUR incl. VAT )
≈ £183.06  |  ≈ $240.36
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059168 BF9250.91/042 UH=AC/DC24V DC0-10V semiconductor contactor AC230-480V 10A
Datasheet:file_download Download
Lieske Part No.:204136
Mfg Part No: 0059168
UPC/EAN: 4030641591687
Weight:1.1 kg
Type:BF9250.91/042 UH=DC24V DC0-10V
Graduated prices net
From piecesPrice per pieces
5210,51 EUR
10202,31 EUR
15194,11 EUR
20185,90 EUR

Product information for Dold 0059168:

The Dold semiconductor contactor BF9250.91/042 UH=DC24V DC0-10V is a 1-pole semiconductor contactor for pulse packet control of heating elements in industrial applications. It enables precise temperature control via analog actuation and allows fast, noiseless switching of resistive loads. The device is designed for an auxiliary voltage of AC/DC 24 V and features a control input for DC 0–10 V, with the option of actuation via DC 4–20 mA or a potentiometer resistance of 0–10 kΩ. The load voltage ranges from AC 230–480 V, and the load current is AC 10 A. The width is 22.5 mm, enabling mounting on a DIN rail. The device complies with standards IEC/EN 60947-4-2 and IEC/EN 60947-4-3 and is UL-listed C/US certified.

Applications
This contactor is specifically designed for controlling heating systems, particularly for applications with infrared lamps, where self-optimized pulse distribution with minimized cycle times is required. The zero-voltage switching function ensures disturbance-free switching and reduces electromagnetic interference. The varistor protection circuit protects the device against overvoltages, and the temperature protection function of the power semiconductors prevents overheating. The operating temperature ranges from 0 °C to 40 °C, with current reduction occurring above 40 °C (0.2 A/°C at 10 A load current).

Functions and Equipment in Detail
The device features an LED indicator for auxiliary voltage (green), output status (yellow), and alarms (red). In case of a synchronization error, a control input fault, or overtemperature of the power semiconductors, the LEDs illuminate accordingly. The overtemperature alert is latching and requires a brief interruption of the supply voltage to reset. Analog actuation is used, with a resolution of 5 % for this variant (BF9250.91/042). The pulse packet control enables precise load regulation, with pulses distributed self-optimally to ensure short cycle times.

Technology Explained Simply
Zero-voltage detection ensures that the contactor switches only at the zero crossing of the mains voltage, minimizing noise and interference in the network. Varistors protect the device against transient overvoltages caused by switching operations or network disturbances. The temperature protection function monitors the temperature of the power semiconductors and reduces the load current when the temperature reaches a critical level, preventing thermal overload. Current reduction above 40 °C occurs linearly to extend the device’s service life.

Compatibility and Accessories
The contactor is designed for resistive loads and is particularly suitable for heating applications, including infrared lamps. It can be combined with control devices providing an analog output (DC 0–10 V, DC 4–20 mA, or potentiometer 0–10 kΩ). The UL-listed C/US approvals make it suitable for use in North America. DIN rail mounting allows for easy installation in enclosures.

Mounting and Installation
The device can be snapped onto a DIN rail. Recommended clearances are 20 mm above and below, and 10 mm to the left and right, to ensure sufficient cooling at maximum load current and 100 % duty cycle. The connection terminals are clearly labeled: A1 (+) and A2 (–) for auxiliary voltage, X1 for the control input, L1/N for mains connections, and T1/N for the load output.

Operational Advantages
The contactor provides a noiseless and disturbance-free switching function, which is advantageous in sensitive production environments. Analog control enables precise temperature regulation, and self-optimized pulse distribution ensures rapid response to load changes. The LED indicators provide visual feedback on operating status and faults, simplifying maintenance and diagnostics. The UL approval and compliance with IEC/EN standards guarantee safe and reliable operation in industrial installations.

Technical data
Analog Input Control4 - 20 mA
ApprovalsUL
Load current up to50 A
Load voltage up toAC 480 V
Number of poles1-pole
Width22,5 mm, 45 mm, 90 mm
TypeBF 9250/0_2
Temperature monitoringYes
Variant
Auxiliary voltageAC/DC 24 V
Contact equippingwithout signal contact
Control inputDC 0 - 10 V
Load currentAC 10 A
Load voltageAC 230 - 480 V
Semiconductor output1-pole
Approvals and MarkingsUL-listed C/US
VariantSelf optimising, to achieve as short as possible control periods, suitable for infrared lamps


Product data sheet
Datasheet for Dold 0059168, EAN: 4030641591687

Questions & answers

What is the delivery time of Dold 0059168 BF9250.91/042 UH=AC/DC24V DC0-10V semiconductor contactor AC230-480V 10A ?

The article Dold 0059168 BF9250.91/042 UH=AC/DC24V DC0-10V semiconductor contactor AC230-480V 10A is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059168 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059168 BF9250.91/042 UH=AC/DC24V DC0-10V semiconductor contactor AC230-480V 10A always at the best possible price. We can give you a discount of 2% on Dold 0059168 BF9250.91/042 UH=AC/DC24V DC0-10V semiconductor contactor AC230-480V 10A if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0059168 BF9250.91/042 UH=AC/DC24V DC0-10V semiconductor contactor AC230-480V 10A we can offer you a price of 210,51 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
