Dold 0059108 BH9097.38/011 3AC100-760V AC40A load monitor DC24V

Your rating:
Average rating
product review for Dold 0059108 BH9097.38/011 3AC100-760V AC40A load monitor DC24V
( 4.3 / 5 ) 9 ratings

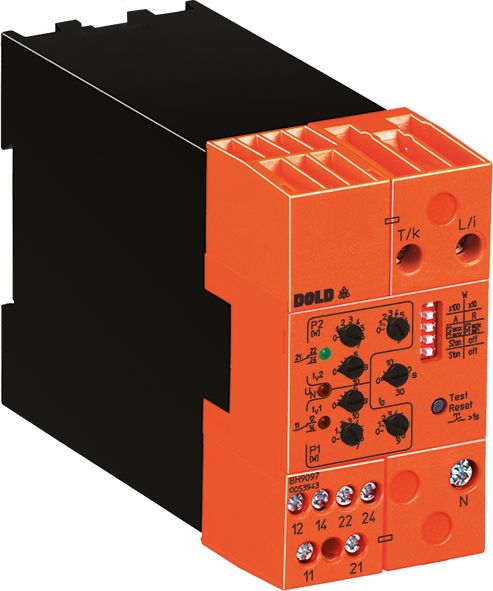

Dold 0059108
This image may differ from the desired article.
Dold 0059108Dold 0059108
512,29 EUR
( 609,63 EUR incl. VAT )
≈ £428.79  |  ≈ $563.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059108 BH9097.38/011 3AC100-760V AC40A load monitor DC24V
Datasheet:file_download Download
Lieske Part No.:808591
Mfg Part No: 0059108
UPC/EAN: 4030641591083
Weight:0.458 kg
Type:BH9097.38/0113AC100-760VAC40A
Graduated prices net
From piecesPrice per pieces
3493,08 EUR
6473,87 EUR
9454,66 EUR
12435,45 EUR

Product information for Dold 0059108:

The load monitor BH9097.38/0113AC100-760VAC40A from Dold is an industrial monitoring switch for electrical consumers, particularly for motors with variable load. The device monitors active power and responds to exceeding or falling below adjustable threshold values by activating the output relays. It is designed for use in enclosures and is suitable for single-phase and three-phase installations in the voltage range of 3AC 100 to 760 V. The maximum rated current is 40 A, corresponding to a power of up to 37 kW at 690 V. The auxiliary voltage is DC 24 V, and the device has a width of 45 mm.

Applications

The load monitor is designed for monitoring industrial motors and electrical consumers where continuous load monitoring is required. It serves to detect load anomalies, such as underload or overload, to prevent damage to drives or machines. The application is in industrial plants where operational safety and system availability are of high importance. The automatic range switching enables a wide measurement range without additional current transformers up to 40 A.

Functions and equipment in detail

The device features two output relays, each with a 1-changeover contact, responsible for signaling P1 (underload or overload) and P2 (overload). The threshold values for P1 and P2 can be set via rotary switches as absolute values in watts. The adjustment is made using an absolute scale, allowing for precise calibration. The relays can be operated in either the active current principle (activated in case of fault) or the idle current principle (not activated in case of fault), with configuration done via DIP switches. A test/reset button supports commissioning and serves as an adjustment aid.

Technology explained simply

Measurement is performed based on the principle of active power measurement. The device detects load changes and reacts when the set thresholds are exceeded. An adjustable response delay tv suppresses short-term load fluctuations to avoid false alarms. A common adjustable start-up bypass time ta (0 to 30 seconds) prevents the monitor from tripping during a motor’s start-up phase. The functions are configurable via DIP switches, with options including P1min/P2max (underload and overload monitoring) and P1max/P2max (overload monitoring with pre-warning stage).

Compatibility and accessories

The device is suitable for single-phase and three-phase loads, with three-phase installations requiring symmetrical loading of all phases, as is typical for motor loads. The operating voltage is in the range of 3AC 100 to 760 V, and the auxiliary voltage is DC 24 V. Certification according to IEC/EN 60255-1 ensures compliance with standards for electrical measuring instruments. Indication is provided via LEDs: a green LED indicates mains voltage, while two yellow LEDs signal the status of relays P1 and P2. In fault conditions, the LEDs blink in specific patterns to distinguish between “no measurement” and “reverse power”.

Mounting and installation

The device is designed for mounting in enclosures and has a width of 45 mm. Installation is carried out via the designated connection terminals. The terminal assignment is detailed in the data sheet. Configuration is done via DIP switches and rotary switches, with settings adjustable directly on the device. Commissioning is facilitated by the test/reset button.

Advantages in operation

By enabling early detection of load anomalies, the load monitor allows for preventive maintenance, thereby avoiding costly downtime and damage to drives. Reduced wiring due to integrated functionality reduces installation effort. The clear LED display and adjustable delay times increase reliability and user-friendliness. The device is designed for industrial environments and meets the requirements of standard IEC/EN 60255-1. CCC certification is also available.

Technical data
1- / 3-phase1, 3
Enclosure designSwitch cabinet
Measuring range max.40 A (37 kW)
Output contacts2 x 1 C/O contacts
Width45 mm
TypeBH 9097
Operate delayYes
Variant
Auxiliary voltageDC 24 V
Contact equipping2 x 1 changeover contact
Nominal current maxAC 40 A
Nominal voltage3AC 100 - 760 V
Approvals and MarkingsCCC
Variant3-phase with auxiliary supply. Start up delay time 0 - 30 s


Product data sheet
Datasheet for Dold 0059108, EAN: 4030641591083

Questions & answers

What is the delivery time of Dold 0059108 BH9097.38/011 3AC100-760V AC40A load monitor DC24V ?

The article Dold 0059108 BH9097.38/011 3AC100-760V AC40A load monitor DC24V is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059108 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059108 BH9097.38/011 3AC100-760V AC40A load monitor DC24V always at the best possible price. We can give you a discount of 2% on Dold 0059108 BH9097.38/011 3AC100-760V AC40A load monitor DC24V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0059108 BH9097.38/011 3AC100-760V AC40A load monitor DC24V we can offer you a price of 493,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
