Dold 0059054 SN7920.54/001 ACDC24-230V 05S-300H multifunction relay

Your rating:
Average rating
product review for Dold 0059054 SN7920.54/001 ACDC24-230V 05S-300H multifunction relay
( 4.7 / 5 ) 7 ratings

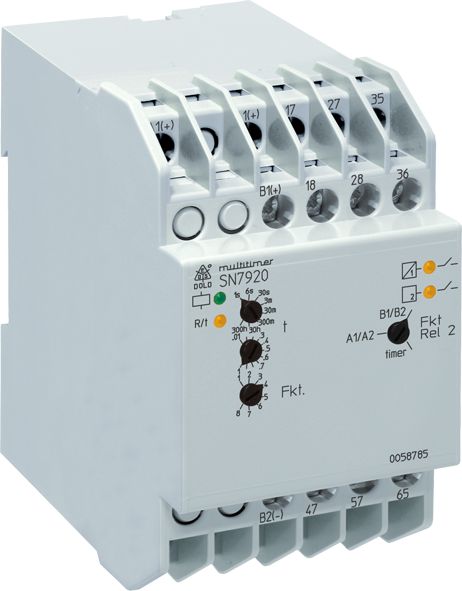

Dold 0059054
This image may differ from the desired article.
304,95 EUR
( 362,89 EUR incl. VAT )
≈ £255.24  |  ≈ $335.14
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0059054 SN7920.54/001 ACDC24-230V 05S-300H multifunction relay
Datasheet:file_download Download
Lieske Part No.:1313058
Mfg Part No: 0059054
UPC/EAN: 4030641590543
Weight:0.286 kg
Type:SN7920/001 AC/DC24-230V 0,05S-300H
Graduated prices net
From piecesPrice per pieces
4300,38 EUR
8295,80 EUR
12291,23 EUR
16286,65 EUR

Product information for Dold 0059054:

The Dold multifunction relay SN7920/001 AC/DC24-230V 0,05S-300H is an industrial time relay for applications in automation technology, particularly in industrial and railway technology. It enables the control of time-dependent processes with high flexibility through eight different functions, which can be set via a rotary switch. The device design is intended for use in enclosures, with a width of 52.5 mm, allowing compact mounting on DIN rails or via screw fastening. The rated voltage is in the range AC/DC 24 to 230 V, making the relay suitable for various electrical systems.

Applications

The relay is designed for time-controlled processes in industrial plants and railway applications. It is suitable, for example, for delaying switching operations, implementing blinking functions, pulse shaping, or generating short switching pulses. The ability to switch large DC loads is ensured by mechanically interlocked contacts in accordance with IEC 61810-3, guaranteeing reliable switching performance even under high loads. Application areas include, among others, drive technology, lighting control, safety functions, and process automation.

Functions and Equipment in Detail

The device offers eight different time functions, which can be selected via a rotary switch: On-delay (AV), On-wipe function (EW), Delayed pulse generator (IE), Blinking function with pulse start (BI), Off-delay (RV), Pulse shaper (IF), Off-wipe function (AW), and On-delay and Off-delay (AV/RV). The time ranges are adjustable in eight steps from 0.05 seconds to 300 hours. The functions are designed to meet various control requirements, such as delaying the switching on or off of loads, generating pulses, or implementing blinking functions.

Technology Explained Simply

The output contacts consist of two normally open contacts and four normally closed contacts, with the contacts mechanically interlocked to ensure safe and reliable switching performance even under high DC loads. The contacts are organized in two relays (Relay 1 and Relay 2), where Relay 2 can be switched via a rotary switch between timer function, immediate contact via auxiliary voltage (A1/A2), or control input (B1/B2). The time control is performed via a potentiometer, which sets the time ranges through the rotary switch. An adjustment aid enables quick setting of long times by using the LED flash frequency as a reference. The LED indicators signal supply voltage (green LED), the state of the output relay, and the time progression (yellow LEDs). The yellow LED R/t indicates the time progression and contact position, with steady light, blinking (short on, long off), and blinking (long on, short off) indicating different states.

Compatibility and Accessories

The relay is designed for use in enclosures and can be installed either on DIN rails or via screw mounting. The terminal connections are designed for connection to wires, with the terminal designation detailed in the circuit diagram. Control is performed via the auxiliary voltage A1/A2 and the control input B1/B2. The functions are usable independently of voltage type (AC/DC) in the range 24 to 230 V. Conformity is ensured in accordance with IEC/EN 61812-1 and DIN EN 50155, confirming suitability for industrial and railway applications. The UKCA approval is also available.

Mounting and Installation

Mounting is either on a DIN rail or via screw fastening in the enclosure. The width of 52.5 mm allows for compact placement. The terminal connections are clearly labeled, with the terminal designation detailed in the circuit diagram. The function and time range settings are adjusted via rotary switches, with the settings only taking effect when the auxiliary voltage is switched on. Changes to the settings during operation have no effect. The LED indicators support commissioning and maintenance by visually displaying the operating status.

Advantages in Operation

The combination of eight functions in a single device offers high flexibility and reduces the number of required components in control technology. The mechanically interlocked contacts ensure reliable switching performance even under high DC loads. The LED indicators facilitate diagnosis and maintenance, as the operating status and time progression can be visually monitored. The adjustment aid for long times reduces commissioning time. Conformity with IEC/EN 61812-1 and DIN EN 50155 ensures suitability for demanding industrial and railway applications. The UKCA approval confirms compliance with applicable requirements in the United Kingdom.

Technical data
Enclosure designSwitch cabinet
Output contacts2 NC contacts, 4 NO contacts
Time function(s)Flasher relay, Fleeting on break, Fleeting on make, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay, Pulse extender
Width52,5 mm
TypeSN 7920
Variant
Contact equipping2 x 2 NO contacts, 2 NC contacts
Nominal voltageAC/DC 24 - 230 V
Time range0,05 s - 300 h
Approvals and MarkingsUKCA
VariantTo switch high DC-loads with mechanical forcibly guided contacts, different terminal designation (see Circuit Diagram)


Product data sheet
Datasheet for Dold 0059054, EAN: 4030641590543

Questions & answers

What is the delivery time of Dold 0059054 SN7920.54/001 ACDC24-230V 05S-300H multifunction relay ?

The article Dold 0059054 SN7920.54/001 ACDC24-230V 05S-300H multifunction relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0059054 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0059054 SN7920.54/001 ACDC24-230V 05S-300H multifunction relay always at the best possible price. We can give you a discount of 2% on Dold 0059054 SN7920.54/001 ACDC24-230V 05S-300H multifunction relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0059054 SN7920.54/001 ACDC24-230V 05S-300H multifunction relay we can offer you a price of 300,38 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
