Dold 0058933 BH9097.38/001 3AC400V AC8A load monitor

Your rating:
Average rating
product review for Dold 0058933 BH9097.38/001 3AC400V AC8A load monitor
( 4.5 / 5 ) 6 ratings

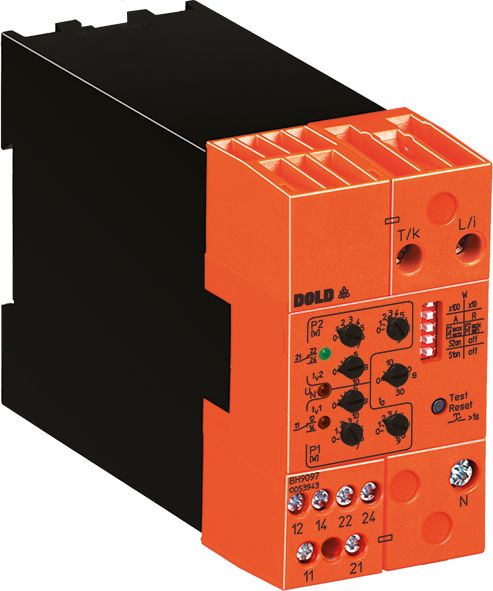

Dold 0058933
This image may differ from the desired article.
512,29 EUR
( 609,63 EUR incl. VAT )
≈ £428.79  |  ≈ $563.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0058933 BH9097.38/001 3AC400V AC8A load monitor
Datasheet:file_download Download
Lieske Part No.:350007
Mfg Part No: 0058933
UPC/EAN: 4030641589332
Weight:0.458 kg
Type:BH9097.38/0013AC400VAC8A
Graduated prices net
From piecesPrice per pieces
3493,08 EUR
6473,87 EUR
9454,66 EUR
12435,45 EUR

Product information for Dold 0058933:

The load monitor BH 9097.38/0013AC400VAC8A from Dold is an industrial monitoring device of the VARIMETER series, designed for continuous monitoring of load on electrical drives, particularly motors. The device monitors active power and responds to exceeding or falling below adjustable threshold values by activating the output relays. It is designed for use in enclosures and offers a width of 45 mm, enabling compact installation in standard switchboards.

Applications

The load monitor is suitable for monitoring industrial motors with variable load. It can be used in systems where early detection of load anomalies is important to prevent damage to motors or driven machinery. Applications include single-phase and three-phase systems, with the three-phase version requiring symmetrical loading of all phases, as is typical for motor loads. The maximum measurable current is 40 A, corresponding to a power of 37 kW at 690 V or 22 kW at 400 V.

Functions and Equipment in Detail

The device features two independent output relays, each with a single changeover contact, designated for underload (P1) and overload (P2) signaling. The threshold values for P1 and P2 can be set via rotary switches as absolute values in watts. Configuration is performed using DIP switches, allowing the device to operate either as an under- and overload monitor (P1min/P2max) or as an overload monitor with a warning stage (P1max/P2max). The relays can be switched between operating current principle (activated in fault condition) and resting current principle (not activated in fault condition).

Technology Explained Simply

Measurement is performed based on the principle of active power measurement. The device detects the load based on electrical power and compares it with the set threshold values. To suppress short-term load fluctuations, an adjustable response delay tv is provided for each relay. A common adjustable start-up bypass time ta (0–30 seconds) prevents false alarms during motor start-up. Status indication is provided via LEDs: a green LED indicates mains voltage, while two yellow LEDs indicate the status of relays P1 and P2. Blinking LEDs indicate time intervals (e.g., start-up bypass time or response delay), while continuous illumination indicates that the respective relay is active.

Compatibility and Accessories

The device is designed for three-phase systems with nominal voltage 3AC 400 V and can also be used in single-phase installations. It is operational without auxiliary voltage and does not require external power supply. The maximum rated current is AC 8 A. Measurement is possible up to 40 A without external current transformer. Configuration is performed via DIP switches, allowing switching between functions for memory behavior (S1/S2 ON = manual reset, OFF = automatic reset) and operating mode (operating or resting current principle).

Mounting and Installation

The load monitor is intended for mounting in enclosures and is installed in standard switchboards with a width of 45 mm. The connection terminals are designed for connection to load conductors. Commissioning is facilitated by a test/reset button, which also serves as an adjustment aid. The terminal assignment is detailed in the datasheet, with contacts 11–14 and 21–24 designated for relay outputs.

Advantages in Operation

Early detection of load anomalies enables preventive maintenance and reduces the risk of machine failures. Automatic range switching ensures a wide measurement range without additional components. The clear LED indication and simple configuration via DIP switches and rotary switches reduce wiring effort and simplify commissioning. Compliance with standard IEC/EN 60255-1 ensures reliability and safety in industrial applications.

Fault Detection

The device signals two fault conditions via LEDs: if measurement voltage is missing, all three LEDs blink sequentially, indicating a measurement error. In case of reverse power (negative load), all LEDs blink simultaneously, indicating incorrect current connection or reverse power. The output relays signal these fault conditions.

Technical data
1- / 3-phase1, 3
Enclosure designSwitch cabinet
Measuring range max.40 A (37 kW)
Output contacts2 x 1 C/O contacts
Width45 mm
TypeBH 9097
Operate delayYes
Variant
Auxiliary voltageWithout
Contact equipping2 x 1 changeover contact
Nominal current maxAC 8 A
Nominal voltage3AC 400 V
Variant3-phase without auxiliary supply. Start up delay time 0 - 30 s


Product data sheet
Datasheet for Dold 0058933, EAN: 4030641589332

Questions & answers

What is the delivery time of Dold 0058933 BH9097.38/001 3AC400V AC8A load monitor ?

The article Dold 0058933 BH9097.38/001 3AC400V AC8A load monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0058933 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0058933 BH9097.38/001 3AC400V AC8A load monitor always at the best possible price. We can give you a discount of 2% on Dold 0058933 BH9097.38/001 3AC400V AC8A load monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0058933 BH9097.38/001 3AC400V AC8A load monitor we can offer you a price of 493,08 EUR per piece. The more you buy, the cheaper the article will be.
