Dold 0058785 SN7920.54 AC/DC24-230V 0.05S-300H multifunction relay

Your rating:
Average rating
product review for Dold 0058785 SN7920.54 AC/DC24-230V 0.05S-300H multifunction relay
( 4.2 / 5 ) 9 ratings
Dold 0058785

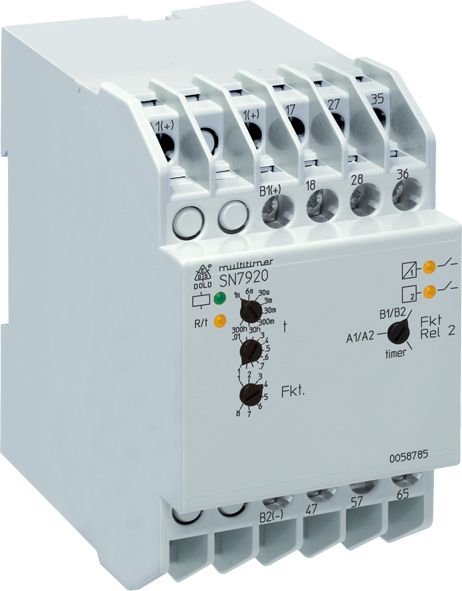

This image may differ from the desired article.
304,95 EUR
( 362,89 EUR incl. VAT )
≈ £255.24  |  ≈ $335.14
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0058785 SN7920.54 AC/DC24-230V 0.05S-300H multifunction relay
Datasheet:file_download Download
Lieske Part No.:1439876
Mfg Part No: 0058785
UPC/EAN: 4030641587857
Weight:0.286 kg
Type:SN7920 AC/DC24-230V 0,05S-300H
Graduated prices net
From piecesPrice per pieces
4300,38 EUR
8295,80 EUR
12291,23 EUR
16286,65 EUR

Product information for Dold 0058785:

The Dold multifunction relay SN7920.54 is an industrial time relay for time-dependent control applications in industrial and railway technology. It features a rated voltage range of AC/DC 24 to 230 V and a time range from 0.05 seconds to 300 hours. The width is 52.5 mm, making it suitable for installation in enclosures. The device is specified according to IEC/EN 61812-1 and DIN EN 50155 and bears the UKCA mark. It is designed for switching high DC loads and uses mechanically forced-guided contacts compliant with IEC 61810-3.

Applications
This relay is used in industrial control systems where time-controlled sequences are required, for example in automation technology, plant control systems, or railway systems. The versatility of its functions allows integration into various control logics without additional components. Its high DC switching capacity makes it suitable for applications with high current loads.

Functions and Equipment in Detail
The device offers eight different time functions, selectable via a rotary switch: delay-on (AV), make-before-break function (EW), delayed pulse generator (IE), blink function with pulse start (BI), delay-off (RV), pulse shaper (IF), break-before-make function (AW), and delay-on/delay-off (AV/RV). The time functions are adjustable via a rotary switch, with settings taking effect only when the auxiliary voltage is switched on. The time ranges are adjustable in eight steps from 0.05 s to 300 h via another rotary switch. An adjustment aid enables quick and precise setting of long times, with the LED flash frequency serving as a reference.

Technology Explained Simply
The relay features two relay stages. Relay 1 is configured as a timer and provides 1 normally open contact and 2 normally closed contacts. Relay 2 can be switched between three operating modes via a rotary switch: as a timer (in parallel with Relay 1), as an immediate contact via auxiliary voltage A1/A2, or as an immediate contact via control input B1/B2. The contacts are mechanically forced-guided, ensuring secure and reliable switching even under high DC loads. LED indicators signal the operating voltage (green LED), the state of the output relay, and the timing process (yellow LED). The yellow LED displays continuous light, flashing light, or off depending on the operating state, providing visual status indication.

Compatibility and Accessories
The relay is designed for mounting on a DIN rail or via screw mounting. It is rated for operating voltages in the range AC/DC 24 to 230 V. The functions are adjustable via rotary switches, with settings taking effect only when the auxiliary voltage is switched on. The time functions can be combined with time interruption or time addition, increasing flexibility in complex control systems.

Mounting and Installation
Mounting is either on a DIN rail or via screw mounting. The width of 52.5 mm allows installation in standard enclosures. The terminal connections are clearly labeled: A1(+) / A2 for auxiliary voltage, B1(+) / B2 for control input, and contacts 17, 18, 27, 28, 35, 36, 15, 16, 47, 48, 57, 58, 65, 66, 33, 34, 43, 44, 31, 32 for relay outputs. Functions and time ranges are adjusted via rotary switches, with settings taking effect only when the auxiliary voltage is switched on.

Advantages in Operation
By combining eight functions in one device, the number of required components is reduced. The mechanically forced-guided contacts ensure high reliability when switching high DC loads. The LED indicators allow for quick visual inspection of the operating status. The adjustment aid for long times simplifies calibration, especially for long time intervals. Support for time addition and time interruption expands application possibilities in complex control systems. The mounting options (DIN rail/screw mounting) increase flexibility during installation in existing enclosures.

Technical data
Enclosure designSwitch cabinet
Output contacts2 NC contacts, 4 NO contacts
Time function(s)Flasher relay, Fleeting on break, Fleeting on make, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay, Pulse extender
Width52,5 mm
TypeSN 7920
Variant
Contact equipping2 x 2 NO contacts, 2 NC contacts
Nominal voltageAC/DC 24 - 230 V
Time range0,05 s - 300 h
Approvals and MarkingsUKCA
VariantTo switch high DC-loads with mechanical forcibly guided contacts


Product data sheet
Datasheet for Dold 0058785, EAN: 4030641587857

Questions & answers

What is the delivery time of Dold 0058785 SN7920.54 AC/DC24-230V 0.05S-300H multifunction relay ?

The article Dold 0058785 SN7920.54 AC/DC24-230V 0.05S-300H multifunction relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0058785 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0058785 SN7920.54 AC/DC24-230V 0.05S-300H multifunction relay always at the best possible price. We can give you a discount of 2% on Dold 0058785 SN7920.54 AC/DC24-230V 0.05S-300H multifunction relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0058785 SN7920.54 AC/DC24-230V 0.05S-300H multifunction relay we can offer you a price of 300,38 EUR per piece. The more you buy, the cheaper the article will be.
