Dold 0058718 MK9055N.38/500 1-120000IPM Hyst.=5% speed monitor AC230+DC24V 5S

Your rating:
Average rating
product review for Dold 0058718 MK9055N.38/500 1-120000IPM Hyst.=5% speed monitor AC230+DC24V 5S
( 4.6 / 5 ) 14 ratings

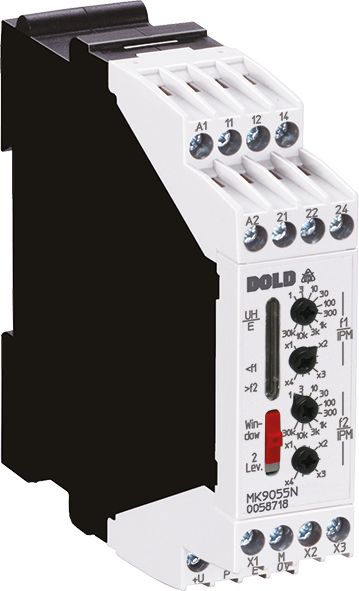

Dold 0058718
This image may differ from the desired article.
263,32 EUR
( 313,35 EUR incl. VAT )
≈ £220.40  |  ≈ $289.39
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0058718 MK9055N.38/500 1-120000IPM Hyst.=5% speed monitor AC230+DC24V 5S
Datasheet:file_download Download
Lieske Part No.:1320391
Mfg Part No: 0058718
UPC/EAN: 4030641587185
Weight:0.16 kg
Type:MK9055N.38/500 1-120000IPM Hyst.=5%
Graduated prices net
From piecesPrice per pieces
4261,35 EUR
8259,37 EUR
12257,40 EUR
16255,42 EUR

Product information for Dold 0058718:

The Dold speed monitor MK9055N.38/500 is designed for monitoring the speed of rotating machine parts and drives. It processes pulse signals, for example from proximity switches, and enables speed-dependent control in production processes. The device is designed for use in enclosures and offers a universal input configuration that supports various sensor types such as PNP, NPN, 2-wire, contacts or voltage signals. Monitoring is performed via two independent speed thresholds, with the trigger values for under-speed and over-speed being separately adjustable. The measurement range extends from 1 to 120,000 IPM (impulses per minute), with the response time optimized even at low speeds through frequency period measurement. The hysteresis is fixed at 5 %, ensuring stable switching behavior.

Applications

The speed monitor is suitable for monitoring rotating machine parts, cyclic lifting movements, and general pulse sequences in material handling, transport, and production technology. It can also be used for pulse frequency monitoring with flow sensors or anemometers. The application is in industrial environments where the safety of machines and produced goods must be ensured through early detection of speed deviations.

Functions and equipment in detail

The device features two separate relay outputs, each with a changeover contact, designated for under-speed and over-speed monitoring. The start-up bypass time is adjustable to 0 or 0.5 seconds, allowing short-term speed drops during start-up to be ignored. The alarm delay time is also configurable to 0 or 0.5 seconds. Programming is done via terminals, with options such as alarm memory or auto-reset available. LED indicators signal the status of the auxiliary voltage, input signal, and relay outputs. When using a NAMUR sensor, an additional LED indicates wiring or sensor faults.

Technology explained simply

The technology of the speed monitor is based on evaluating pulse signals generated by an external sensor. The frequency of these pulses is converted into speed and compared with the set threshold values. If a threshold is exceeded or undershot, the corresponding relay output is activated. The 5 % hysteresis ensures that the device does not switch uncontrollably due to minor fluctuations around the threshold. The auxiliary voltage can be supplied via AC 230 V (via terminals A1-A2) or DC 24 V (via +U / 0V). The width is 22.5 mm, enabling compact mounting in standard enclosures.

Compatibility and accessories

The speed monitor is configurable for various sensor types, including PNP, NPN, 2-wire, contacts, and voltage signals. Use of NAMUR sensors is also possible, with integrated sensor and wiring monitoring for open circuit and short circuit. Devices in the MK 9055N series are available in a compact design with a width of 22.5 mm, while the MH 9055 series has a width of 45 mm. The MK 9055N/5__ variant offers 2 x 1 changeover contacts, while the MH 9055/5__ variant offers 2 x 2 changeover contacts or a wide-range auxiliary voltage (AC/DC 24–60 V or AC/DC 110–230 V).

Mounting and installation

Mounting is done in an enclosure, with the width of 22.5 mm allowing for compact placement. The connection terminals are clearly labeled: A1-A2 for auxiliary voltage, IN+/- for input signal, X1-X3 for programming, M as reference point, UA/IA for analog output (optional), and +U/0V for alternative DC 24 V supply. Settings are adjusted via programming terminals, with values for start-up bypass, alarm delay, and reset behavior configured directly via terminals.

Advantages in operation

The speed monitor provides reliable and precise speed monitoring, protecting machines and produced goods from damage due to stoppage or over-speed. Simple and clear device configuration via terminals enables quick commissioning. The universal input configuration reduces the need for additional adapters or converters. LED indicators enable quick fault diagnosis during operation. The combination of AC 230 V and DC 24 V auxiliary voltage in one device increases installation flexibility. Compliance with IEC/EN 60255-1 ensures electrical safety and reliability of the device.

Technical data
ClassificationDrehzahlüberwachung
Enclosure designSwitch cabinet
Measuring range max.120000 IPM
Output contacts2 x 1 C/O contacts, 2 x 1 Wechsler
Width22,5 mm
TypeMK 9055N/5__
Variant
Auxiliary voltageAC 230 V + DC 24 V
Contact equipping2 x 1 changeover contact
Hysteresis5 % fixed
Response value1 - 120000 IPM
Start up delay0 / 0,5 s
Approvals and MarkingsUKCA
VariantUniversal input, for configuration of different sensors (PNP, NPN, 2-wire, contact, voltage). Monitoring of 2 speed levels


Product data sheet
Datasheet for Dold 0058718, EAN: 4030641587185

Questions & answers

What is the delivery time of Dold 0058718 MK9055N.38/500 1-120000IPM Hyst.=5% speed monitor AC230+DC24V 5S ?

The article Dold 0058718 MK9055N.38/500 1-120000IPM Hyst.=5% speed monitor AC230+DC24V 5S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0058718 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0058718 MK9055N.38/500 1-120000IPM Hyst.=5% speed monitor AC230+DC24V 5S always at the best possible price. We can give you a discount of 2% on Dold 0058718 MK9055N.38/500 1-120000IPM Hyst.=5% speed monitor AC230+DC24V 5S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0058718 MK9055N.38/500 1-120000IPM Hyst.=5% speed monitor AC230+DC24V 5S we can offer you a price of 261,35 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
