Dold 0058503 BI9023 UH AC115V+AC230V+DC24V 60A brake device 2AC200-480V 1-20S

Your rating:
Average rating
product review for Dold 0058503 BI9023 UH AC115V+AC230V+DC24V 60A brake device 2AC200-480V 1-20S
( 4.5 / 5 ) 43 ratings

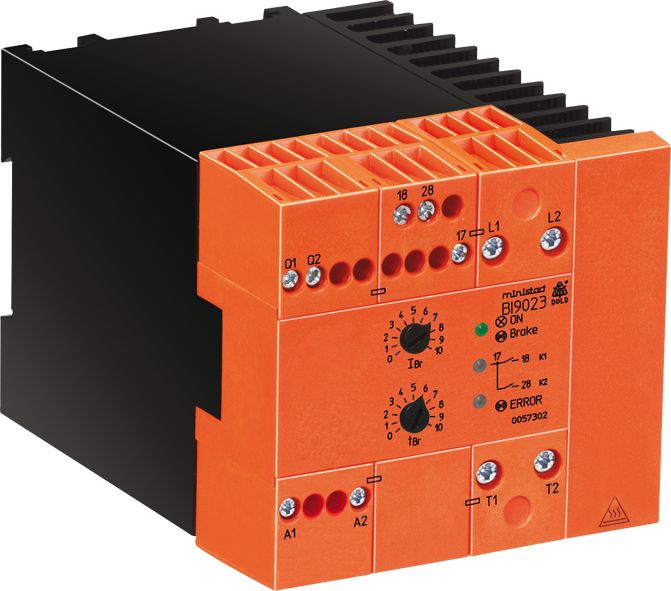

Dold 0058503
This image may differ from the desired article.
508,14 EUR
( 604,69 EUR incl. VAT )
≈ £425.31  |  ≈ $558.45
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0058503 BI9023 UH AC115V+AC230V+DC24V 60A brake device 2AC200-480V 1-20S
Datasheet:file_download Download
Lieske Part No.:302646
Mfg Part No: 0058503
UPC/EAN: 4030641585037
Weight:0.84 kg
Type:BI9023 UH AC115V+AC230V+DC24V 60A
Graduated prices net
From piecesPrice per pieces
3500,52 EUR
6492,90 EUR
9485,27 EUR
12477,65 EUR

Product information for Dold 0058503:

The Dold brake device BI9023 UH AC115V+AC230V+DC24V 60A is an electronic motor brake device for use in industrial drive systems. It is designed for controlled braking of asynchronous motors, particularly in machines used in wood processing, textile industry, conveyor systems, centrifuges, and sawing machines. The device operates on the principle of direct current braking with single-phase rectification and enables wear-free and maintenance-free braking, which can be directly mounted on a 35 mm standard rail. The braking function is implemented via an external brake contactor, which is controlled by the device.

Applications
This device is designed for use in industrial drive systems, particularly in machines requiring safe and precise braking. These include sawing machines, centrifuges, wood processing machines, textile machines, and conveyor systems. Braking is achieved by injecting direct current into the stator winding of the motor, generating a magnetic field that slows down the motor. The application is universal for all asynchronous motors, with braking performance optimized by adjusting the braking current and braking time.

Functions and Equipment in Detail
The brake device features an adjustable braking time from 1 to 20 seconds, set via a potentiometer. The braking time determines the duration during which the braking current flows through the motor windings. Additionally, the braking current is adjustable up to a maximum of 80 A, with the rated value for this device being 60 A. Adjustment is also done via a potentiometer, with the actual current depending on the applied voltage and the resistance of the motor windings. Maximum braking power is achieved when the braking current is approximately 1.8 to 2 times the motor's rated current, ensuring optimal braking effect without thermal overload.

Technology Explained Simply
Braking is achieved through phase-cut control, where direct voltage is generated via a single-phase rectifier. Voltage is connected at terminals L1–L2, while auxiliary voltage is applied at A1–A2. Control is managed by an internal relay (K1 and K2), which synchronizes switching operations. Upon deactivation of the motor contactor, the brake contactor is activated after a fixed safety delay (750 ms) to ensure the motor contactor has fully dropped out before braking current flows. This prevents damage from induced voltages. After the set braking time has elapsed, the brake contactor is deactivated again, and the device is ready for a new start (ready time 350 ms).

Compatibility and Accessories
The device is designed for rated voltages of 2AC 200 to 480 V and supports auxiliary voltages of AC 115 V, AC 230 V, and DC 24 V. Compatibility with various voltages allows flexible integration into existing systems. An external brake contactor is required to implement the braking function. The device includes an alarm output and temperature monitoring, indicated by an LED display (green, yellow, red) showing the operating status. Fault codes are indicated by blinking LED patterns, e.g., missing supply voltage (fault code 4) or overtemperature at the thyristor (fault code 1).

Mounting and Installation
Mounting is done by clipping onto a 35 mm standard rail, enabling easy integration into existing enclosures. Connections are clearly labeled: L1–L2 for braking supply, A1–A2 for auxiliary voltage, Q1–Q2 for the interlock contact of the motor contactor, and T1–T2 for output of the braking direct voltage. The width is 90 mm. Installation requires no special tools, and the connection assignment is detailed in the datasheet.

Advantages in Operation
The device provides reliable, wear-free braking without requiring mechanical brake components. Electronic control allows precise adjustment of braking time and braking current, facilitating adaptation to different motor sizes and applications. Temperature monitoring and alarm output enhance operational safety. Compliance with standard IEC/EN 60947-4-2 ensures conformity with industrial safety requirements. UKCA approval confirms suitability for use in the United Kingdom.

Technical data
Braking current adjustable up to max.80 A
Braking time adjustable up to max.20 s
Width90 mm
TypeBI 9023
External brake contactor requiredYes
Signalling outputYes
Temperature monitoringYes
Variant
Auxiliary voltageAC 115 V + AC 230 V + DC 24 V
Braking current60 A
Braking time1 - 20 s
Contact equipping2 NO contacts
Nominal voltage2AC 200 - 480 V
Approvals and MarkingsUKCA
VariantAdjustable braking time 1 ... 20 s


Product data sheet
Datasheet for Dold 0058503, EAN: 4030641585037

Questions & answers

What is the delivery time of Dold 0058503 BI9023 UH AC115V+AC230V+DC24V 60A brake device 2AC200-480V 1-20S ?

The article Dold 0058503 BI9023 UH AC115V+AC230V+DC24V 60A brake device 2AC200-480V 1-20S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0058503 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0058503 BI9023 UH AC115V+AC230V+DC24V 60A brake device 2AC200-480V 1-20S always at the best possible price. We can give you a discount of 2% on Dold 0058503 BI9023 UH AC115V+AC230V+DC24V 60A brake device 2AC200-480V 1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0058503 BI9023 UH AC115V+AC230V+DC24V 60A brake device 2AC200-480V 1-20S we can offer you a price of 500,52 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
