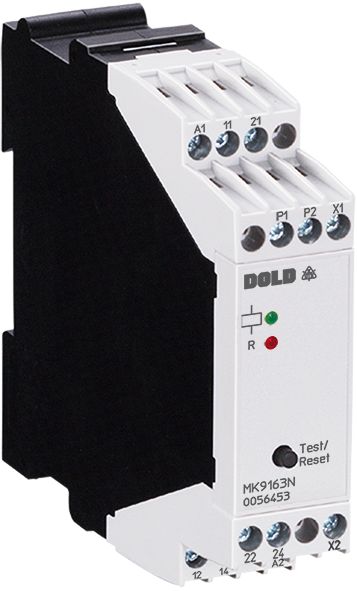

Dold 0056454 MK9163N.12/210 ATEX AC 50/60 Hz 230 V thermistor motor protection relay

Your rating:
Average rating
product review for Dold 0056454 MK9163N.12/210 ATEX AC 50/60 Hz 230 V thermistor motor protection relay
( 4.5 / 5 ) 47 ratings
Dold 0056454
This image may differ from the desired article.
Dold 0056454Dold 0056454
105,06 EUR
( 125,02 EUR incl. VAT )
≈ £87.94  |  ≈ $115.46
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056454 MK9163N.12/210 ATEX AC 50/60 Hz 230 V thermistor motor protection relay
Datasheet:file_download Download
Lieske Part No.:1312753
Mfg Part No: 0056454
UPC/EAN: 4030641564544
Weight:0.185 kg
Type:MK9163N.12/210 ATEX AC50/60HZ230V
Graduated prices net
From piecesPrice per pieces
5101,12 EUR
1097,18 EUR
1593,24 EUR
2089,30 EUR

Product information for Dold 0056454:

The Dold MK9163N.12/210 ATEX AC50/60HZ230V is a thermistor motor protection relay designed for use in industrial installations, particularly in explosive atmospheres. It serves for temperature monitoring of electric motors, bearings, gearboxes, oils, and coolants, preventing thermal overloads caused by high switching frequency, heavy start-up, single-phasing, impaired cooling, or high ambient temperature. The device is designed for installation in enclosures and provides reliable fault detection as well as rapid localization of disturbances in the drive system.

Applications
This relay is specifically designed for use in ATEX-protected areas, where increased safety requirements apply to electrical equipment. It is suitable for monitoring motors in manufacturing, process engineering, paper and textile industries, and other sectors requiring continuous and safe operation. The application also includes monitoring of bearing and gearbox temperatures, as well as coolant temperatures in industrial machinery.

Functions and Features in Detail
The device detects temperature exceedances, wire breaks in the sensor circuit, and short circuits in the sensor circuit. It features an input for 3 or 6 thermistors, allowing multiple measurement points to be monitored in parallel. The function is based on the standby current principle, where the output relay is not activated in case of fault, enabling safe and precise fault detection. The LED indicator signals the operating status of the auxiliary voltage and the contact position of the relay. The reset and test function is performed via a button on the device; only the reset function is available at terminals X1/X2.

Technology Explained Simply
The thermistor motor protection technology uses resistance changes in thermistors, which are temperature-dependent, to measure the temperature of the monitored component. The device’s measurement range extends beyond 3.8 kΩ, enabling precise detection of temperature changes. The auxiliary voltage can be operated in both AC and AC/DC environments, with a rated voltage of AC 230 V. The fixed terminal blocks with screw terminals allow for secure and durable connection of wires. The permissible conductor cross-sections are 2 x 1.5 mm² stranded wire with ferrule and plastic collar or 2 x 2.5 mm² solid, according to DIN 46 228-1/-2/-3/-4.

Compatibility and Accessories
The device is equipped with 2 changeover contacts as output contacts, enabling flexible integration into existing circuits. It is designed for installation in enclosures and has a mounting width of 22.5 mm, ensuring compact installation in standard control panels. The ATEX certification ensures safe use in explosive environments. Optional plug-in terminal blocks are available, enabling quick device replacement.

Mounting and Installation
Mounting is performed in an enclosure using the fixed screw terminals. The terminal connections are designed for the specified conductor cross-sections, and the use of ferrules and plastic collars is recommended to ensure a secure connection. The terminal assignment is detailed in the datasheet. Installation must comply with technical specifications and applicable standards, particularly EN 60947-5-1, EN 60947-8, EN 60079-14, EN 61508, EN 50495, EN 13849.

Operational Advantages
The relay enables rapid fault localization and prevents unwanted operational interruptions through short-circuit detection and wire break detection. The LED indicator provides a visual overview of the operating status, making maintenance work more efficient. The fault memory function (optional) allows documentation of disturbances, which is helpful for diagnosing operational failures. The ATEX certification ensures safety in hazardous areas without compromising functionality.

Technical data
Auxiliary voltageAC, AC/DC
ClassificationThermistor-Motorschutz
Enclosure designSwitch cabinet
Measuring range max.> 3.8 kΩ
Output contacts2 C/O contacts
Width22,5 mm
TypeMK 9163N ATEX
Variant
Contact equipping2 changeover contacts
Nominal voltageAC 230 V
Terminal typefixed terminal blocks with screw terminals
Approvals and MarkingsATEX
VariantWith short circuit detection. With RESET and test function via built in button. At X1/X2 RESET function only


Product data sheet
Datasheet for Dold 0056454, EAN: 4030641564544
