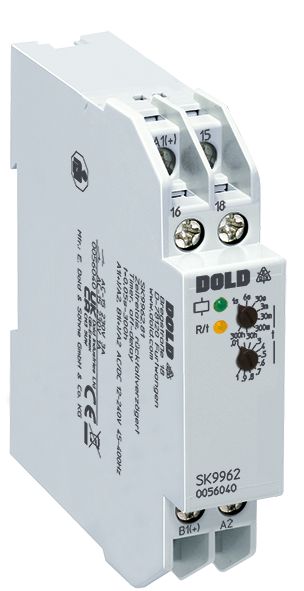

Dold 0056040 SK9962.81 AC/DC12-240V 0.05S-300H time relay delayed return

Your rating:
Average rating
product review for Dold 0056040 SK9962.81 AC/DC12-240V 0.05S-300H time relay delayed return
( 4.5 / 5 ) 11 ratings
Dold 0056040
This image may differ from the desired article.
117,80 EUR
( 140,18 EUR incl. VAT )
≈ £98.60  |  ≈ $129.46
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056040 SK9962.81 AC/DC12-240V 0.05S-300H time relay delayed return
Datasheet:file_download Download
Lieske Part No.:1312968
Mfg Part No: 0056040
UPC/EAN: 4030641560409
Weight:0.123 kg
Type:SK9962.81 AC/DC12-240V 0,05S-300H
Graduated prices net
From piecesPrice per pieces
5113,38 EUR
10108,97 EUR
15104,55 EUR
20100,13 EUR

Product information for Dold 0056040:

The Dold time relay SK9962.81 AC/DC12-240V 0,05S-300H is a drop-out delayed time relay for industrial applications, designed in accordance with standard EN 61812-1. It is used for time-delayed control of electrical loads, where the output contact switches only after a set delay time has elapsed following deactivation of the control signal. The width is 17.5 mm, and the device is designed for use in enclosures, with connection terminals located at the top. The auxiliary voltage and control input can be operated with voltages in the range AC/DC 12 to 240 V.

Applications
This relay is suitable for applications requiring time-delayed deactivation, for example in motor control, lighting systems, or safety functions in production plants. The drop-out delay allows the output to remain active for a defined period even after the control signal has been switched off. This is particularly useful in processes where immediate deactivation could cause disturbances or damage.

Functions and Equipment in Detail
The device features a changeover contact as the output contact, suitable for controlling loads. The time delay is adjustable via a rotary switch in eight time ranges from 0.05 seconds to 300 hours. An adjustment aid enables quick and precise setting of long times by using the blinking frequency of the yellow LED (1 second ± 4%) as a reference. The yellow LED indicates the operating status: steady light means the output relay is activated, flashing light indicates the timing process. A green LED indicates that the auxiliary voltage is present.

Technology Explained Simply
The time function is activated by a control signal input (B1), which is potential-referenced to A2. The auxiliary voltage must be continuously applied to A1/A2. The device does not require a potential-free control contact, simplifying installation. The time delay is implemented by an internal timer programmed via the rotary switch. Adjustment is made directly on the device; changing the setting during timing may cause unintended switching operations.

Compatibility and Accessories
The relay features a connection option for a remote potentiometer (10 kΩ), connected via terminals Z1-Z2. This enables remote fine adjustment of the timing, with the rotary knob on the device set to minimum. The remote potentiometer wiring should be routed separately from AC mains voltage lines; if routed together, shielded cable is recommended, with the shield connected to Z1. Terminals Z1-Z2 are not galvanically isolated from A1/A2, so no foreign voltage potentials may be connected.

Mounting and Installation
The device is designed for installation in enclosures, with a depth of 98 mm. The terminals are located at the top, facilitating installation on mounting plates and in cable ducts. Installation is carried out in the usual manner in enclosures with mounting plate. Terminal designations are clearly defined: A1/A2 for auxiliary voltage, B1 for control input, 15-16-18 for the changeover contact.

Operational Advantages
The combination of a wide voltage range, eight adjustable time ranges, and the possibility of remote control via a remote potentiometer makes the device highly flexible. The LED indicators simplify diagnosis and maintenance, as the operating status is visually recognizable. The adjustment aid for long times reduces setup time and increases accuracy. The enclosure-compatible design and compact width of 17.5 mm enable efficient space utilization in electrical control systems.

Approvals and Markings
The device bears the UKCA mark, confirming compliance with applicable European safety and operational requirements. Manufacturing is carried out in accordance with the requirements of standard EN 61812-1, which applies to time relays.

Enclosure Design
The housing is designed for use in enclosures, with terminals located at the top. The SK 9962 design is specifically intended for enclosures with mounting plate and cable duct.

Time Function
The time function is drop-out delayed with control signal, meaning the output contact remains active for the set time after the control signal is switched off.

Remote Potentiometer Connection
The connection option for a remote potentiometer (10 kΩ) via terminals Z1-Z2 enables remote fine adjustment of the timing. Terminals Z1-Z2 are not galvanically isolated from A1/A2, so no foreign voltage potentials may be connected.

LED Indicators
The green LED indicates that the auxiliary voltage is present. The yellow LED indicates the operating status: steady light means the output relay is activated, flashing light indicates the timing process.

Control Input
The control input B1 is operated with voltage relative to A2. The control voltage can be in the range AC/DC 12 to 240 V and does not need to match the auxiliary voltage. A parallel load resistor (e.g. a contactor) between B1 and A2 is permissible.

Adjustment Aid
The adjustment aid uses the blinking frequency of the yellow LED (1 second ± 4%) as a reference to quickly and precisely set long times. The multiplication factors between time ranges are exact, making the adjustment aid particularly useful.

Width
The width is 17.5 mm, enabling compact installation in enclosures.

Enclosure Design
The device is designed for use in enclosures, with terminals located at the top. The SK 9962 design is specifically intended for enclosures with mounting plate and cable duct.

Time Function
The time function is drop-out delayed with control signal, meaning the output contact remains active for the set time after the control signal is switched off.

Remote Potentiometer Connection
The connection option for a remote potentiometer (10 kΩ) via terminals Z1-Z2 enables remote fine adjustment of the timing. Terminals Z1-Z2 are not galvanically isolated from A1/A2, so no foreign voltage potentials may be connected.

LED Indicators
The green LED indicates that the auxiliary voltage is present. The yellow LED indicates the operating status: steady light means the output relay is activated, flashing light indicates the timing process.

Control Input
The control input B1 is operated with voltage relative to A2. The control voltage can be in the range AC/DC 12 to 240 V and does not need to match the auxiliary voltage. A parallel load resistor (e.g. a contactor) between B1 and A2 is permissible.

Adjustment Aid
The adjustment aid uses the blinking frequency of the yellow LED (1 second ± 4%) as a reference to quickly and precisely set long times. The multiplication factors between time ranges are exact, making the adjustment aid particularly useful.

Width
The width is 17.5 mm, enabling compact installation in enclosures.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)Off-delay, with control signal
Width17,5 mm
TypeSK 9962
Connection facility for remote potentiometerYes
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 12 - 240 V
Time range0,05 s - 300 h
Approvals and MarkingsUKCA
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0056040, EAN: 4030641560409

Questions & answers

What is the delivery time of Dold 0056040 SK9962.81 AC/DC12-240V 0.05S-300H time relay delayed return ?

The article Dold 0056040 SK9962.81 AC/DC12-240V 0.05S-300H time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0056040 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0056040 SK9962.81 AC/DC12-240V 0.05S-300H time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0056040 SK9962.81 AC/DC12-240V 0.05S-300H time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0056040 SK9962.81 AC/DC12-240V 0.05S-300H time relay delayed return we can offer you a price of 113,38 EUR per piece. The more you buy, the cheaper the article will be.
