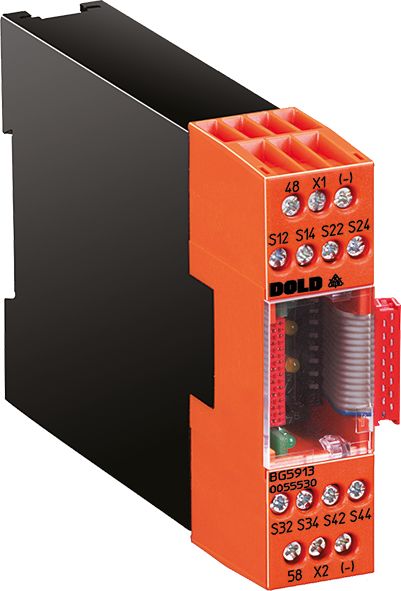

Dold 0055530 BG5913.08/00MF0 DC24V input module
|
412,81 EUR |
|||||||||||
|
( 491,24 EUR incl. VAT ) ≈ £345.52 | ≈ $453.68 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312988 | ||||||||||
| Mfg Part No: | 0055530 | ||||||||||
| UPC/EAN: | 4030641555306 | ||||||||||
| Weight: | 0.193 kg | ||||||||||
| Type: | BG5913.08/00MF0 DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0055530:
Applications
This module is intended for use in machines and plants where safe shutdown is required. It is frequently used in machining centres, robotic cells, machine tools, injection moulding and packaging machines, as well as in complete production lines. The functions can be configured easily and without programming via rotary switches, simplifying commissioning and maintenance. The modular design allows flexible adaptation to different monitoring tasks and system expansion through additional modules.
Functions and Equipment in Detail
The input module features eight inputs for command devices, used to connect safety switches, pushbuttons or other sensors. The nominal voltage is DC 24 V, which represents a standard supply in industry. The outputs are configured as semiconductor outputs, with two outputs per module dedicated to status indication. These enable visual monitoring of the operating status via LEDs. An integrated wire break and short-circuit monitoring ensures reliability of input signals and indicates faults via LEDs.
Technology Explained Simply
The module is part of a software-free safety system, where functions are set not via programming but through mechanical switches (rotary switches). This reduces effort for configuration, maintenance and training. Safety functions are implemented via redundant circuits, ensuring high availability and reliability. The integrated diagnostic function via LEDs and semiconductor alarm outputs enables quick fault localization.
Compatibility and Accessories
The module is designed for use in the SAFEMASTER M system and can be combined with other modules of this system. It is compatible with output modules supporting redundant, safety-related contacts according to Category 4 and Performance Level e (EN ISO 13849-1) as well as SIL 3 (IEC/EN 62061). System components can be hierarchically grouped, enabling complex safety functions. An optional fieldbus connection allows transmission of system status to other bus participants, facilitating integration into existing automation systems.
Mounting and Installation
The module has a width of 22.5 mm and is designed for mounting in standard 35 mm control panels. Installation is performed by simply plugging it into the module board of the SAFEMASTER M system. The assignment of inputs to outputs is done via internal switches, eliminating the need for additional programming. Wiring is simple and reduces installation effort.
Advantages in Operation
The module offers a cost-efficient alternative to conventional or programmable safety components. Simple configuration without software and modular expandability reduce design and maintenance times. The integrated diagnostic function via LEDs and semiconductor outputs enables rapid fault detection. Certifications CSA C/US and TÜV confirm compliance with international safety standards. Safety levels Category 4, PL e according to EN ISO 13849-1, as well as SIL 3 according to IEC/EN 62061 and IEC/EN 61508, guarantee a high protection standard for applications in critical areas.
| Technical data | |
| Application | Emergency stop, Light barrier, Safety gate, Two-hand |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Safety integrity level according to EN 574 | lll A, lll C |
| Width | 22,5 mm |
| Type | BG 5913.08/_0___ |
| Variant | |
| Contact equipping | 8 inputs for control units |
| Nominal voltage | DC 24 V |
| Approvals and Markings | CSA C/US, TÜV |
Questions & answers
What is the delivery time of Dold 0055530 BG5913.08/00MF0 DC24V input module ?
The article Dold 0055530 BG5913.08/00MF0 DC24V input module is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0055530 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0055530 BG5913.08/00MF0 DC24V input module always at the best possible price. We can give you a discount of 2% on Dold 0055530 BG5913.08/00MF0 DC24V input module if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0055530 BG5913.08/00MF0 DC24V input module we can offer you a price of 406,62 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
