Dold 0055515 SL5882.38 AC/DC24-230V 10A tv=5S residual current monitor
|
312,66 EUR |
|||||||||||
|
( 372,07 EUR incl. VAT ) ≈ £261.70 | ≈ $343.61 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 980810 | ||||||||||
| Mfg Part No: | 0055515 | ||||||||||
| UPC/EAN: | 4030641555153 | ||||||||||
| Weight: | 0.172 kg | ||||||||||
| Type: | SL5882.38AC/DC24-230Vtv=5S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0055515:
Applications
The differential current monitor is used in earthed electrical networks to detect insulation degradation at an early stage. It is suitable for installations where immediate shutdown upon fault detection is not required, and instead, a visual or signaling indication is sufficient to alert maintenance personnel. Typical applications include industrial enclosures, production systems, building automation, and other systems where high availability is required.
Functions and Equipment in Detail

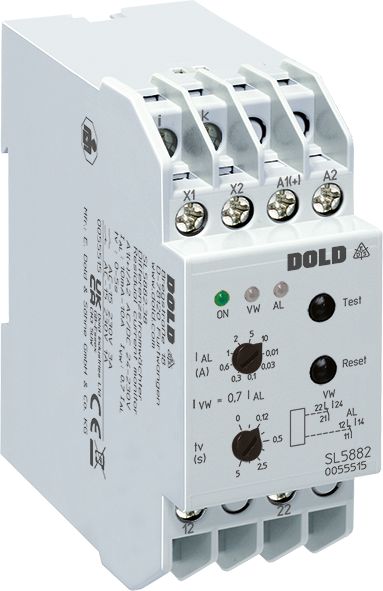

The device features two relay contacts: one changeover contact for pre-warning and one changeover contact for alarm. These enable a differentiated response to different fault levels. The pre-warning is triggered at a lower threshold, while the alarm is activated at a higher threshold. Indication is provided via LED indicators: a green LED indicates the presence of auxiliary voltage, while red LEDs signal pre-warning and alarm. A test button allows functional testing, and a reset button is used to reset the device after an alarm. The threshold settings are adjusted via rotary switches, which are protected against unauthorized changes by a sealable transparent cover.
Technology Explained Simply
The differential current monitor operates on the residual current principle, where the output relay is not activated in the event of a fault, but only an indication is provided. Measurement is performed via an external differential current transformer connected to terminals i and k. All conductors of the monitored network (excluding PE) are passed through the transformer. In a fault-free condition, the sum of all currents is zero, so no voltage is induced in the transformer. In the event of an insulation fault, a fault current flows to earth, creating a current difference that is detected by the transformer and evaluated by the device. The wire break detection ensures that an interruption in the sensor circuit is recognized to prevent malfunction.
Compatibility and Accessories
The device is designed for connection to external differential current transformers, for example, models ND 5016, ND 5019, or the hinged current transformer ND 5014. The measurement ranges are adjustable and include values from 0.01 to 10 A and from 0.01 to 30 A. The time delay is fixed at 5 seconds and can be used to avoid flickering with pulsating fault currents. The auxiliary voltage can be operated in the range of AC/DC 24 to 230 V.
Mounting and Installation
The differential current monitor SL5882 is designed for mounting in enclosures. It has a mounting width of 35 mm and a mounting depth of 100 mm. The connection terminals are located at the top, which facilitates installation in enclosures with mounting plates and cable ducts. Installation guidelines comply with requirements for enclosure systems.
Operational Advantages
Early detection of insulation faults increases system availability and reduces the risk of fires. The optional storage of the alarm value enables subsequent analysis. The short response time and wire break detection ensure reliable operation. Compliance with IEC/EN 62020 and classification as Type A for alternating and pulsating direct currents according to IEC/TR 60755 ensures technical reliability. The UKCA approval confirms conformity with applicable European requirements.
| Technical data | |
| Adjustable measuring ranges | 0,01 - 10 A, 0,01 - 30 A |
| Classification | Type A (AC, DC pulsating) |
| Enclosure design | Switch cabinet |
| Type of voltage | AC, DC pulsating |
| Width | 35 mm |
| Type | SL 5882 |
| Broken conductor detection | |
| Clear key | |
| Operate delay | |
| Relay contact / output | |
| Test key | |
| Variant | |
| Auxiliary voltage | AC/DC 24 - 230 V |
| Contact equipping | 1 changeover contact for prewarning, 1 changeover contact for alarm |
| Measuring range | 10 A |
| Time delay | 5 s |
| Approvals and Markings | UKCA |
