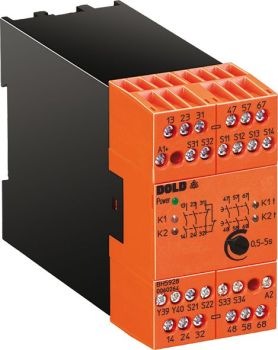

Dold 0055184 BH5928.47/61 DC24V 0.1-1S NOT-AUS module
|
507,41 EUR |
|||||||||||
|
( 603,82 EUR incl. VAT ) ≈ £424.70 | ≈ $557.64 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 314007 | ||||||||||
| Mfg Part No: | 0055184 | ||||||||||
| UPC/EAN: | 4030641551841 | ||||||||||
| Weight: | 0.428 kg | ||||||||||
| Type: | BH5928.47DC24V0,1-1S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0055184:
Applications
This safety relay is intended for use in machine controls and systems with increased safety requirements. It is particularly used in the manufacturing industry, machine building, and systems with moving parts, where immediate and reliable shutdown is required in case of danger. Its function as a safety door monitor makes it suitable for monitoring the status of sliding safety guards and automatically shutting down the machine upon opening. Integration into emergency stop circuits enables the realization of stop category 1 in accordance with EN ISO 13849-1.
Functions and equipment in detail
The device features contact configuration with 3 closers, 1 immediate opener, and 1 delayed closer. The output contacts are designed to allow up to 3 immediate closers and 3 delayed closers. The adjustable time delay ensures controlled shutdown to safely end mechanical loads or processes. The status indicator for the delayed time circuit enables visual monitoring of the operating state. LED indicators signal the power supply status, the status of channels 1 and 2, and the active time delay, simplifying fault diagnosis.
Technology explained simply
The safety relay operates according to standards for safety-related controls. It complies with Performance Level (PL) e and Category 4 according to EN ISO 13849-1, representing the highest requirement for safety functions. Additionally, it meets the requirements for SIL 3 (Safety Integrity Level) according to IEC/EN 62061 and IEC/EN 61508, guaranteeing reliability and fault-free operation in safety-critical applications. The cross-connection detection identifies faults in the emergency stop control circuit caused by accidental connections between wires, thus preventing false shutdowns. The connection technology uses removable screw terminals, enabling flexible and secure wiring. The maximum thermal current rating is 5 A, defining the contact load capacity.
Compatibility and accessories
The module is suitable for 1- or 2-channel wiring, allowing flexible integration into various safety architectures. Activation occurs either via a single button at terminals S33–S34 or via an automatic single-function with a bridge at S13–S14. Wire connection options include 2 x 1.5 mm² stranded wire with ferrule and plastic sleeve DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm² stranded wire with ferrule DIN 46 228-1/-2/-3. Certifications include UL-listed C/US, TÜV, and CCC, ensuring international usability of the device.
Mounting and installation
Mounting is done in standard control panels with a width of 45 mm. The removable terminal blocks facilitate installation and maintenance. The connection terminals are clearly labeled to ensure error-free wiring. Circuit diagrams in the datasheet support correct integration into existing safety circuits. The status indicators assist during commissioning and fault diagnosis.
Advantages in operation
The safety relay offers high reliability by complying with the highest safety standards. The adjustable time delay allows application-specific adaptation, while cross-connection detection ensures the integrity of the control circuit. The LED indicators reduce error rates during commissioning and maintenance. The combination of compact design and comprehensive safety functions makes the device a robust solution for critical applications in industry.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable screw terminals |
| Output contacts max. | 3 NO contacts, 3 NO contacts delayed |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 5 A |
| Width | 45 mm |
| Type | BH 5928 |
| Cross fault detection | |
| Suited as safety gate monitor | |
| Variant | |
| Contact equipping | 3 NO contacts, 1 NC contact instantaneous, 1 NO contact off delay |
| Nominal voltage | DC 24 V |
| Time range | 0,1 - 1 s |
| Approvals and Markings | UL-listed C/US, TÜV, CCC |
| Variant | With adjustable time delay |
Questions & answers
What is the delivery time of Dold 0055184 BH5928.47/61 DC24V 0.1-1S NOT-AUS module ?
The article Dold 0055184 BH5928.47/61 DC24V 0.1-1S NOT-AUS module is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0055184 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0055184 BH5928.47/61 DC24V 0.1-1S NOT-AUS module always at the best possible price. We can give you a discount of 2% on Dold 0055184 BH5928.47/61 DC24V 0.1-1S NOT-AUS module if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0055184 BH5928.47/61 DC24V 0.1-1S NOT-AUS module we can offer you a price of 499,80 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
