Dold 0054792 IL9271.11/500 AC220-240V 0.1-50A undercurrent relay Tv=0.1-20S

Your rating:
Average rating
product review for Dold 0054792 IL9271.11/500 AC220-240V 0.1-50A undercurrent relay Tv=0.1-20S
( 4.3 / 5 ) 4 ratings

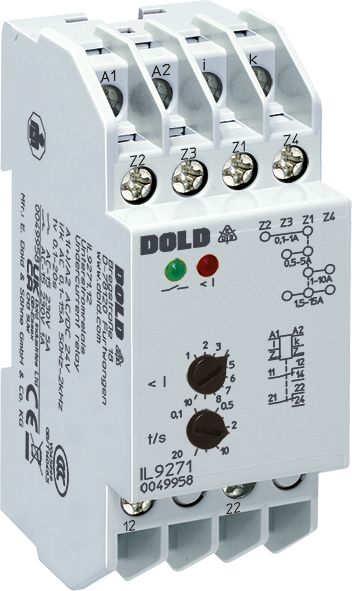

Dold 0054792
This image may differ from the desired article.
257,07 EUR
( 305,91 EUR incl. VAT )
≈ £215.17  |  ≈ $282.52
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054792 IL9271.11/500 AC220-240V 0.1-50A undercurrent relay Tv=0.1-20S
Datasheet:file_download Download
Lieske Part No.:1583545
Mfg Part No: 0054792
UPC/EAN: 4030641547929
Weight:0.147 kg
Type:IL9271.11/500 AC220-240V 0,1-50A
Graduated prices net
From piecesPrice per pieces
4255,14 EUR
8253,21 EUR
12251,29 EUR
16249,36 EUR

Product information for Dold 0054792:

The Dold undercurrent relay IL9271.11/500 is a single-phase current monitoring device for alternating and rotating current networks, designed for use in installation and industrial distribution systems. It monitors current flow and de-energizes the output contact when the set pickup value is undershot, applying the rest current principle – meaning the output relay is not activated in the event of a fault. The auxiliary voltage is AC 220–240 V, and the device features an adjustable measuring range from 0.1 to 50 A, which can be set in five steps via a rotary switch. The switching delay is also adjustable and ranges from 0.1 to 20 seconds. The width is 35 mm, and the device is designed for mounting in installation distributors according to DIN 43880.

Applications
IL9271.11/500 is suitable for monitoring electrical systems where continuous current flow is required, for example in pump control systems, fan installations, or for monitoring motors and transformer systems. It is used to trigger a reaction in case of undercurrent situations, which may indicate malfunction, short circuit, or interruption in the circuit, such as switching off a motor or triggering an alarm. The galvanic isolation between the auxiliary circuit and the measuring circuit ensures safe and interference-free measurement.

Functions and Equipment in Detail
The device features a changeover contact as output contact, which is de-energized under undercurrent conditions. The pickup values are adjustable via a rotary switch, with hysteresis fixed at approximately 4%. LED indicators signal the operating status: a green LED lights up when current is within the specified limits (normal condition), and a red LED lights up in case of undercurrent. The switching delay allows for time-delayed response, filtering out short-term current fluctuations and avoiding false tripping.

Technology Explained Simply
IL9271.11/500 operates on the rest current principle, where the output contact is active during normal operation and de-energized under undercurrent conditions. This is particularly useful in systems where power failure requires immediate reaction. Measurement is performed via a current measuring circuit, galvanically separated from the auxiliary circuit, to avoid interference and voltage influences. The auxiliary voltage is supplied via terminals A1 and A2, while the current measuring circuit is connected via terminals i and k. The measuring ranges are set via a rotary switch, which allows five different settings.

Compatibility and Accessories
The device is designed for use in single-phase networks and can be mounted in installation distributors according to DIN 43880. It is compatible with other devices from the IL and SL series, which also offer single-phase monitoring functions. The width of 35 mm allows mounting in standard distribution boxes. The connection terminals are arranged at the bottom, typical for the I form factor. IL series devices are available in various variants, with IL9271.11/500 being the variant with 5 adjustable measuring ranges and 1 changeover contact.

Mounting and Installation
Mounting is done in an installation distributor with a width of 35 mm. The connection terminals are located at the bottom, facilitating integration into existing control systems. The auxiliary voltage is connected via terminals A1 and A2, and the current measuring circuit via i and k. The measuring range settings are adjusted via a rotary switch located on the front of the device. The LED indicators serve for visual monitoring of the operating status.

Advantages in Operation
IL9271.11/500 offers precise and reliable current monitoring with adjustable parameters that can be adapted to the specific requirements of the system. The galvanic isolation between measuring and auxiliary circuits ensures high safety. The LED indicators allow for quick visual control of the operating status. The adjustable switching delay reduces the likelihood of false tripping due to short-term current fluctuations. The device complies with standards IEC/EN 60255-1 and is certified with UKCA and CCC, confirming compliance with European and Chinese safety standards.

Technical data
1- / 3-phase1
Enclosure designDistribution board
Output contacts1 C/O contact, 2 C/O contacts
Width35 mm
TypeIL 9271
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping1 changeover contact
Measuring range0,1 - 50 A
Switching delay0,1 - 20 s
Approvals and MarkingsUKCA, CCC
VariantSingle phase current relay. De-energized on trip. With 5 measuring ranges settable with switch


Product data sheet
Datasheet for Dold 0054792, EAN: 4030641547929

Questions & answers

What is the delivery time of Dold 0054792 IL9271.11/500 AC220-240V 0.1-50A undercurrent relay Tv=0.1-20S ?

The article Dold 0054792 IL9271.11/500 AC220-240V 0.1-50A undercurrent relay Tv=0.1-20S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054792 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054792 IL9271.11/500 AC220-240V 0.1-50A undercurrent relay Tv=0.1-20S always at the best possible price. We can give you a discount of 2% on Dold 0054792 IL9271.11/500 AC220-240V 0.1-50A undercurrent relay Tv=0.1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0054792 IL9271.11/500 AC220-240V 0.1-50A undercurrent relay Tv=0.1-20S we can offer you a price of 255,14 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
