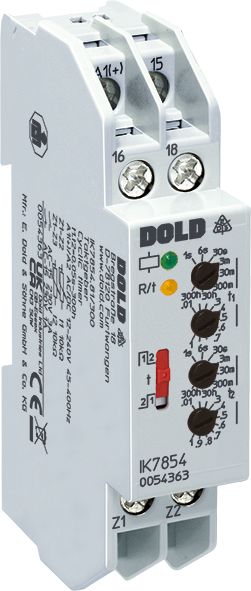

Dold 0054362 IK7854.81 AC/DC12-240V 0.05S-300H timing relay

Your rating:
Average rating
product review for Dold 0054362 IK7854.81 AC/DC12-240V 0.05S-300H timing relay
( 4.6 / 5 ) 19 ratings
Dold 0054362
This image may differ from the desired article.
166,36 EUR
( 197,97 EUR incl. VAT )
≈ £139.24  |  ≈ $182.83
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054362 IK7854.81 AC/DC12-240V 0.05S-300H timing relay
Datasheet:file_download Download
Lieske Part No.:925384
Mfg Part No: 0054362
UPC/EAN: 4030641543624
Weight:0.123 kg
Type:IK7854.81AC/DC12-240V0,05S-300H
Graduated prices net
From piecesPrice per pieces
5158,87 EUR
10151,39 EUR
15143,90 EUR
20136,42 EUR

Product information for Dold 0054362:

The Dold IK7854.81AC/DC12-240V0,05S-300H is an asymmetric flash relay of the IK 7854 series, developed for time-dependent control applications in industrial and installation environments. It serves as a timing generator with adjustable pulse and pause times and is designed for operating voltages in the range AC/DC 12 to 240 V. The device features a width of 17.5 mm and is constructed in the installation distributor form, with connection terminals located at the bottom and a depth of 59 mm. The timing function enables flexible control of processes requiring repeated, time-controlled activation of an output, for example in lighting systems, signaling systems, or machine controls.

Applications
This relay is designed for use in installation and industrial distributors in accordance with DIN 43880. It is particularly suitable for applications requiring precise, time-controlled switching sequences, such as in manufacturing automation, building automation, or warning and signaling systems. The ability to start operation with either a pulse or a pause expands its application possibilities in complex control sequences.

Functions and Equipment in Detail
The device features 8 adjustable time ranges, covered by a rotary switch from 0.05 seconds up to 300 hours. The pulse and pause times are independently adjustable, allowing flexible adaptation to different requirements. Adjustment is performed via a rotary switch, with an adjustment aid integrated for quick setting of long durations. The period duration of the yellow LED is 1 second ± 4 % and serves as a reference for precise time adjustment, especially for long delay times.

Technology Explained Simply
The relay operates according to the standard IEC/EN 61812-1 and is designed as an asymmetric flash relay, meaning that the pulse and pause times can be of different lengths. The operating voltage is supplied via terminals A1/A2, and control is also possible via two-wire proximity switches. For operating voltages above 24 V and when using proximity switches without built-in short-circuit protection, it is recommended to install a series resistor in the supply line to A1 to limit the inrush current. The size of the series resistor depends on the operating voltage and the maximum switching current of the proximity switch.

Compatibility and Accessories
The device includes a connection option for two remote potentiometers (10 kΩ), enabling external, remotely controlled fine adjustment of timing. This option is particularly useful in systems where direct access to the relay is not possible or desired. Compatibility with two-wire proximity switches (AC or DC) extends its application possibilities in various control systems.

Mounting and Installation
The relay is mounted in an installation distributor and is suitable for installation in enclosures with mounting plate and cable duct. The terminals are located at the bottom, enabling easy integration into existing distributors. The depth of 59 mm and width of 17.5 mm conform to common standards for modular components in electrical installations.

Advantages in Operation
The LED indicators signal operational readiness (green LED) as well as the state of the output relay and the timing process (yellow LED “R/t”). The yellow LED blinks in different patterns depending on whether the output relay is activated (long on, short off) or not (short on, long off), enabling quick visual inspection of the operating status. The ability to start operation with either a pulse or a pause provides additional flexibility in control logic. The UKCA certification confirms compliance with applicable European safety and quality requirements.

Technical data
Enclosure designDistribution board
Time function(s)Cyclic timer
Width17,5 mm
TypeIK 7854
Connection facility for remote potentiometerYes
Variant
Contact equipping1 changeover contact delayed
Nominal voltageAC/DC 12 - 240 V
Time range0,05 s - 300 h
Approvals and MarkingsUKCA
VariantSelectable start with impulse or break


Product data sheet
Datasheet for Dold 0054362, EAN: 4030641543624

Questions & answers

What is the delivery time of Dold 0054362 IK7854.81 AC/DC12-240V 0.05S-300H timing relay ?

The article Dold 0054362 IK7854.81 AC/DC12-240V 0.05S-300H timing relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054362 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054362 IK7854.81 AC/DC12-240V 0.05S-300H timing relay always at the best possible price. We can give you a discount of 2% on Dold 0054362 IK7854.81 AC/DC12-240V 0.05S-300H timing relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054362 IK7854.81 AC/DC12-240V 0.05S-300H timing relay we can offer you a price of 158,87 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
