Dold 0054265 IK8839.11/001 1A max.20A AC220-240V current monitor

Your rating:
Average rating
product review for Dold 0054265 IK8839.11/001 1A max.20A AC220-240V current monitor
( 4.5 / 5 ) 13 ratings
Dold 0054265

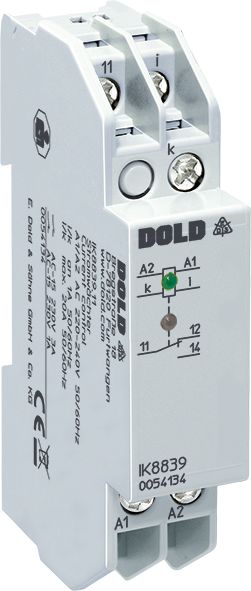

This image may differ from the desired article.
189,83 EUR
( 225,90 EUR incl. VAT )
≈ £158.89  |  ≈ $208.62
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054265 IK8839.11/001 1A max.20A AC220-240V current monitor
Datasheet:file_download Download
Lieske Part No.:648496
Mfg Part No: 0054265
UPC/EAN: 4030641542658
Weight:0.123 kg
Type:IK8839.11/001 1A MAX.20A AC220-240V
Graduated prices net
From piecesPrice per pieces
5182,71 EUR
10175,59 EUR
15168,47 EUR
20161,36 EUR

Product information for Dold 0054265:

The current monitor IK8839.11/001 from Dold is an industrial monitoring switch designed for functional monitoring of predominantly electro-thermal loads such as heating elements or pipe tracing heaters. The device checks whether operating current is flowing when the load is switched on, and reacts to deviations from the pre-set switching point. It is designed for use in installation distributors and is mounted on a DIN rail. The width is 17.5 mm, enabling compact installation in standard control panels.

Applications
This current monitor is specifically designed for monitoring loads that exhibit a constant current consumption in the range of 0.175 to 1 A. Typical applications include heating systems in industrial processes, food processing, or building automation, where interruption of the heating current can lead to functional failures. The device is designed for continuous operation and functions within a temperature range of -20 °C to +60 °C.

Functions and Features in Detail
The device features a fixed switching point of 1 A, operating with a tolerance of ±15 %. If this value is undershot, the output is activated via a changeover contact. The response delay is 180 to 300 ms, which compensates for short-term current fluctuations and prevents false tripping. The auxiliary voltage is supplied via AC 220–240 V, with a nominal consumption of 2.2 VA (apparent power) and 0.5 W (active power). Two LED indicators signal the operating status: the upper LED lights up when auxiliary voltage is applied, and the lower LED when the output relay is activated.

Technology Explained Simply
The current monitor measures the flowing operating current via inputs i/k and compares it with the set switching point. If the switching point is undershot, the output relay contact (1 changeover) is actuated. The contact configuration allows control of auxiliary relays, signal lamps, or other control elements. The overload capacity is up to 20 A continuously and 150 A for 2 seconds, providing high robustness against short-term current surges. The contact rating is 3 A / AC 230 V for closing contacts and 1 A / AC 230 V for opening contacts according to AC 15.

Compatibility and Accessories
The device is designed for mounting on a DIN rail according to IEC/EN 60715. The connection terminals are rated for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule DIN 46228-1/-2/-3/-4). The stripping length is 10 mm, and the tightening torque for the terminals is 0.8 Nm. The switching function complies with IEC/EN 60255-1. The enclosure protection rating is IP 40, and the terminals are rated IP 40.

Mounting and Installation
Mounting is done by securing the device to a DIN rail within the installation distributor. The connection terminals are equipped with flat terminals that allow self-stripping. Cable connections are made at terminals A1/A2 (voltage supply), i/k (current measurement inputs), and 11/12/14 (changeover contacts). The terminals comply with standard EN 50005.

Advantages in Operation
The current monitor provides reliable functional monitoring with a fixed switching point and integrated response delay, which compensates for short-term disturbances. The LED indicators allow for quick visual status checks. The high overload capacity and mechanical life of 20 million operations ensure long service life. The device is designed for use in industrial environments with high electromagnetic compatibility (EMC) stress and meets the requirements for immunity according to IEC/EN 61000-4-2 to -4-6. The operating altitude is limited to below 2000 m, and the relative humidity is up to 93 % at 40 °C.

Technical data
1- / 3-phase1
Enclosure designDistribution board
Measuring rangeAC 0,175 - 1 A
Output contacts1 C/O contact
Width17,5 mm
TypeIK 8839
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping1 changeover contact
Switching point1 A max. 20 A
VariantWith a fixed operate delay 180 ... 300 ms


Product data sheet
Datasheet for Dold 0054265, EAN: 4030641542658

Questions & answers

What is the delivery time of Dold 0054265 IK8839.11/001 1A max.20A AC220-240V current monitor ?

The article Dold 0054265 IK8839.11/001 1A max.20A AC220-240V current monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054265 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054265 IK8839.11/001 1A max.20A AC220-240V current monitor always at the best possible price. We can give you a discount of 2% on Dold 0054265 IK8839.11/001 1A max.20A AC220-240V current monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054265 IK8839.11/001 1A max.20A AC220-240V current monitor we can offer you a price of 182,71 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
