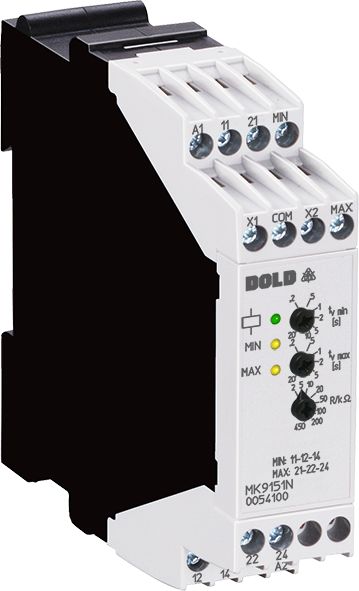

Dold 0054100 MK9151N.12 2-450K AC230V 0.2-20S level relay

Your rating:
Average rating
product review for Dold 0054100 MK9151N.12 2-450K AC230V 0.2-20S level relay
( 4.5 / 5 ) 8 ratings
Dold 0054100
This image may differ from the desired article.
182,36 EUR
( 217,01 EUR incl. VAT )
≈ £152.64  |  ≈ $200.41
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054100 MK9151N.12 2-450K AC230V 0.2-20S level relay
Datasheet:file_download Download
Lieske Part No.:583595
Mfg Part No: 0054100
UPC/EAN: 4030641541002
Weight:0.175 kg
Type:MK9151N.122-450KAC230V0,2-20S
Graduated prices net
From piecesPrice per pieces
5175,52 EUR
10168,68 EUR
15161,84 EUR
20155,01 EUR

Product information for Dold 0054100:

The MK9151N.122-450KAC230V0,2-20S level relay from Dold is a device for monitoring the fill level of conductive liquids and powders. It is designed for continuous monitoring of maximum and minimum fill levels, for example in tanks for water, chemicals, or other conductive media. The device is intended for use in industrial plants and enclosures and enables control via two independent levels (MIN and MAX) or single-point monitoring. The function is based on measuring the electrical resistance between electrodes, with the trigger value adjustable via a rotary switch in the range of 2 to 450 kΩ.

Applications
This relay is used in plants where precise fill level control is required, for example in process industry, water treatment, or chemical industry. It is suitable for monitoring liquid levels in tanks, containers, or pipelines. Additionally, it can be used for monitoring the mixing ratio of conductive liquids or for detecting limit temperatures using PTC resistors. The application also includes general resistance monitoring tasks, where a specific resistance value serves as a threshold.

Functions and Equipment in Detail
The device features three electrode connections (MIN, MAX, COM), which can be used for 2-point and 1-point level control. The reference electrode (COM) is typically mounted at the lowest point of the container and must always be connected to the COM terminal. The opposing electrodes for MIN and MAX are connected to the corresponding inputs. Programming is done via jumpers on terminals X1-COM and X2-COM, allowing selection between separate and common actuation of the output relays, as well as between operating and resting current principle. With separate actuation, the two output relays switch independently, and a separate delay time can be set for each level. With common actuation, both relays switch synchronously, enabling a 2-point hysteresis level control.

Technology Explained Simply
The operation is based on measuring the specific resistance of the liquid between the electrodes. When the liquid level reaches the set trigger value, the corresponding output relay is activated. The trigger delay prevents unwanted switching operations caused by short-term level changes, for example due to vibrations or splashes. The reset delay ensures that the relay only switches back after the set time has elapsed, once the level falls below the trigger value. The auxiliary voltage is AC 230 V, and the output contacts consist of two individual changeover contacts (one changeover contact per relay). The terminals are fixed screw terminals located at the top of the device, enabling easy installation in enclosures with mounting plate and cable duct.

Compatibility and Accessories
The relay is designed for auxiliary voltages of AC 24 to 400 V or DC 24 V, with the variant described here specifically designed for AC 230 V. It is equipped with LEDs indicating operational readiness (green LED) and the contact position of the output relays (yellow LEDs for MIN and MAX). The electrodes can be any commercially available products, and the container can serve as the reference electrode if made of conductive material. The connection terminals are designed for use with standard cables, and the width is 22.5 mm, allowing installation in standard installation distributors.

Mounting and Installation
The device is mounted in enclosures, with the top-mounted connection terminals enabling easy wiring. The depth is 98 mm, which must be considered when planning the enclosure depth. Mounting is done on a mounting plate, with cable ducts supporting the wiring. Programming is done via jumpers on terminals X1-COM and X2-COM, allowing selection of operating mode (operating or resting current principle) and actuation type (separate or common).

Advantages in Operation
The MK9151N level relay offers high flexibility through separate adjustment of trigger value and delay times for MIN and MAX levels. The LED indicators facilitate diagnosis and monitoring during operation. The robust design and compliance with standard IEC/EN 60255-1 ensure reliable operation in industrial environments. The combination of 2-point and 1-point control options, along with the choice between operating and resting current principle, significantly expands the range of applications. The device class is designed for level monitoring, with time delay on exceeding and falling below the liquid level supporting stable and disturbance-free operation. The UKCA and CCC certifications confirm compliance with applicable safety and quality requirements.

Technical data
ClassificationFüllstandsüberwachung
Enclosure designDistribution board
Measuring range max.450 kΩ
Output contacts2 x 1 C/O contacts
Width22,5 mm
TypeMK 9151N
Operate delayYes
Variant
Auxiliary voltageAC 230 V
Contact equipping2 x 1 changeover contact
Response and release delay0,2 - 20 s
Response value2 - 450 kOhm
Terminal typescrew terminals fixed
Approvals and MarkingsUKCA, CCC
VariantTime delay, when level rises over and drops under setting value


Product data sheet
Datasheet for Dold 0054100, EAN: 4030641541002

Questions & answers

What is the delivery time of Dold 0054100 MK9151N.12 2-450K AC230V 0.2-20S level relay ?

The article Dold 0054100 MK9151N.12 2-450K AC230V 0.2-20S level relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054100 MK9151N.12 2-450K AC230V 0.2-20S level relay always at the best possible price. We can give you a discount of 2% on Dold 0054100 MK9151N.12 2-450K AC230V 0.2-20S level relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054100 MK9151N.12 2-450K AC230V 0.2-20S level relay we can offer you a price of 175,52 EUR per piece. The more you buy, the cheaper the article will be.
