Dold 0054058 MK9906N.82/500 AC/DC12-240V time relay with delay-on-make 0.05 s–300 h

Your rating:
Average rating
product review for Dold 0054058 MK9906N.82/500 AC/DC12-240V time relay with delay-on-make 0.05 s–300 h
( 4.5 / 5 ) 8 ratings
Dold 0054058

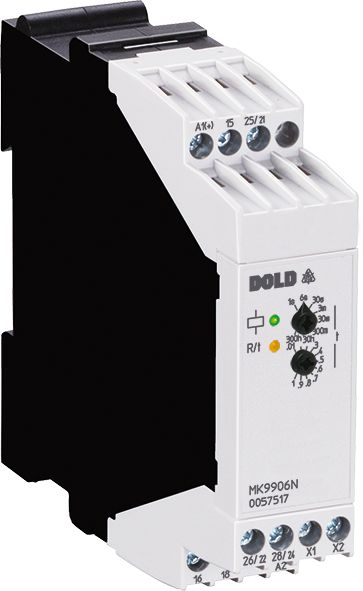

This image may differ from the desired article.
Dold 0054058Dold 0054058
125,21 EUR
( 149,00 EUR incl. VAT )
≈ £104.80  |  ≈ $137.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054058 MK9906N.82/500 AC/DC12-240V time relay with delay-on-make 0.05 s–300 h
Datasheet:file_download Download
Lieske Part No.:1312758
Mfg Part No: 0054058
UPC/EAN: 4030641540586
Weight:0.17 kg
Type:MK9906N.82/500 AC/DC12-240V
Graduated prices net
From piecesPrice per pieces
5120,51 EUR
10115,82 EUR
15111,12 EUR
20106,43 EUR

Product information for Dold 0054058:

The Dold time relay MK9906N.82/500 AC/DC12-240V is a delayed-action industrial time relay designed for use in enclosures. It features a width of 22.5 mm and is rated for a nominal voltage range of AC/DC 12 to 240 V. The device is designed for use in industrial control systems where precise time-controlled switching functions are required, for example, to delay the start-up of motors, pumps, or other loads.

Applications
This time relay is suitable for applications in industrial automation, particularly in systems requiring time-controlled operation. It is commonly used in machine controls, process monitoring systems, or in safety and protection circuits. The delayed-action function allows the contact to switch only after a pre-set time has elapsed once the relay is energized. This is useful for gradually activating loads or synchronizing switching operations.

Functions and Features in Detail
The device features 2 changeover contacts as output contacts, with one of these contacts configurable as an immediate contact via programming. This allows flexible adaptation to different switching logic requirements. The time delay is adjustable via a rotary switch across 8 different time ranges, from 0.05 seconds up to 300 hours. The adjustment aid enables quick and accurate setting, even for longer time intervals. The relay is energized via a voltage in the range of AC/DC 12 to 240 V, making it suitable for various mains voltage conditions.

Technology Explained Simply
The time relay operates on the principle of delayed-action switching, where the contact switches only after the set time has elapsed once the relay is energized. The time delay is implemented via an integrated timer, which is adjusted using the rotary switch. The connection terminals are fixed screw terminals, ensuring a secure and durable connection. The terminals are rated for conductor cross-sections up to 2.5 mm² solid or 1.5 mm² stranded wire with ferrule and plastic collar. The provision for a remote potentiometer allows for external, remotely controlled time adjustment, which can be advantageous in complex systems or during maintenance.

Compatibility and Accessories
The device is compatible with a remote potentiometer, which can be connected via a separate connection point. This enables external, remotely controlled adjustment of the delay time. The relay is energized via two-wire proximity switches, facilitating integration into existing control systems. The UL and UKCA certifications confirm compliance with applicable safety and quality standards. The device complies with standard EN 61812-1, which applies to time relays in industrial applications.

Mounting and Installation
The time relay is designed for mounting in enclosures and is connected via fixed screw terminals. Its width of 22.5 mm allows for compact placement in standard control panels. Mounting is typically done in a DIN-standard control box. The connection terminals are designed for solid or stranded conductors, with maximum cross-sections of 2.5 mm² (solid) or 1.5 mm² (stranded) as specified by the manufacturer.

Operational Advantages
The combination of 8 time ranges in a single device reduces inventory requirements, as one model can be used for a wide range of applications. The high accuracy of the time delay and the quick, precise adjustment of even long time intervals enhance control system reliability. LED indicators for operational readiness, contact position, and time progression support diagnostics and maintenance. Options such as remote potentiometer connection or plug-in terminal blocks (optional) increase flexibility during installation and maintenance. The UL and UKCA certifications ensure safety and proper operation in various markets.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)On-delay
Width22,5 mm
TypeMK 9906N
Connection facility for remote potentiometerYes
Variant
Contact equipping2 changeover contacts, one programmable as instantaneous contact
Nominal voltageAC/DC 12 - 240 V
Terminal typescrew terminals fixed
Time range0,05 s - 300 h
Approvals and MarkingsUKCA
Variant8 time ranges. With connection facility for a remote potentiometer to adjust the time


Product data sheet
Datasheet for Dold 0054058, EAN: 4030641540586

Questions & answers

What is the delivery time of Dold 0054058 MK9906N.82/500 AC/DC12-240V time relay with delay-on-make 0.05 s–300 h ?

The article Dold 0054058 MK9906N.82/500 AC/DC12-240V time relay with delay-on-make 0.05 s–300 h is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054058 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054058 MK9906N.82/500 AC/DC12-240V time relay with delay-on-make 0.05 s–300 h always at the best possible price. We can give you a discount of 2% on Dold 0054058 MK9906N.82/500 AC/DC12-240V time relay with delay-on-make 0.05 s–300 h if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054058 MK9906N.82/500 AC/DC12-240V time relay with delay-on-make 0.05 s–300 h we can offer you a price of 120,51 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
