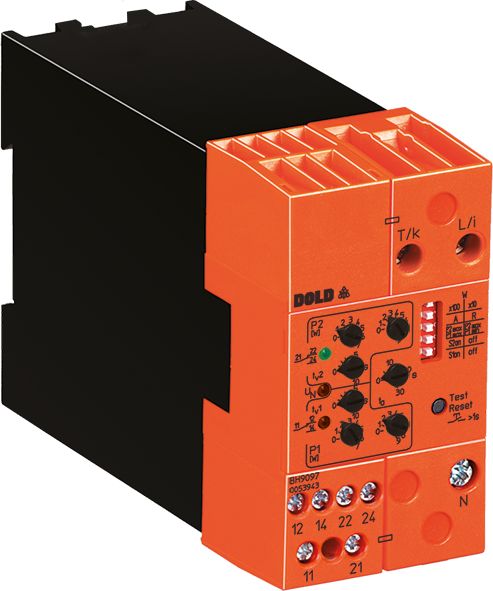

Dold 0053943 BH9097.38 AC230V AC24A load monitor

Your rating:
Average rating
product review for Dold 0053943 BH9097.38 AC230V AC24A load monitor
( 4.5 / 5 ) 15 ratings
Dold 0053943
This image may differ from the desired article.
512,29 EUR
( 609,63 EUR incl. VAT )
≈ £428.79  |  ≈ $563.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053943 BH9097.38 AC230V AC24A load monitor
Datasheet:file_download Download
Lieske Part No.:915828
Mfg Part No: 0053943
UPC/EAN: 4030641539436
Weight:0.458 kg
Type:BH9097.38AC230VAC24A
Graduated prices net
From piecesPrice per pieces
3493,08 EUR
6473,87 EUR
9454,66 EUR
12435,45 EUR

Product information for Dold 0053943:

The load monitor BH9097.38AC230VAC24A from Dold is an industrial monitoring switch of the VARIMETER series, designed for continuous monitoring of the electrical load of motors and other electrical consumers in industrial applications. The device detects overload and underload conditions by measuring active power, and responds to exceeding or falling below adjustable threshold values by activating the output relays. The functionality is designed for applications in enclosures, with a width of 45 mm enabling compact mounting in standard control panels.

Applications

The load monitor is suitable for monitoring electrical industrial drives with variable load, particularly motors with a power up to 22 kW at 400 V or up to 37 kW at 690 V. It can be used in both single-phase and three-phase systems, with the measurement principle based on single-phase measurement and assuming symmetrical loading of all phases, as is typical for motor loads. The application is in industrial environments, where early detection of load anomalies contributes to avoiding machine failures and enabling planned maintenance.

Functions and Equipment in Detail

The device features two independent output relays, each with a single-pole changeover contact, intended for signaling two different load conditions (P1 and P2). The threshold values for P1 and P2 can be set via rotary switches as absolute values in watts. The setting is done via an absolute scale, ensuring precise and reproducible configuration. The relays can be switched via DIP switches to either operating current principle (relay activated in fault condition) or resting current principle (relay deactivated in fault condition). Additionally, a memory behavior can be set, with options S1/S2 ON (manual reset) and S1/S2 OFF (automatic reset) available.

Technology Explained Simply

Measurement is performed via active power measurement, with the device capable of measuring up to 40 A without an external current transformer. Automatic range switching enables a wide measurement range. A common start-up bypass time ta (0 to 30 seconds) prevents false alarms during motor start-up. Indication is provided via two yellow LEDs (for P1 and P2) and one green LED (for mains voltage). The LEDs indicate the operating status: flashing shows the time delay progression, steady light indicates relay activation. In case of faults, such as missing measurement voltage or reverse power, all LEDs flash in specific patterns.

Compatibility and Accessories

The device is configurable for single-phase and three-phase systems and requires no auxiliary voltage. It is compliant with IEC/EN 60255-1. Wiring is done via terminals A1/A2, U, T/k, L/i, with contacts 11-14 and 21-24 representing the output relays. Configuration is done via DIP switches and rotary switches, with a test/reset button aiding commissioning and adjustment. The CCC certification is specified.

Mounting and Installation

Mounting is done in enclosures, with the width of 45 mm enabling installation in standard control panels. The terminals are clearly labeled, and settings are adjusted via mechanical switches. Installation requires no additional auxiliary voltages, as the device operates without auxiliary voltage. Wiring is simplified, as the relays directly indicate load conditions.

Advantages in Operation

Early detection of load anomalies enables preventive maintenance and prevents costly damage. The clear LED indication and adjustable time delays reduce false alarms. Configurability for operating or resting current principle, as well as the choice between underload and overload monitoring or overload monitoring with a warning stage, expands application possibilities. Automatic range switching and measurement up to 40 A without an external current transformer reduce installation effort. Compliance with the standard IEC/EN 60255-1 ensures reliability and safety in industrial operation.

Technical data
1- / 3-phase1, 3
Enclosure designSwitch cabinet
Measuring range max.40 A (37 kW)
Output contacts2 x 1 C/O contacts
Width45 mm
TypeBH 9097
Operate delayYes
Variant
Auxiliary voltageWithout
Contact equipping2 x 1 changeover contact
Nominal current maxAC 24 A
Nominal voltageAC 230 V
Approvals and MarkingsCCC
Variant1-phase without auxiliary supply. Start up delay time 0 - 30 s


Product data sheet
Datasheet for Dold 0053943, EAN: 4030641539436

Questions & answers

What is the delivery time of Dold 0053943 BH9097.38 AC230V AC24A load monitor ?

The article Dold 0053943 BH9097.38 AC230V AC24A load monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053943 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053943 BH9097.38 AC230V AC24A load monitor always at the best possible price. We can give you a discount of 2% on Dold 0053943 BH9097.38 AC230V AC24A load monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0053943 BH9097.38 AC230V AC24A load monitor we can offer you a price of 493,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
