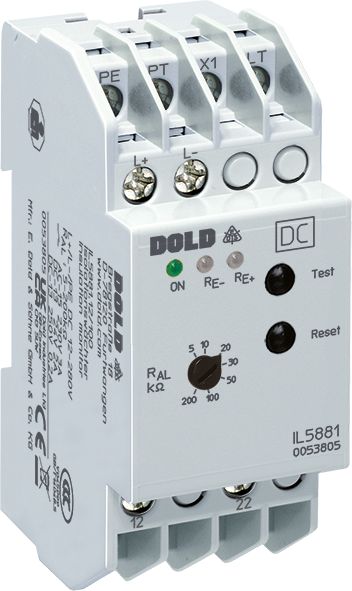

Dold 0053802 IL5881.12 DC12-280V UH AC220-240V insulation monitor 5-200 kOhm

Your rating:
Average rating
product review for Dold 0053802 IL5881.12 DC12-280V UH AC220-240V insulation monitor 5-200 kOhm
( 4.4 / 5 ) 15 ratings
Dold 0053802
This image may differ from the desired article.
266,06 EUR
( 316,61 EUR incl. VAT )
≈ £222.69  |  ≈ $292.40
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053802 IL5881.12 DC12-280V UH AC220-240V insulation monitor 5-200 kOhm
Datasheet:file_download Download
Lieske Part No.:1312950
Mfg Part No: 0053802
UPC/EAN: 4030641538026
Weight:0.182 kg
Type:IL5881.12 DC12-280V UH AC220-240V
Graduated prices net
From piecesPrice per pieces
4262,07 EUR
8258,08 EUR
12254,09 EUR
16250,10 EUR

Product information for Dold 0053802:

The isolation monitor IL5881.12 from Dold is a device for monitoring the insulation resistance in ungrounded DC networks (IT systems) with a nominal voltage of DC 12 to 280 V. The device is designed for use in industrial and railway applications, where continuous monitoring of insulation quality is required to prevent fire and equipment damage. The supply voltage (auxiliary voltage) is drawn from the monitored network, with the specified variant using an AC auxiliary voltage of 220 to 240 V. The width is 35 mm, and the device is designed for mounting in installation and industrial distributors according to DIN 43880, with either DIN rail or screw mounting possible.

Applications

The IL5881.12 is used for continuous monitoring of IT systems in industrial plants, particularly in areas where interruption of power supply is not acceptable. Applications also include railway systems, where the reliability of electrical systems is of high importance. The device detects earth faults in the network and signals them via optical indication, enabling quick fault localization.

Functions and Equipment in Detail

The device features two changeover contacts as contact configuration, which interrupt the output current when an earth fault is detected. The trip thresholds are adjustable via a potentiometer on the front of the device, with the alarm threshold ranging from 5 to 200 kΩ. Indication is provided via LEDs: a green LED indicates operational status, while red LEDs light up for earth faults on L+ or L-. Selective earth fault detection allows identification of whether the fault occurs on the positive or negative line.

Technology Explained Simply

The isolation monitor operates on the principle of residual current, where the output relay de-energizes in the event of a fault rather than being activated. The trip threshold is adjusted via a potentiometer, allowing the operator to adapt the alarm threshold to the specific requirements of the installation. The function can be programmed to operate in memory or hysteresis mode. In hysteresis mode, the device automatically resets when the insulation resistance rises above the set value again. In memory mode, the fault condition remains stored until reset via the internal or external reset button.

Compatibility and Accessories

The device is designed for IT systems with a nominal voltage of DC 12 to 280 V. On request, variants with a measurement range up to DC 500 V and a separate auxiliary voltage are available. The connection terminals are designed for mounting in installation distributors, with a depth of 61 mm. External test and reset buttons can be connected to extend functionality.

Mounting and Installation

Mounting is either on a DIN rail or via screw fastening. The width of 35 mm allows for compact installation in standard distributors. The connection terminals are located at the bottom, facilitating integration into installation distributors according to DIN 43880. The auxiliary voltage is drawn directly from the monitored network, eliminating the need for additional power supply.

Operational Advantages

The IL5881.12 provides preventive protection against fires and equipment damage through early detection of insulation faults. The simple adjustment of the trip threshold and selective fault indication enable quick diagnosis and maintenance. Integrated test and reset buttons, along with the option to connect external buttons, increase operational flexibility. Compliance with standard IEC/EN 61557-8 ensures standardized functionality.

Approvals and Markings

The device carries the UKCA and CCC approvals, confirming compliance with applicable safety and quality requirements in the respective markets. Compliance with standard IEC/EN 61557-8 ensures the reliability of measurement and alarm functions.

Components and Operating States

Operating states are indicated via LEDs: green LED for operational readiness, red LEDs for earth fault on L+ or L-. The test and reset functions are available via integrated buttons and external connections. Programming of the behavior (memory or hysteresis mode) is done via a bridge between terminals LT and X1.

Function Explanation

When the set alarm threshold R_AL is undershot, the corresponding red LED (RE+ or RE-) lights up, and the output relay de-energizes. In hysteresis mode (bridge LT-X1), the device automatically resets when the insulation resistance rises again. Without the bridge, the fault condition remains stored until reset via the reset button. The test button simulates an earth fault to test functionality.

Application Scenarios

The device is particularly suitable for installations where interruption of power supply is unacceptable, such as in industrial production plants, medical facilities, or railway systems. Continuous monitoring of insulation resistance enables proactive maintenance and prevents potential damage from insulation faults.

Technical data
Enclosure designDistribution board
IMD typeDC
Nominal voltage IT systemDC 12 - 280 V, DC 24 - 500 V
Response value5 - 500 kΩ
Response value typeAdjustable
Width35 mm
TypeIL 5881
Earth fault indicatorYes
Variant
Alarm value5 - 200 kOhm
Auxiliary voltageAC 220 - 240 V
Contact equipping2 changeover contacts
Nominal voltageDC 12 - 280 V
Time delaywithout
Approvals and MarkingsUKCA, CCC


Product data sheet
Datasheet for Dold 0053802, EAN: 4030641538026
