Dold 0053511 BL5903.22/00000 AC230V emergency stop module

Your rating:
Average rating
product review for Dold 0053511 BL5903.22/00000 AC230V emergency stop module
( 4.8 / 5 ) 4 ratings
Dold 0053511

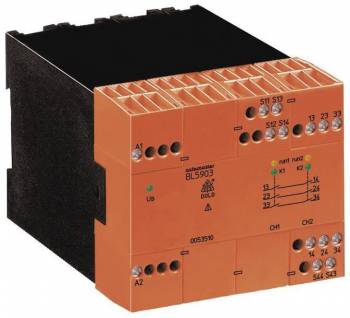

This image may differ from the desired article.
Dold 0053511Dold 0053511
698,84 EUR
( 831,62 EUR incl. VAT )
≈ £584.93  |  ≈ $768.03
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053511 BL5903.22/00000 AC230V emergency stop module
Datasheet:file_download Download
Lieske Part No.:1583173
Mfg Part No: 0053511
UPC/EAN: 4030641535117
Weight:0.825 kg
Type:BL5903.22/00000 AC230V
Graduated prices net
From piecesPrice per pieces
3672,63 EUR
6646,43 EUR
9620,22 EUR
12594,01 EUR

Product information for Dold 0053511:

The Dold safety relay BL5903.22/00000 AC230V is an emergency stop module for industrial applications, used for the safe control of machines and plants. It is specifically designed for use in systems that automatically restart after power restoration following a power failure, for example in compressor controls or in water and wastewater technology. The device enables 2-channel connection of an emergency stop pushbutton and stores the actuation of the emergency stop pushbutton to ensure a safe shutdown. Upon restoration of mains voltage, the plant is automatically switched on again, provided the emergency stop pushbutton has not been activated.

Applications
This safety relay is intended for use in plants that must meet high safety requirements. It is particularly used in process and factory automation, where safe shutdown in the event of a fault and automatic restart after a power failure are important. Application areas include, for example, pump controls, compressed air systems, conveyor systems, and other industrial machines, where uncontrolled restart after a power failure must be avoided.

Functions and equipment in detail
The device features contact configuration with 2 NO contacts and 1 NC contact as alarm contact. The output contacts enable control of up to three NO contacts, allowing multiple loads or safety functions to be switched off in parallel. The feedback loop enables external contact amplification, increasing flexibility when integrating into existing control systems. LED indicators for channel 1 and 2, as well as for fault diagnosis, support visual monitoring of the operating status and facilitate troubleshooting.

Technology explained simply
The safety relay operates with a rated voltage of AC 230 V and is designed for use in 1- and 2-channel systems. Connection is made via removable screw terminals, enabling flexible and secure connections. The terminals are designed for conductor cross-sections of 2 x 1.5 mm² stranded wire with sleeve and plastic collar according to DIN 46228-1/-2/-3/-4 or 2 x 2.5 mm² stranded wire with sleeve according to DIN 46228-1/-2/-3. Cross-section detection, as well as wire break and line break detection on all inputs, ensure high reliability and prevent malfunctions due to defective connections. The thermal current Ith max. is 5 A, defining the contact load capacity.

Compatibility and accessories
The module is designed for 2-channel connection of an emergency stop pushbutton and can be used in systems requiring redundant safety functions. The specifications refer exclusively to the functionality of the module itself.

Mounting and installation
Mounting is carried out in standard control panels with a mounting width of 90 mm. The removable terminal blocks facilitate installation and maintenance. The connection terminals are designed to ensure a secure and durable connection even under mechanical stress. The device indicators support installation by providing visual feedback on the operating status.

Advantages in operation
The safety relay offers high safety integrity with Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as Safety Integrity Level (SIL CL) 3 according to IEC/EN 62061. TÜV and UKCA certifications confirm compliance with European safety standards. The automatic restart after power failure, combined with storage of emergency stop actuation, reduces operating effort and increases plant availability. Integrated fault indication via LED indicators enables quick diagnosis and maintenance.

Technical data
1- / 2-channel1, 2
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width90 mm
TypeBL 5903
Cross fault detectionYes
Variant
Contact equipping2 NO contacts, 1 NC contact as signal output
Nominal voltageAC 230 V
Approvals and MarkingsTÜV, UKCA
VariantFür 2-kanaligen Anschluß von einem Not-Aus-Taster


Product data sheet
Datasheet for Dold 0053511, EAN: 4030641535117

Questions & answers

What is the delivery time of Dold 0053511 BL5903.22/00000 AC230V emergency stop module ?

The article Dold 0053511 BL5903.22/00000 AC230V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053511 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053511 BL5903.22/00000 AC230V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0053511 BL5903.22/00000 AC230V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0053511 BL5903.22/00000 AC230V emergency stop module we can offer you a price of 672,63 EUR per piece. The more you buy, the cheaper the article will be.
