Dold 0053480 BH5933.48 AC42V 50/60Hz two-hand safety relay

Your rating:
Average rating
product review for Dold 0053480 BH5933.48 AC42V 50/60Hz two-hand safety relay
( 4.4 / 5 ) 7 ratings

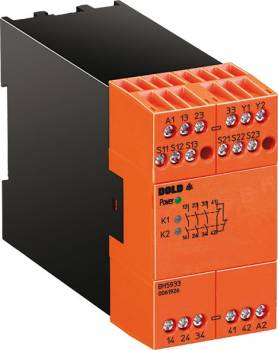

Dold 0053480
This image may differ from the desired article.
Dold 0053480Dold 0053480
461,11 EUR
( 548,72 EUR incl. VAT )
≈ £385.95  |  ≈ $506.76
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053480 BH5933.48 AC42V 50/60Hz two-hand safety relay
Datasheet:file_download Download
Lieske Part No.:1313039
Mfg Part No: 0053480
UPC/EAN: 4030641534806
Weight:0.428 kg
Type:BH5933.48 AC42V 50/60HZ
Graduated prices net
From piecesPrice per pieces
4457,65 EUR
8454,19 EUR
12450,74 EUR
16447,28 EUR

Product information for Dold 0053480:

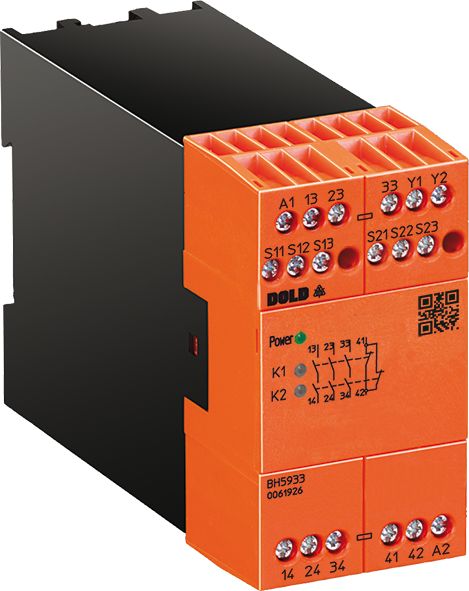

The Dold safety relay type BH5933.48 AC42V 50/60Hz is an industrial device for safety-oriented control of machines, particularly in applications with two-hand controls. It is used to enable and interrupt a safety circuit to protect personnel and machines from hazardous movements, for example in metalworking presses. The device is designed as a compact, ready-to-connect two-hand control and allows monitoring of external contactors via a feedback circuit, thereby enabling contact multiplication or amplification.

Applications
This safety relay is intended for use in industrial machines and systems where safe operation via two-hand control is required. Typical application areas include presses, machine tools, and other working machines with hazardous closing movements. Compliance with safety standards is essential here, which is why the device is appropriately certified.

Functions and equipment in detail
The device features a contact configuration with 3 NO contacts and 1 NC contact, enabling flexible integration into existing control systems. The rated voltage is AC 42 V at 50/60 Hz, making it suitable for standard supply voltages in industrial environments. The connection technology uses removable screw terminals, which allow secure and easy connection of cables. The maximum cross-section for connected cables is 2.5 mm², and stranded cables with ferrules according to DIN 46228-1/-2/-3/-4 can also be used.

Technology explained simply
The safety relay operates on the principle of two-hand-controlled safety function, requiring both hands of the operator to activate it, preventing unintentional operation. The integrated monitoring function ensures that the safety circuit is only enabled when both inputs are correctly actuated. The thermal load capacity is specified with a maximum thermal current of 5 A, describing the contact load capacity under continuous operation. The width is 45 mm, enabling compact mounting on standard control panels.

Compatibility and accessories
The device is designed for use with two-hand controls and can be used in combination with external contactors to increase the number of available contacts. The feedback circuit via terminals Y1 and Y2 enables monitoring of external contactors. The approvals include UL-listed C/US, TÜV, and UKCA, confirming compliance with international safety standards.

Mounting and installation
Mounting is done on standard control panels with a width of 45 mm. The removable screw terminals facilitate installation and maintenance. The connection terminals are designed for cables up to 2.5 mm², and the use of ferrules according to DIN 46228-1/-2/-3/-4 is recommended. Installation must follow the manufacturer’s technical instructions to ensure the safety function.

Advantages in operation
The integrated two-hand control eliminates the need for a separate contactor control, resulting in cost savings. The monitoring function for external contactors increases the reliability of the entire control system. Approvals according to EN ISO 13849-1 (Category 4, Performance Level e), IEC/EN 62061 (SIL 3), and EN ISO 13851 (Safety Level Type III C) guarantee high safety performance. The width of 45 mm allows space-saving installation in existing control systems.

Safety level and approvals
The device meets the requirements for safety functions according to EN ISO 13849-1 (Category 4, PL e), IEC/EN 62061 (SIL 3), and EN ISO 13851 (Type III C). These approvals are essential for use in safety-critical applications. The UL-listed C/US, TÜV, and UKCA approvals confirm compliance with international safety standards.

Technical data
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Safety integrity level according to EN 574lll C
Safety integrity level according to EN ISO 13851lll C
Thermal current Ith max.5 A
Width45 mm
TypeBH 5933
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageAC 42 V 50/60 Hz
Approvals and MarkingsUL-listed C/US, TÜV, UKCA


Product data sheet
Datasheet for Dold 0053480, EAN: 4030641534806

Questions & answers

What is the delivery time of Dold 0053480 BH5933.48 AC42V 50/60Hz two-hand safety relay ?

The article Dold 0053480 BH5933.48 AC42V 50/60Hz two-hand safety relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053480 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053480 BH5933.48 AC42V 50/60Hz two-hand safety relay always at the best possible price. We can give you a discount of 2% on Dold 0053480 BH5933.48 AC42V 50/60Hz two-hand safety relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0053480 BH5933.48 AC42V 50/60Hz two-hand safety relay we can offer you a price of 457,65 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
