Dold 0053381 IL5880.12/200 AC50-400Hz 380-415V insulation monitor 5-100k 10k-5M

Your rating:
Average rating
product review for Dold 0053381 IL5880.12/200 AC50-400Hz 380-415V insulation monitor 5-100k 10k-5M
( 4.4 / 5 ) 37 ratings
Dold 0053381
This image may differ from the desired article.

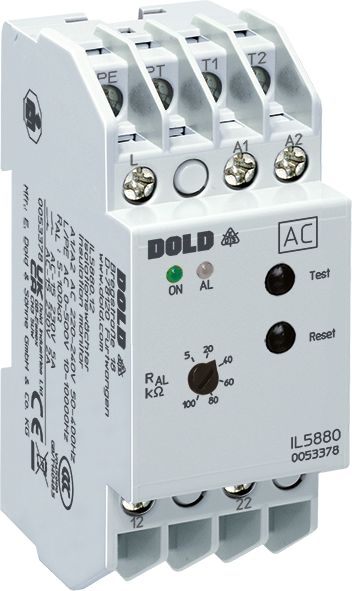

Dold 0053381Dold 0053381
278,29 EUR
( 331,17 EUR incl. VAT )
≈ £232.93  |  ≈ $305.84
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053381 IL5880.12/200 AC50-400Hz 380-415V insulation monitor 5-100k 10k-5M
Datasheet:file_download Download
Lieske Part No.:549654
Mfg Part No: 0053381
UPC/EAN: 4030641533816
Weight:0.172 kg
Type:IL5880.12/200 AC50-400HZ 380-415V
Graduated prices net
From piecesPrice per pieces
4267,85 EUR
8257,42 EUR
12246,98 EUR
16236,55 EUR

Product information for Dold 0053381:

The insulation monitor IL 5880.12/200 from Dold is a device for monitoring the insulation resistance in ungrounded AC and three-phase networks (IT systems) with a nominal voltage of AC 0 to 500 V. The device operates on the zero-current principle, in which the output relays are not activated in the event of a fault, enabling safe and reliable fault detection. The auxiliary voltage is AC 380 to 415 V at a frequency of 50 to 400 Hz, allowing monitoring of de-energized systems as well. The width is 35 mm, and the device is designed for mounting in installation and industrial distributors according to DIN 43880.

Applications

The IL 5880.12/200 is designed for pure AC and three-phase networks in the frequency range of 10 to 10000 Hz. It is particularly suitable for applications in industry and rail transport, where continuous monitoring of insulation condition is required. The separate supply voltage enables monitoring of de-energized consumers, for example, motor windings of devices that must be switched on in an emergency. A variant of the device is also available for monitoring mobile power generation systems in accordance with DIN VDE 0100-551.

Functions and equipment in detail

The device features two changeover contacts as contact configuration, used for signaling alarm and pre-alarm conditions. The alarm threshold is adjustable and ranges from 5 to 100 kΩ, with a variant available with a threshold of 10 to 500 kΩ. Additionally, an adjustable pre-alarm threshold in the range of 10 kΩ to 5 MΩ is integrated. The function of the output relays is programmable, allowing selection between memory and hysteresis behavior. Indication is provided via LEDs: a green LED indicates operational readiness, a red LED signals an insulation fault, and a yellow LED lights up when the pre-alarm threshold is undershot.

Technology explained simply

The insulation monitor monitors the resistance between the electrical network and earth. If the resistance drops below the set alarm threshold, a fault is signaled. Galvanic isolation between the measurement circuit, auxiliary voltage, and output contacts ensures high safety. The threshold setting is adjusted via a potentiometer on the front of the device, enabling user-friendly adjustment. The integrated reset and test button allows manual resetting and testing of the device. Additionally, external reset and test buttons can be connected.

Compatibility and accessories

The device is available in various designs, with the IL 5880/200 variant designed for installation distributors with bottom-mounted connection terminals. Mounting is either on DIN rail or by screw mounting. The devices comply with the standard IEC/EN 61557-8 and are certified with UKCA and CCC. The connection terminals are intended for connection to the monitored IT network, the protective conductor, and for external test and reset buttons.

Mounting and installation

Mounting is carried out in standard installation distributors or enclosures. The depth is 61 mm, and the connection terminals are arranged at the bottom. The devices are designed for mounting on DIN rail or by screws. The connection designations include A1 and A2 for the monitored network, PE for the protective conductor, PT for the external test button, and LT1/LT2 for external reset buttons or programming.

Advantages in operation

The IL 5880.12/200 provides preventive protection against fires and equipment damage through early detection of insulation faults. The simple adjustment of threshold values and clear LED indication facilitate daily use. Galvanic isolation and the zero-current principle increase the safety and reliability of the device. The programmability of the output relays enables flexible adaptation to different operational requirements.

Technical data
Enclosure designDistribution board
IMD typeAC
Nominal voltage IT systemAC 0 - 500 V
Response value5 - 500 kΩ
Response value typeAdjustable
Width35 mm
TypeIL 5880
Earth fault indicatorYes
Variant
Alarm value5 - 100 kOhm
Auxiliary voltageAC 380- 415 V 50 - 400 Hz
Contact equipping2 x 1 changeover contact
Prewarning value10 kOhm - 5 MOhm
Approvals and MarkingsUKCA, CCC
VariantAdjustable alarm and pre-warning value. Programmable outputs. De-energized on trip


Product data sheet
Datasheet for Dold 0053381, EAN: 4030641533816
