Dold 0052934 BC7936N.38 AC/DC24V+AC220-240V 10S star-delta relay 100 ms

Your rating:
Average rating
product review for Dold 0052934 BC7936N.38 AC/DC24V+AC220-240V 10S star-delta relay 100 ms
( 4.5 / 5 ) 14 ratings
Dold 0052934

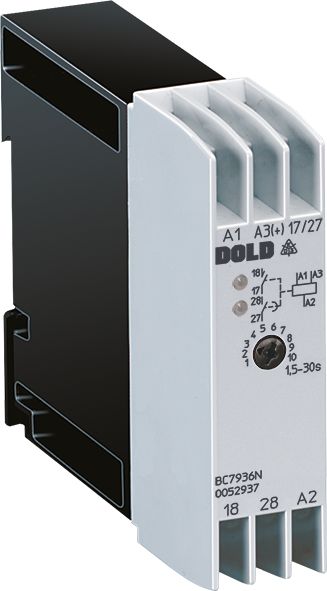

This image may differ from the desired article.
84,59 EUR
( 100,66 EUR incl. VAT )
≈ £70.80  |  ≈ $92.96
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052934 BC7936N.38 AC/DC24V+AC220-240V 10S star-delta relay 100 ms
Datasheet:file_download Download
Lieske Part No.:336614
Mfg Part No: 0052934
UPC/EAN: 4030641529345
Weight:0.105 kg
Type:BC7936N.38AC/DC24V+AC220-240V10S
Graduated prices net
From piecesPrice per pieces
683,32 EUR
1282,05 EUR
2480,78 EUR
3679,51 EUR

Product information for Dold 0052934:

The Dold star-delta time relay BC7936N.38AC/DC24V+AC220-240V10S is an industrial control device for starting control of three-phase motors. It enables stepless adjustment of the delay time in star operation, with a time range from 0.5 to 100 seconds. The device is designed for use in enclosures and has a width of 22.5 mm, making it suitable for standard control panels. The function is based on the IEC/EN 61812-1 standard, which applies to time relays in industrial applications.

Applications
This relay is primarily used in systems for controlling three-phase motors, especially in drives requiring a soft start via star-delta switching. This is typical in pumps, fans, compressors, and other machinery where direct connection to full line voltage would result in high inrush currents. The stepless adjustability of the delay time allows application-specific adaptation of the start duration.

Functions and Equipment in Detail
The device features two output contacts: one make contact operating as fleeting on, and one make contact operating with delayed operation. This contact configuration enables control of two different switching operations within the star-delta control. The contact switching time is 100 ms, ensuring fast and precise switching between star and delta configurations. The repeatability is ≤ 0.5 % + 10 ms, ensuring high consistency in time control. Two LED indicators signal the state of the output relays: the upper LED lights up when contact 17-18 is closed, and the lower LED when contact 27-28 is closed.

Technology Explained Simply
The operating voltage is supplied via two voltage inputs: AC/DC 24 V (at terminals A3-A2) and AC 220–240 V (at terminals A1-A2). The voltage ranges are AC 0.8–1.1 U_N and DC 0.9–1.25 U_N, providing high tolerance to voltage fluctuations. The nominal frequency is 50/60 Hz. The drop-out voltage is at least 15 % of the nominal voltage, ensuring secure de-energization even during voltage dips. The device is designed for continuous operation and functions in a temperature range from -20 °C to +60 °C.

Compatibility and Accessories
The relay is designed for use with standard control panels and enclosures. The terminals are suitable for conductor cross-sections of 1 x 4 mm² (solid) or 1 x 2.5 mm² (stranded wire with ferrule and plastic sleeve) and 2 x 1.5 mm² (stranded wire with ferrule). The connection terminals comply with EN 50005. The enclosure protection rating is IP 40, and the terminals are IP 40, providing protection against touch and dust, but not against water. The enclosure materials consist of thermoplastic with V0 behavior according to UL Subject 94, indicating a high flame retardancy class.

Mounting and Installation
Mounting is done in enclosures using screw terminals. The tightening torques for the plus-minus terminal screws M 3.5 are 0.8 Nm. The terminals are designed as box terminals with wire protection, ensuring a secure and durable connection. The electrical and mechanical life expectancy is high: the electrical life is at least 500,000 switching cycles at 1 A and AC 230 V, and the mechanical life is 100 million switching cycles. The short-circuit withstand capability is defined with a maximum fuse rating of 4 A gG/gL according to IEC/EN 60947-5-1.

Operational Advantages
The stepless adjustability of the delay time and the high repeatability ensure precise and reproducible control. The LED indicators enable visual monitoring of the operating state. The dual-voltage design increases flexibility when integrating into existing systems. The robust construction and compliance with EMC standards (e.g. IEC/EN 61000-4-2 to -4-6) ensure reliable operation in industrial environments with electromagnetic interference. The operating altitude is limited to ≤ 2000 m, which is sufficient for most industrial applications. The vibration resistance and climatic resistance (20/060/04 according to IEC/EN 60068-1) ensure functionality under dynamic and climatic stresses.

Approvals and Markings
The device carries the UKCA approval, confirming compliance with British safety and environmental requirements. Radio frequency interference suppression meets Class B limits according to EN 55011, ensuring low emission of interference. The rated impulse withstand voltage is 4 kV at pollution degree 2 according to IEC 60664-1.

Technical data
Enclosure designSwitch cabinet
Output contacts2 NO contacts
Time function(s)Star-Delta-Timer
Time range0,5 s - 100 s
Width22,5 mm
TypeBC 7936N
Variant
Contact changeover time100 ms
Contact equipping1 NO contact fleeting on, 1 NO contact on delay
Nominal voltageAC/DC 24 V + AC 220 - 240 V
Time range max. value10 s
Approvals and MarkingsUKCA


Product data sheet
Datasheet for Dold 0052934, EAN: 4030641529345
