Dold 0052922 BC7933N.81 AC110-240V 1.5-30M time relay delayed return

Your rating:
Average rating
product review for Dold 0052922 BC7933N.81 AC110-240V 1.5-30M time relay delayed return
( 4.5 / 5 ) 10 ratings
Dold 0052922

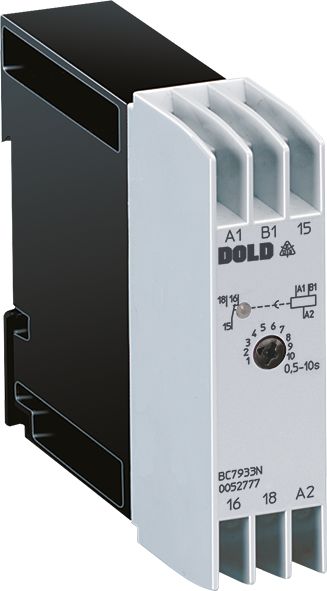

This image may differ from the desired article.
78,18 EUR
( 93,03 EUR incl. VAT )
≈ £65.44  |  ≈ $85.92
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052922 BC7933N.81 AC110-240V 1.5-30M time relay delayed return
Datasheet:file_download Download
Lieske Part No.:1312796
Mfg Part No: 0052922
UPC/EAN: 4030641529222
Weight:0.145 kg
Type:BC7933N.81 AC110-240V 1,5-30M
Graduated prices net
From piecesPrice per pieces
677,59 EUR
1277,01 EUR
2476,42 EUR
3675,83 EUR

Product information for Dold 0052922:

The Dold time relay BC7933N.81 is an industrial-grade, delayed-release relay with control signal, designed for use in enclosures. It features a rated voltage of AC 110 to 240 V and allows for an adjustable delay time of 1.5 to 30 minutes. The width is 22.5 mm, making it suitable for standard control panels. The device is specified according to EN 61812-1 and is used for time-dependent control in industrial systems, for example, to delay the switching-off process after a control signal.

Applications
This time relay is designed for applications requiring delayed switching-off after a control signal. Typical uses include controlling motors, pumps, lighting systems, or other electrical loads where immediate switching-off is not desired. The delayed release ensures that the output contact remains active for a set duration after the control signal ends. The operating voltage of AC 110 to 240 V makes the device suitable for a wide range of installations in Europe and other regions with corresponding mains voltage.

Functions and Equipment in Detail
The device features a changeover contact as output, rated for AC 250 V. The contact configuration allows control of loads with a thermal current up to 4 A. The contact materials are made of AgNi, ensuring high switching durability and low wear. The LED indicator shows the status of the output relay – the yellow LED lights up when the contact is activated. Control is via input B1, which operates at the rated voltage; a potential-free control contact is not required. The minimum switching-on time is 15 ms for alternating current, ensuring reliable actuation.

Technology Explained Simply
The delayed release is continuously adjustable and can be set between 1.5 and 30 minutes. The timing function is designed so that the output contact remains closed for the set duration after the control signal ends. The reset time after the delay period is less than 50 ms, enabling quick response to new control signals. Voltage influence values are below 1 %, and temperature influence is maximum 0.25 % per Kelvin, ensuring high accuracy even with temperature fluctuations. Repeatability is ≤ 0.5 % + 10 ms, sufficient for precise control tasks.

Compatibility and Accessories
The device is intended for use in enclosures and can be connected with standard terminals. Connection options include 2 x 1.5 mm² stranded wire with sleeve and plastic collar according to DIN 46228-1/-2/-3/-4, or 2 x 2.5 mm² stranded wire with sleeve according to DIN 46228-1/-2/-3. The operating voltage of AC 110 to 240 V allows use in various industrial environments. EMC requirements according to IEC/EN 61000-4-2 to -4-6 are met, ensuring immunity against electromagnetic interference. Overvoltage category III and pollution degree 2 (basic insulation) make the device suitable for industrial applications.

Mounting and Installation
Mounting is done in an enclosure, with the width of 22.5 mm allowing standard installation on DIN rails. The terminal connections are designed for the specified wire cross-sections, and the use of sleeves and plastic collars is recommended. The operating voltage must be continuously applied to A1-A2 to ensure proper relay function. For auxiliary voltages below AC 180 V, input B1 must not be operated until 150 ms after voltage application to ensure proper engagement of the output relay.

Advantages in Operation
The time relay offers high reliability with a mechanical life of 10⁸ switching operations and an electrical life of 1.5 x 10⁵ switching operations at 1 A and AC 230 V. The short reset time and high repeatability enable precise and fast control sequences. The integrated LED indicator simplifies diagnosis and maintenance, as the status of the output relay can be visually monitored. The operating temperature range of -20 to +60 °C and storage temperature of -25 to +70 °C make the device suitable for a wide range of operating conditions. The permissible switching frequency is 36,000 switching operations per hour, sufficient for intensive operating conditions.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)Off-delay, with control signal
Width22,5 mm
TypeBC 7933N
Variant
Contact equipping1 changeover contact
Nominal voltageAC 110 - 240 V
Time range1,5 - 30 min
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0052922, EAN: 4030641529222

Questions & answers

What is the delivery time of Dold 0052922 BC7933N.81 AC110-240V 1.5-30M time relay delayed return ?

The article Dold 0052922 BC7933N.81 AC110-240V 1.5-30M time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052922 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052922 BC7933N.81 AC110-240V 1.5-30M time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0052922 BC7933N.81 AC110-240V 1.5-30M time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0052922 BC7933N.81 AC110-240V 1.5-30M time relay delayed return we can offer you a price of 77,59 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
