Dold 0052913 BC7933N.81 AC42-48V/DC48V 15-300S time relay delayed return

Your rating:
Average rating
product review for Dold 0052913 BC7933N.81 AC42-48V/DC48V 15-300S time relay delayed return
( 4.7 / 5 ) 3 ratings
Dold 0052913

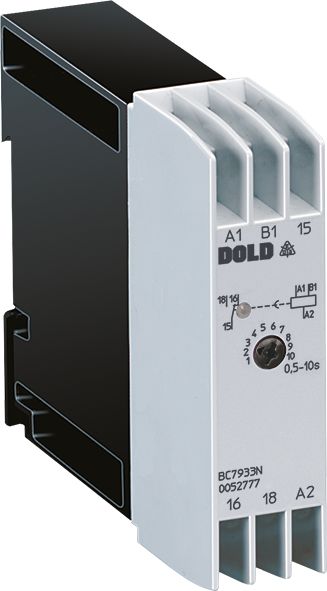

This image may differ from the desired article.
78,18 EUR 78,72 EUR
( 93,03 EUR incl. VAT )
≈ £65.44  |  ≈ $85.92
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052913 BC7933N.81 AC42-48V/DC48V 15-300S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:493898
Mfg Part No: 0052913
UPC/EAN: 4030641529130
Weight:0.145 kg
Type:BC7933N.81 AC42-48V/DC48V 15-300S
Graduated prices net
From piecesPrice per pieces
677,59 EUR
1277,01 EUR
2476,42 EUR
3675,83 EUR

Product information for Dold 0052913:

The Dold time relay BC7933N.81 is an industrial-grade, delayed-release time relay with control signal, designed for use in enclosures. It features a rated voltage of AC 42–48 V or DC 48 V and allows for an adjustable delay time ranging from 15 to 300 seconds. The function operates according to EN 61812-1, with the delayed release being continuously adjustable. The device is designed for continuous operation and has a width of 22.5 mm, making it suitable for standard control panels.

Applications
This time relay is used in industrial control systems where delayed switching-off operations are required, for example in motor control, lighting systems, or safety functions. The delayed release ensures that the output contact remains active for a defined period after the control signal is switched off. This is useful for gently shutting down mechanical loads or ensuring that subsequent processes are completed before the next step begins.

Functions and Equipment in Detail
The device features a changeover contact as the output contact, consisting of a close contact (15–18) and an open contact (15–16). The contact position is indicated by a yellow LED, which lights up when the output relay is activated. The control input B1 can be operated directly with the rated voltage, eliminating the need for a potential-free control contact. The wiring connection options include 2 x 1.5 mm² stranded wire with sleeve and plastic collar according to DIN 46228-1/-2/-3/-4 or 2 x 2.5 mm² stranded wire with sleeve according to DIN 46228-1/-2/-3.

Technology Explained Simply
The delayed release is achieved through an electronic timing circuit, which maintains the output contact for the set duration after the control signal is switched off. The time can be continuously adjusted within the range of 15 to 300 seconds. The reset time after the delay period ends is less than 50 ms, enabling rapid reactivation. The repeat accuracy is ≤ 0.5 % + 10 ms, ensuring high precision during repeated switching operations. Voltage influence values are ≤ 1 %, and temperature influence values are ≤ 0.25 %/K, ensuring stability under varying operating conditions.

Compatibility and Accessories
The device is designed for operating voltages in the range of AC 42–48 V and DC 48 V. It can also be operated with an operating voltage of AC 110–240 V, provided that the rated voltage for control (B1) remains within the range of AC 42–48 V or DC 48 V. The contact configuration is limited to a changeover contact, with a rated operating voltage of AC 250 V. The thermal current rating (Ith) is 4 A. The switching capacity according to AC 15 is 3 A/AC 230 V for the close contact and 1 A/AC 230 V for the open contact.

Mounting and Installation
The time relay is mounted in enclosures and requires a continuously applied operating voltage at terminals A1–A2. For operating voltages below AC 180 V, the control input B1 must be energized only after at least 150 ms following the application of auxiliary voltage, to ensure proper engagement of the output relay. Mounting is done via terminals designed for the specified wire cross-sections.

Operational Advantages
The continuous adjustability of the delay time and high repeat accuracy enable precise control in industrial applications. The integrated LED indicator simplifies diagnosis and maintenance. The short reset time and high mechanical life (10⁸ switching operations) ensure reliable and low-maintenance operation. EMC tests according to IEC/EN 61000-4-2 to -4-6 guarantee robust performance in electromagnetically noisy environments. The device is designed for operating temperatures from -20 to +60 °C and relative humidity of 95 % at 40 °C, enabling broad applicability in industrial environments.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)Off-delay, with control signal
Width22,5 mm
TypeBC 7933N
Variant
Contact equipping1 changeover contact
Nominal voltageAC 42-48 V / DC 48 V
Time range15 - 300 s
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0052913, EAN: 4030641529130

Questions & answers

What is the delivery time of Dold 0052913 BC7933N.81 AC42-48V/DC48V 15-300S time relay delayed return ?

The article Dold 0052913 BC7933N.81 AC42-48V/DC48V 15-300S time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052913 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052913 BC7933N.81 AC42-48V/DC48V 15-300S time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0052913 BC7933N.81 AC42-48V/DC48V 15-300S time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0052913 BC7933N.81 AC42-48V/DC48V 15-300S time relay delayed return we can offer you a price of 77,59 EUR per piece. The more you buy, the cheaper the article will be.
