Dold 0052910 BC7933N.81 AC42-48V/DC48V 0.15-3S time relay delayed return

Your rating:
Average rating
product review for Dold 0052910 BC7933N.81 AC42-48V/DC48V 0.15-3S time relay delayed return
( 5 / 5 ) 2 ratings

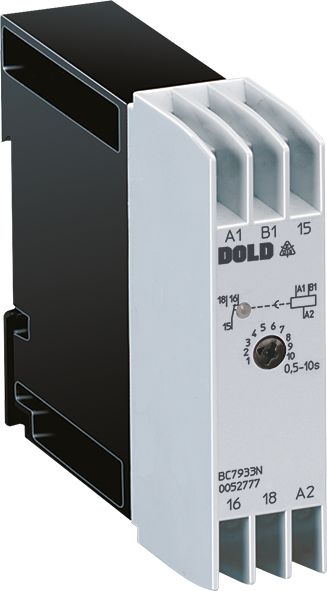

Dold 0052910
This image may differ from the desired article.
78,18 EUR 78,72 EUR
( 93,03 EUR incl. VAT )
≈ £65.44  |  ≈ $85.92
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052910 BC7933N.81 AC42-48V/DC48V 0.15-3S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:493894
Mfg Part No: 0052910
UPC/EAN: 4030641529109
Weight:0.145 kg
Type:BC7933N.81 AC42-48V/DC48V 0,15-3S
Graduated prices net
From piecesPrice per pieces
677,59 EUR
1277,01 EUR
2476,42 EUR
3675,83 EUR

Product information for Dold 0052910:

The Dold time relay BC7933N.81 is an industrial-grade, delayed-release time relay with control signal, designed for use in enclosures. It features a rated voltage of AC 42–48 V or DC 48 V and allows for an adjustable delay time of 0.15 to 3 seconds. The function is specified according to EN 61812-1, ensuring reliability and interoperability in industrial control systems. The device is designed for continuous operation and is suitable for time-controlled processes in plants, where the output returns delayed after deactivation of the control signal.

Applications
This time relay is used in industrial control systems where a time-delayed reset is required after deactivation of a control signal. Typical applications include control of drives, lighting systems, pumps, or valves, where a controlled shutdown process is necessary. The width of 22.5 mm enables compact mounting in standard DIN-format control panels.

Functions and Equipment in Detail
The device features a changeover contact as output contact, equipped with an AgNi contact material, ensuring high switching life and low contact resistance. The contact position is indicated by a yellow LED, which lights up when the output relay is activated (contacts 15–18 closed). Control is performed via control input B1, which is operated with the rated voltage — a potential-free control contact is not required. The time delay is continuously adjustable and can be varied within the range of 0.15 to 3 seconds.

Technology Explained Simply
The delayed release means that the output contact does not return immediately after deactivation of the control signal, but only after a set delay time. This enables controlled shutdown of loads. The operating voltage at A1–A2 must be continuously present, while the control signal is input via B1/A2. The reset time after completion of the delay is less than 50 ms, ensuring fast repeatability of the function. The time accuracy is ≤ 0.5 % + 10 ms, making the function suitable for precise control applications.

Compatibility and Accessories
The relay is designed for operating voltages in the range of AC 42–48 V and DC 48 V. It is equipped with a control input B1, which is operated with the rated voltage. The terminal clamps allow connection of stranded wires with 2 x 1.5 mm² (with ferrule and plastic sleeve DIN 46228-1/-2/-3/-4) or 2 x 2.5 mm² (with ferrule DIN 46228-1/-2/-3). The switching capacity is up to 3 A at AC 230 V for closing contacts and 1 A for opening contacts according to AC 15. The maximum short-circuit withstand requires a maximum fuse rating of 4 A gG/gL.

Mounting and Installation
The device is mounted in enclosures and is designed for a width of 22.5 mm. The terminals are designed for connection of stranded wires with the specified cross-sections. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature ranges from -25 °C to +70 °C. The relative humidity may reach up to 95 % at 40 °C. The operating altitude is limited to a maximum of 2000 m above sea level.

Advantages in Operation
The time relay offers a high switching life (mechanical 10⁸ switching operations, electrical 1.5 x 10⁵ switching operations at 1 A/AC 230 V) and precise time control. The LED indicator enables visual monitoring of the contact status. The use of a control signal with rated voltage simplifies integration into existing control systems, as no additional potential-free contact is required. The EMC coverage according to IEC/EN 61000-4-2 to -4-6 ensures robust operation in electromagnetically stressed environments.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)Off-delay, with control signal
Width22,5 mm
TypeBC 7933N
Variant
Contact equipping1 changeover contact
Nominal voltageAC 42-48 V / DC 48 V
Time range0,15 - 3 s
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0052910, EAN: 4030641529109

Questions & answers

What is the delivery time of Dold 0052910 BC7933N.81 AC42-48V/DC48V 0.15-3S time relay delayed return ?

The article Dold 0052910 BC7933N.81 AC42-48V/DC48V 0.15-3S time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052910 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052910 BC7933N.81 AC42-48V/DC48V 0.15-3S time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0052910 BC7933N.81 AC42-48V/DC48V 0.15-3S time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0052910 BC7933N.81 AC42-48V/DC48V 0.15-3S time relay delayed return we can offer you a price of 77,59 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
