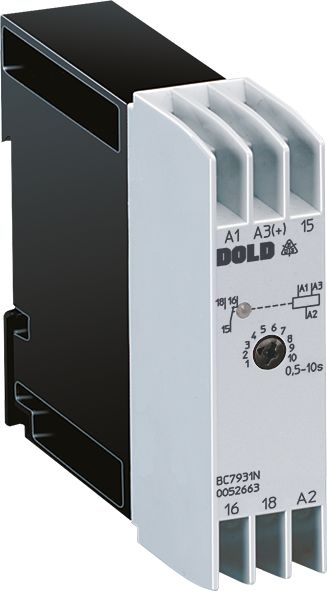

Dold 0052663 BC7931N.71 AC/DC24V+AC230V 0.5-10S wipe relay
|
65,64 EUR |
|||||||||||
|
( 78,11 EUR incl. VAT ) ≈ £54.94 | ≈ $72.14 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 162271 | ||||||||||
| Mfg Part No: | 0052663 | ||||||||||
| UPC/EAN: | 4030641526634 | ||||||||||
| Weight: | 0.145 kg | ||||||||||
| Type: | BC7931N.71 AC/DC24V+AC230V 0,5-10S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0052663:
Applications
This timer relay is used in systems requiring a time-delayed switching function, for example in automation technology, pump control systems, lighting installations, or manufacturing technology. The on-delay timer function means that the contact remains closed for a pre-set time period after the operating voltage is applied, and then opens again. This enables controlled, time-based activation of loads.
Functions and Features in Detail
The device features 1 changeover contact as the output contact, designed for switching operations with a rated operating voltage of AC 250 V. The contact materials are made of AgNi, ensuring high switching durability and corrosion resistance. The LED indicator signals the contact position – it lights up when the output relay contact (15–18) is closed. The wire connection terminals are designed as box terminals and allow connection of stranded wires with cross-sections up to 2 x 2.5 mm² (with sleeve DIN 46228-1/-2/-3) or 2 x 1.5 mm² (with sleeve and plastic collar DIN 46228-1/-2/-3/-4). The wire stripping length is 10 mm, and the tightening torques for the terminal screws (M 3.5) are 0.8 Nm.
Technology Explained Simply
The on-delay timer function is implemented via an electronic timing circuit that triggers a defined time delay after the operating voltage is applied. The time can be continuously adjusted, with the setting scaled by a 1:20 ratio. The reset time is ≤ 100 ms, ensuring the device is quickly ready for the next operation after switching. The voltage influence is < 1 % across the entire voltage range, ensuring stable operation even with voltage fluctuations. The temperature dependence is less than 0.25 % per Kelvin, ensuring reliability at different ambient temperatures.
Compatibility and Accessories
The timer relay is designed for use in enclosures and is mounted on a DIN rail (IEC/EN 60715). It features a protection rating IP 40 (housing) and IP 40 (terminals), making it suitable for use in enclosed control systems. The rated frequency is 50/60 Hz, and the rated consumption is 4 VA (AC) or 0.4 W (DC). The release voltage is 15 % of the rated voltage, ensuring secure reset of the relay.
Mounting and Installation
Mounting is done by securing the device to a DIN rail inside the enclosure. Cable connections are made via the box terminals, ensuring compliance with specified cross-sections and tightening torques. The terminals are clearly labeled (A1, A2, A3, 15, 16, 18), ensuring unambiguous assignment of wires. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature ranges from -25 °C to +70 °C. The maximum operating altitude is 2000 m above sea level.
Operational Advantages
The device features a high electrical life (1.5 x 10⁵ switching operations at 1 A/AC 230 V) and a mechanical life of 10⁸ switching operations. The permissible switching frequency is 36,000 switching operations per hour, suitable for high-load applications. The short-circuit resistance is ensured by a maximum fuse rating of 4 A gG/gL. EMC tests according to IEC/EN 61000-4-2 to -4-5 demonstrate high immunity to electromagnetic interference. The insulation test voltage is 2.5 kV (1 min), and the overvoltage category is III, ensuring safe insulation even under transient voltage surges.
| Technical data | |
| Enclosure design | Switch cabinet |
| Output contacts | 1 C/O contact |
| Time function(s) | Fleeting on make |
| Width | 22,5 mm |
| Type | BC 7931N |
| Variant | |
| Contact equipping | 1 changeover contact |
| Nominal voltage | AC/DC 24 V + AC 230 V |
| Time range | 0,5 - 10 s |
| Variant | Fleeting action |
