Dold 0052640 BC7930N.81 AC/DC24V+AC230V 0.15-3S time relay delayed operation

Your rating:
Average rating
product review for Dold 0052640 BC7930N.81 AC/DC24V+AC230V 0.15-3S time relay delayed operation
( 4.7 / 5 ) 6 ratings

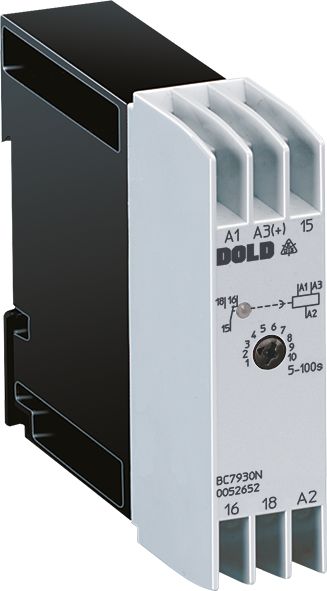

Dold 0052640
This image may differ from the desired article.
64,08 EUR
( 76,26 EUR incl. VAT )
≈ £53.63  |  ≈ $70.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052640 BC7930N.81 AC/DC24V+AC230V 0.15-3S time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:1583543
Mfg Part No: 0052640
UPC/EAN: 4030641526405
Weight:0.145 kg
Type:BC7930N.81 AC/DC24V+AC230V 0,15-3S
Graduated prices net
From piecesPrice per pieces
661,68 EUR
1259,27 EUR
2456,87 EUR
3654,47 EUR

Product information for Dold 0052640:

The Dold time relay BC7930N.81 is a delayed-on time relay for industrial control applications. It features a rated voltage of AC/DC 24 V and AC 230 V, with the operating voltage connected at terminals A3-A2 (24 V) and A1-A2 (230 V). The time delay in this model ranges from 0.15 to 3 seconds, making it suitable for applications requiring short delay times. The device is designed for use in enclosures and has a width of 22.5 mm, making it suitable for standard DIN rail mounting. The contact configuration includes a changeover contact, rated for an operating voltage of AC 250 V. The contact material is AgNi, ensuring high switching durability and corrosion resistance.

Applications
The time relay is used in industrial control systems where delayed activation of switching operations is required. Typical applications include delaying motor start-up sequences, securing switching operations in production plants, or controlling lighting systems with time-based sequences. The delayed-on function means that the output contact only switches after the set delay time has elapsed, once the operating voltage is applied.

Functions and Features in Detail
The device features an LED indicator that lights up when the output relay is activated, i.e., when contact 15-18 is closed. This enables visual monitoring of the operating status. The time delay is continuously adjustable within the range of 0.15 to 3 seconds, with a repeatability accuracy of ≤ 0.5 % + 10 ms. The reset time is ≤ 100 ms, allowing for rapid reset after switching off the operating voltage. Voltage influence values are ≤ 1 %, and temperature influence is ≤ 0.25 %/K, ensuring high stability under varying operating conditions.

Technical Explanation
The relay operates according to standard EN 61812-1, which applies to time relays. The operating voltage is supplied via two separate inputs (A1/A2 for 230 V and A3/A2 for 24 V), enabling flexible integration into existing circuits. The time delay is implemented via an internal timing circuit controlled by a continuously adjustable potentiometer-like mechanism. The output contacts are configured as changeover contacts, allowing them to be used as either make or break contacts. The mechanical life is 10^8 switching operations, and the electrical life at 1 A and AC 230 V is 1.5 × 10^5 switching operations.

Compatibility and Accessories
The device is designed for mounting on DIN rail according to IEC/EN 60715. The terminal clamps allow connection of 1 x 4 mm² solid wire, 1 x 2.5 mm² stranded wire with ferrule and plastic collar, or 2 x 1.5 mm² stranded wire with ferrule DIN 46228-1/-2/-3/-4. The wire stripping length is 10 mm. The maximum permissible switching frequency is 36,000 switching operations per hour. Short-circuit protection is ensured by a maximum fuse rating of 4 A gG/gL.

Mounting and Installation
Mounting is performed using quick fastening on a DIN rail. The terminals are equipped with M 3.5 plus-minus screws, to be tightened with a torque of 0.8 Nm. The terminal block provides secure wire protection. The device dimensions are 22.5 mm (width) × 84 mm (height) × 97 mm (depth). The net weight is 80 g. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +70 °C. The relative humidity is up to 95 % at 40 °C. The operating altitude is limited to ≤ 2000 m.

Operational Advantages
The time relay offers high repeatability accuracy and low dependence on voltage and temperature fluctuations. The LED indicator enables easy status monitoring. The dual-voltage configuration allows flexible integration into existing circuits. The robust construction made of thermoplastic with V0 flammability rating according to UL Subject 94 ensures high vibration and climate resistance. The enclosure protection rating is IP 40, and the terminals are rated IP 40, suitable for use in enclosed enclosures. EMC tests according to IEC/EN 61000-4-2 to -4-5 ensure good immunity against electromagnetic interference.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)On-delay
Width22,5 mm
TypeBC 7930N
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 24 V + AC 230 V
Time range0,15 - 3 s


Product data sheet
Datasheet for Dold 0052640, EAN: 4030641526405

Questions & answers

What is the delivery time of Dold 0052640 BC7930N.81 AC/DC24V+AC230V 0.15-3S time relay delayed operation ?

The article Dold 0052640 BC7930N.81 AC/DC24V+AC230V 0.15-3S time relay delayed operation is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052640 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052640 BC7930N.81 AC/DC24V+AC230V 0.15-3S time relay delayed operation always at the best possible price. We can give you a discount of 2% on Dold 0052640 BC7930N.81 AC/DC24V+AC230V 0.15-3S time relay delayed operation if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0052640 BC7930N.81 AC/DC24V+AC230V 0.15-3S time relay delayed operation we can offer you a price of 61,68 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
