Dold 0052505 IP9075.12/010 AC50...400Hz 380-440V fuse monitoring

Your rating:
Average rating
product review for Dold 0052505 IP9075.12/010 AC50...400Hz 380-440V fuse monitoring
( 4.8 / 5 ) 5 ratings

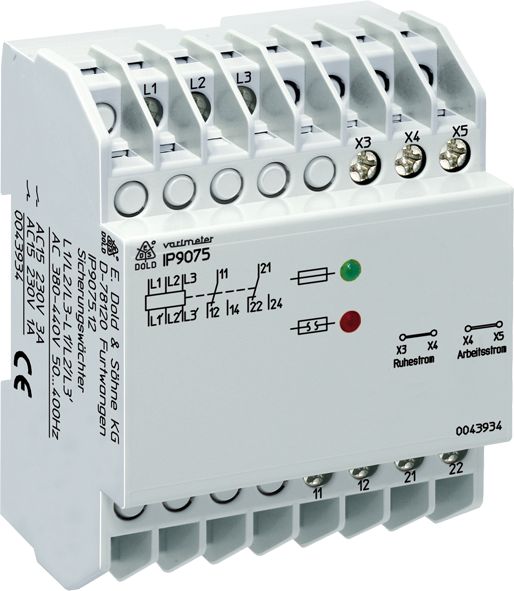

Dold 0052505
This image may differ from the desired article.
228,56 EUR
( 271,99 EUR incl. VAT )
≈ £191.30  |  ≈ $251.19
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052505 IP9075.12/010 AC50...400Hz 380-440V fuse monitoring
Datasheet:file_download Download
Lieske Part No.:1583176
Mfg Part No: 0052505
UPC/EAN: 4030641525057
Weight:0.279 kg
Type:IP9075.12/010 AC50...400HZ 380-440V
Graduated prices net
From piecesPrice per pieces
5226,85 EUR
10225,13 EUR
15223,42 EUR
20221,70 EUR

Product information for Dold 0052505:

The Dold fuse monitor type IP9075.12/010 AC50...400HZ 380-440V is an industrial monitoring switch for continuous checking of the integrity of up to three load fuses in three-phase networks. The device enables early detection of blown fuses, even when the connected loads are switched off, thus preventing costly damage caused by unintended operating conditions. It is specifically designed for use in installation and industrial distribution systems, with the housing form intended for installation distributors according to DIN 43880.

Applications

The fuse monitor is used in industrial and commercial electrical installations where the reliability of power supply is crucial. Typical applications include monitoring three-phase motors, automatic disconnection in case of failure of one or more phase fuses, and lockout of start-up to prevent damage caused by incomplete phase supply. The devices are designed for networks with a rated voltage of AC 380 to 440 V and a frequency of 50 to 400 Hz, with a maximum measurement range up to 690 V. Standard measurement ranges are 3 AC 380 to 415 V.

Functions and Equipment in Detail

The device features two changeover contacts as output contacts, which are either activated (operating current principle) or deactivated (resting current principle) in case of fault, depending on programming. This setting can be adjusted via programming terminals X3, X4, and X5. Additionally, the memory behavior can be programmed via terminals X1 and X2, where a bridge between X1 and X2 enables automatic reset. Indication is provided by two LEDs: a green LED indicates intact fuses, while a red LED signals a fuse failure.

Technology Explained Simply

The measurement paths of the fuse monitor have an internal resistance in the megohm range, ensuring compliance with touch voltage regulations (internal resistance > 2000 Ohm/V), even if a fuse is missing or defective. The devices comply with IEC/EN 60255-1 and can be used with all common fuse types and sizes. Detection is independent of rotation direction and is reliable even in unbalanced networks, with harmonics, or with regenerative motors. The response time is shorter than that of conventional motor protection switches.

Compatibility and Accessories

The fuse monitor is designed for use in three-phase networks up to 3 AC 690 V and can be combined with various fuse types. The programming terminals X3, X4, and X5 allow selection between operating current and resting current principle, with the maximum cable length for these terminals being 3 m. The devices are available in two housing forms: I-type with 59 mm depth and bottom-mounted terminals, and S-type with 98 mm depth and top-mounted terminals. The housing width is 70 mm.

Mounting and Installation

Mounting is carried out in installation or industrial distributors according to DIN 43880. The terminals are arranged at the bottom, enabling easy integration into existing control systems. Terminals L1, L2, L3 are for connection before the fuses, L1', L2', L3' after the fuses. Programming terminals X1, X2, X3, X4, X5 are intended for setting the operating mode. De-energization requires switching off the upstream main switch.

Operational Advantages

Early detection of fuse failures increases system availability and prevents damage that could result from undetected defects. Programmable functions such as operating current/resting current principle and memory behavior allow flexible adaptation to different requirements. The clear LED indication simplifies diagnosis and maintenance. Reliability in unbalanced networks and with regenerative motors makes the device suitable even for demanding industrial environments.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Measuring range max.690 V
Output contacts2 C/O contacts
Standard measuring range3 AC 380 - 415 V
Width70 mm
TypeIP 9075
Variant
Contact equipping2 changeover contacts
Nominal voltageAC 380 - 440 V 50 - 400 Hz
VariantEnergized / De-energized on trip programmable. Manual reset programmable


Product data sheet
Datasheet for Dold 0052505, EAN: 4030641525057

Questions & answers

What is the delivery time of Dold 0052505 IP9075.12/010 AC50...400Hz 380-440V fuse monitoring ?

The article Dold 0052505 IP9075.12/010 AC50...400Hz 380-440V fuse monitoring is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052505 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052505 IP9075.12/010 AC50...400Hz 380-440V fuse monitoring always at the best possible price. We can give you a discount of 2% on Dold 0052505 IP9075.12/010 AC50...400Hz 380-440V fuse monitoring if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0052505 IP9075.12/010 AC50...400Hz 380-440V fuse monitoring we can offer you a price of 226,85 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
