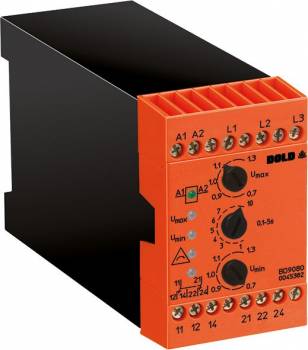

Dold 0051662 BD9080.12/001 3AC400V AC/DC24-80V phase monitor Tv=0.1-5s

Your rating:
Average rating
product review for Dold 0051662 BD9080.12/001 3AC400V AC/DC24-80V phase monitor Tv=0.1-5s
( 4.7 / 5 ) 11 ratings
Dold 0051662
This image may differ from the desired article.
435,95 EUR
( 518,78 EUR incl. VAT )
≈ £364.89  |  ≈ $479.11
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0051662 BD9080.12/001 3AC400V AC/DC24-80V phase monitor Tv=0.1-5s
Datasheet:file_download Download
Lieske Part No.:1313016
Mfg Part No: 0051662
UPC/EAN: 4030641516628
Weight:0.35 kg
Type:BD9080.12/001 3AC400V AC/DC24-80V
Graduated prices net
From piecesPrice per pieces
4429,41 EUR
8422,87 EUR
12416,33 EUR
16409,79 EUR

Product information for Dold 0051662:

The phase monitor BD9080.12/001 from Dold is an industrial monitoring switch for three-phase AC power networks. It is designed for continuous monitoring of voltage levels, phase sequence, asymmetry, and power failure in systems with nominal voltage 3AC 400 V. The device is designed for use in enclosures and offers a width of 45 mm, making it suitable for standard control panels. The function is based on the operating current principle, where the output relay is activated in the event of a fault to enable a response to disturbances.

Applications

The phase monitor is intended for industrial applications where the reliability of power supply is critical. It is used in systems with electric drives, pumps, compressors, or other machinery that depends on stable three-phase power supply. Early detection of voltage fluctuations, phase failure, or incorrect phase sequence enables preventive maintenance and prevents damage to expensive machinery. Monitoring is performed regardless of whether the network is operated with or without a neutral conductor.

Functions and equipment in detail

The device monitors voltage in the range of 0.7 to 1.3 times the nominal voltage (3AC 400 V), with the range restricted to 0.8 to 1.1 times when using auxiliary voltage from the monitored network. The pickup delay is adjustable between 0.1 and 5 seconds, allowing adaptation to different requirements. The reset delay is also 0.1 to 5 seconds. Asymmetry detection occurs at deviations of ±8 to ±20 % of the pickup voltage, with the fault angle at approximately 120° ±15°. The repeatability is ≤ ±0.5 % of the nominal voltage.

Technology explained clearly

Measurement is performed via arithmetic averaging of multiple half-waves of the rectified phase voltages L1/L2 and L2/L3, with L3 serving as the reference voltage. The current consumption is approximately 0.5 mA per phase L1 and L2, and 0.8 mA for L3. The output contacts consist of two changeover contacts rated for switching operations according to AC 15 (2 A/AC 230 V) and DC 13 (1 A/DC 24 V). The electrical life is approximately 250,000 switching operations at 1 A/AC 230 V, and the mechanical life is at least 50 million switching operations.

Compatibility and accessories

The device is specified according to IEC/EN 60255-1 and meets requirements for monitoring devices in industrial installations. CCC certification is indicated. The maximum measuring voltage is 750 V, with other voltages available upon request. The operating temperature range is -20 °C to +60 °C, and the storage temperature range is also -20 °C to +60 °C. The operating altitude is limited to ≤ 2000 m. The creepage and clearance distances correspond to pollution degree 2, with a rated impulse withstand voltage of 6 kV (auxiliary voltage/measurement input, auxiliary voltage/contacts, measurement input/contacts) and 4 kV (contact/contact) according to IEC 60664-1.

Mounting and installation

The phase monitor is mounted in enclosures and is designed for continuous operation. The connection terminals are provided for phase voltages L1, L2, L3, as well as for auxiliary voltage A1/A2. The output contacts (11–14 and 21–24) are used for signal transmission to external devices. Installation is carried out according to the technical data and instructions in the datasheet, with maximum short-circuit withstand ensured by a fuse with 4 A gG/gL.

Advantages in operation

The integrated LED indicator for auxiliary voltage, overvoltage, undervoltage, asymmetry/phase sequence/power failure, and contact position allows visual recognition of the device status. The adjustable pickup delay enables adaptation to the specific requirements of the installation. Early fault detection reduces downtime and supports preventive maintenance. The high mechanical and electrical life ensures long operational life with minimal maintenance effort.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Measuring range max.750 V
Output contacts2 C/O contacts
Standard measuring range3 AC 400 V
Width45 mm
TypeBD 9080
Operate delayYes
Variant
Auxiliary voltageAC/DC 24 - 80 V
Contact equipping2 changeover contacts
Nominal voltage3AC 400 V
Release delay0,1 - 5 s
Approvals and MarkingsCCC
VariantEnergized on trip


Product data sheet
Datasheet for Dold 0051662, EAN: 4030641516628
