Dold 0050720 BG5924.48 AC230V 50/60Hz emergency stop module

Your rating:
Average rating
product review for Dold 0050720 BG5924.48 AC230V 50/60Hz emergency stop module
( 4.4 / 5 ) 31 ratings
Dold 0050720

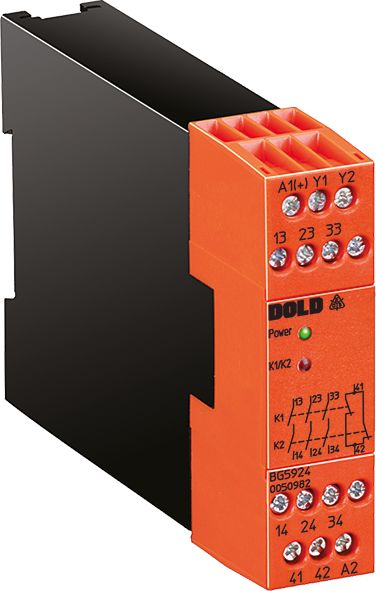

This image may differ from the desired article.
Dold 0050720Dold 0050720
262,23 EUR
( 312,05 EUR incl. VAT )
≈ £219.49  |  ≈ $288.19
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050720 BG5924.48 AC230V 50/60Hz emergency stop module
Datasheet:file_download Download
Lieske Part No.:805913
Mfg Part No: 0050720
UPC/EAN: 4030641507206
Weight:0.237 kg
Type:BG5924.48AC230V50/60HZ
Graduated prices net
From piecesPrice per pieces
4252,40 EUR
8242,56 EUR
12232,73 EUR
16222,90 EUR

Product information for Dold 0050720:

The Dold BG5924.48AC230V50/60HZ is a Not-Aus module of the BG 5924 series, designed for use in safety-oriented applications in industrial environments. It protects personnel and machinery by safely enabling and interrupting a safety circuit. The device is designed for operation at a nominal voltage of AC 230 V at 50/60 Hz and features a width of 22.5 mm, making it suitable for installation in standard rail systems. The contact configuration includes 3 NO contacts and 1 NC contact, with a maximum of 4 NO contacts usable as output contacts. Connections are made via removable screw terminals, enabling flexible and secure connections. The terminals are rated for wires with a cross-section up to 2.5 mm², and the use of ferrules and plastic collars according to DIN 46228-1/-2/-3/-4 is also possible.

Applications
This module is designed for applications requiring high safety integrity, such as in automation technology, machine controls, or combustion systems. It complies with the requirements of EN 50156-1, confirming its suitability for use in combustion systems. The device class allows use in systems requiring Performance Level (PL) e and Category 4 according to EN ISO 13849-1. Additionally, the module meets the requirements for SIL 3 according to IEC/EN 62061 and SIL 3 according to IEC/EN 61508, ensuring reliability in the event of failure. Certifications including TÜV, UKCA, CCC and recognition by UL-Recognized highlight its international applicability.

Functions and Features in Detail
The BG5924.48AC230V50/60HZ allows the safety circuit to be started manually or automatically. Integrated LED indicators show the operating status and the status of channels 1 and 2, simplifying fault diagnosis. A short-circuit detection between terminal Y1 and ground provides additional safety by identifying potential faults in the circuit. Galvanic isolation in the circuit increases safety and prevents interference caused by electrical potential differences. The device is designed for single-channel or dual-channel wiring, allowing flexible integration into various safety architectures.

Technical Explanation
The safety functions of the module are based on a redundant circuit, which maintains the other channel active in case one channel fails, provided the requirements of the respective standard are met. The maximum thermal current rating is 5 A, defining the contact load capacity under normal operating conditions. The width of 22.5 mm allows installation in standard rail systems, facilitating integration into existing control panels. The removable terminal blocks enable quick and secure installation and maintenance without tools.

Compatibility and Accessories
The module is part of the BG 5924 series and can be combined with other devices in this series, particularly with the IP 5924, which has a wider mounting width of 70 mm. The use of accessories such as terminal blocks or special connection cables is possible, provided they comply with the requirements of the respective standards. The mentioned certifications and markings ensure compatibility with various safety standards in Europe and internationally.

Mounting and Installation
Mounting is done in standard rail systems, with the width of 22.5 mm ensuring direct compatibility. The removable screw terminals allow for easy and secure connection of wires. The terminals are rated for wires up to 2.5 mm², and the use of ferrules and plastic collars according to DIN 46228-1/-2/-3/-4 is recommended. Installation must follow the manufacturer’s technical instructions, with correct wiring and adherence to safety regulations being critical.

Operational Advantages
The module offers high safety integrity by meeting the standards PL e / Cat. 4 and SIL 3, making it suitable for critical applications. The integrated LED indicators and short-circuit detection simplify maintenance and fault diagnosis. Galvanic isolation in the circuit increases electromagnetic compatibility and safety. The flexible wiring options (single- or dual-channel) and compact design enable easy integration into existing systems. The certifications TÜV, UKCA, CCC, and UL-Recognized ensure international usability and market access in various regions.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width22,5 mm
TypeBG 5924
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageAC 230 V 50/60 Hz
Approvals and MarkingsTÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0050720, EAN: 4030641507206
